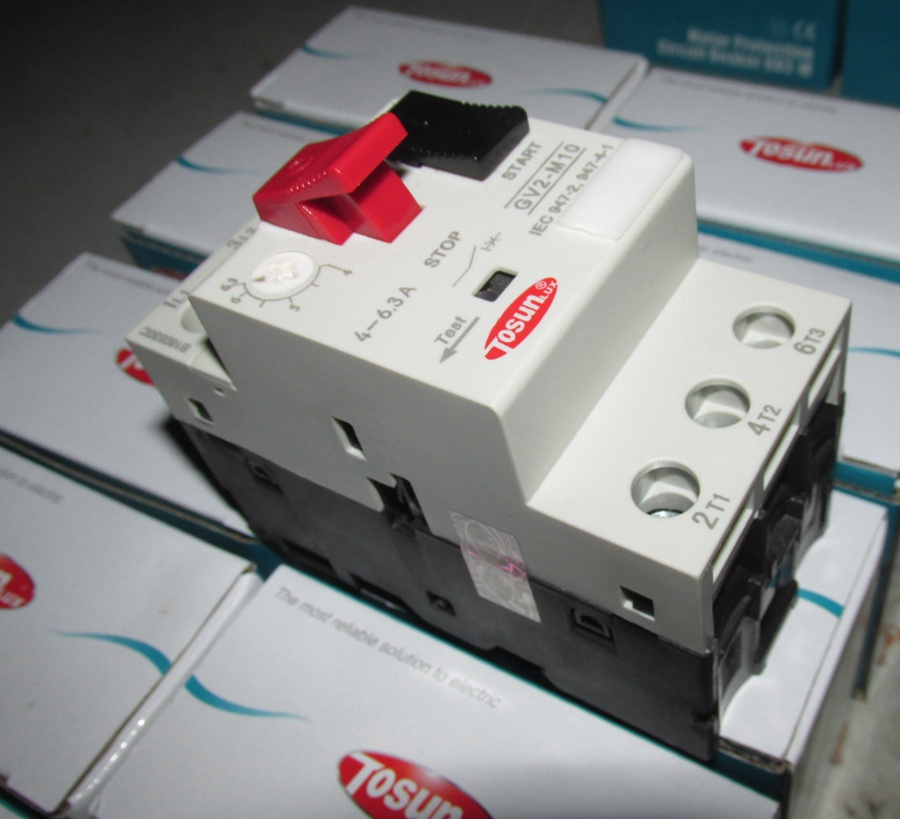

Gv2 Motor Protection Circuit Breaker

Name: Gv2 Motor Protection Circuit Breaker
Brand: all-electronics-online.com
SKU: 754880975
Availability: InStock
Rating: 4.3 (65 reviews)

Price:	US $ 5-26/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	50/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	MP2
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Motor Power:	up to 63A at 690 VAC
Mounting Mode:	by Clips / Screws
Mounting Support:	Rail
Mounting Position:	Horizontal / Vertical
Control Type:	Push Button
Thermal Protection Adjustment Range:	0.1-80A
Model:	MP2
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Manual Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Poles Number:	3
Certification:	CE
Structure:	MPCB
Function:	Overload, Short-Circuit

Product Description

APPLICATION

MP Motor Protection Circuit Breaker MPCB is mainly used for the overload and short circuit protection of the motor in AC 50/60 Hz,up to 660V, 0.1-80A power circuit, as a full-voltage starter to start and cut off the motor, under the AC3 load or for the overload and short circuit protection of the circuit and power equipment in the power distribution network.

SPECIFICATION

Type	Rated standard power of 3-phase motors 50/60 Hz in category AC-3						Setting Range (A)
Type	220V	380V	415V	440V	500V	660V
	KW	KW	KW	KW	KW	KW
MP2-M01	-	-	-	-	-	-	0.1-0.16
MP2-M02	-	-	-	-	-	-	0.16-0.25
MP2-M03	-	-	-	-	-	-	0.25-0.4
MP2-M04	-	-	-	-	-	0.37	0.4-0.63
MP2-M05	-	-	-	0.37	0.37	0.55	0.63-1
MP2-M06	-	0.37	-	0.55	0.75	1.1	1-1.6
MP2-M07	0.37	0.75	0.75	1.1	1.1	1.5	1.6-2.5
MP2-M08	0.75	1.5	1.5	1.5	2.2	3	2.5-4
MP2-M10	1.1	2.2	2.2	3	3.7	4	4-6.3
MP2-M14	2.2	4	4	4	5.5	7.5	6-10
MP2-M16	3	5.5	5.5	7.5	7.5	9	9-14
MP2-M20	4	7.5	9	9	9	11	13-18
MP2-M21	5.5	11	11	11	11	15	17-23
MP2-M22	5.5	11	11	11	15	18.5	20-25
MP2-M32	7.5	15	15	15	18.5	26	24-32
MP2-M25	5.5	11	11	11	15	18.5	16-25
MP2-M40	11	18.5	22	22	25	33	25-40
MP2-M63	15	30	33	33	40	55	40-63
MP2-M80	22	40	45	45	55	63	56-80

WHY US?

1. Experince over 24 years.

2. Good source of raw material and reasonable price.

3. A group of professional inspectors monitor quality.

4. Experienced salesmen offer one-to-one service.

5. TUV, SEMKO, CE, CB, ROHS Approval for products.

6. Unique design for packing.

We are one of the most reliable manufacturers and exporters of low tension electrical items and illumination products in China. We have successfully developed and dealt with numerous electrical products in high quality, such as Circuit Breaker, AC Contact, Panel Enclosure, Electrical Accessories for Panel Enclosure, Pushbutton, Switch, Fuse, Meter, Temperature Controller, Cable Tie, Wiring System products as well as illumination items.

· Qualifications and Technological Strength

We possess full line of high-tech production equipment and great strength of technology support besides advanced designing forces powered by the first class engineering teams with super industrial computer systems. Thus, Our products are novel in designs, excellent in workmanship and tope reliable in quality. A lot of our products have obtained "RoHS", "CB", "CE" and "IRAM", and other international quality approvals. The products now are being well sold in more than 82 countries and regions in the world.

· Contact Us Today

We have always pays special attention to protecting the benefits of clients' so that both the clients ans our company are able to gain the maximum benefits from the relations between us. We warmly look forward to establishing, reinforcing and expanding long term fruitful relationship with the reliable clients all over the world.

Let's get busy and pull together to create a better future.
