Gyfta53 Outdoor Optical Cable Optic Fiber Cable
| Price: |
US $ 0.413-0.473/Meter |
| Min Order: |
3000/Meter |
| Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: |
GYFTA53 |
| Laying Method: |
Direct Buried |
| Application: |
Probe |
| Certification: |
ISO9001 |
| Type: |
Sm/mm |
| Sheath Material: |
PE |
Product Description
GYFTA53 Outdoor Optical Cable
Descriptions:

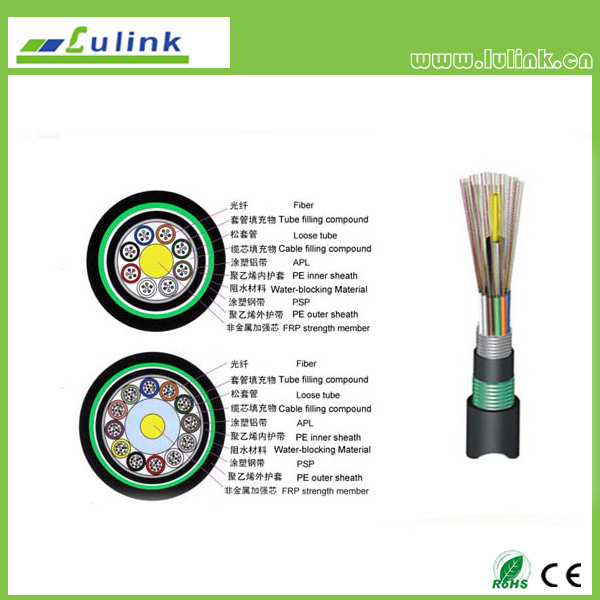

The SM fibers are placed in a loose tube made of a high modulus plastic, the tubes are filled with a water-resistant filling compound, A piece of FIBER REINFORCED PLATIC(FRP) locates in the centre of core as a non-metallic strength member. The tubes ( and fillers ) are stranded around the strength member into a compact and circular cable core. An Aluminum Polyethylene Laminate (APL) is applied around the cable core, which is filled with the filling compound to protect it from water ingress. Then the cable core is covered with a thin PE inner sheath. After the PSP is longitudinally applied over the inner sheath, the cable is completed with a PE outer sheath.
Application:
Laying method: Direct buriedSuitable for long-distance trunk and LAN communication.Fiber type: SM
Characteristics:
Double sheaths constructionAccurate fiber excess length ensures good mechanical and temperature performance.Specially designed compact structure is good at preventing loose tubes from shrinking.High strength loose tube that is hydrolysis resistant and special tube filling compound ensure a citical protection of fiber.Moistureproof and ratproof, crush resistance and flexibility.The following measures are taken to ensure the cable watertight:
Single fiber reinforced plastic as the central strength memberLoose tube filling compound100% cable core fillingAPL moisture barrierPSP enhancing moisture-proofWater-blocking material
Fiber characteristic:
| Fiber style | Unit | SM G652D | MM 50/125 | MM 62.5/125 | MM OM3-300 |
| Condition | nm | 1310/1550 | 850/1300 | 850/1300 | 850/1300 |
| Attenuation | dB/km | 0.36/0.23 | 3.0/1.0 | 3.0/1.0 | 3.0/1.0 |
| Dispersion | 1550nm | Ps (nm ·km) | ≤18 | ----- | ----- | Dispersion |
| 1625nm | Ps (nm ·km) | ≤22 | ----- | ----- | |
| Bandwidth | 850nm | MHZ ·.km | ----- | ≥400 | ≥160 | Bandwidth |
| 1300nm | MHZ. ·km | ----- | ≥800 | ≥500 | |
| Zero dispersion wavelength | nm | ≥1302 ,≤1322 | ------ | ------ | ≥1295 ,≤1320 |
| Zero dispersion slope | nm | ≤0.091 | ------ | ------ | ≤0.11 |
| PMD Maximum Individual Fibre | um | ≤0.2 | ------ | ------ | ------ |
| PMD Design Link Value | Ps/(nm2*km) | ≤0.08 | ------ | ------ | ------ |
| Fibre cutoff wavelength λc | nm | ≥1180 ,≤1330 | ------ | ------ | ------ |
| Cable cutoff wavelengthλcc | nm | ≤1260 | ------- | ------- | ------- |
| Mode field diameter(MFD) | 1310nm | um | 9.2±0.4 | ------ | ------- | ------- |
| 1550nm | um | 10.4±0.8 | ------ | ------- | ------- |
| Numerical Aperture(NA) | | ----- | 0.200±0.015 | 0.275±0.015 | 0.200±0.015 |
| Step(mean of bidirectional measurement) | dB | ≤0.05 | ≤0. 10 | ≤0. 10 | ≤0. 10 |
| Irregularities over fibre length and point discontinuity | dB | ≤0.05 | ≤0. 10 | ≤0. 10 | ≤0. 10 |
| Difference backscatter coefficient | dB/km | ≤0.03 | ≤0. 08 | ≤0. 10 | ≤0. 08 |
| Attenuation uniformity | dB/km | ≤0.01 | ----- | ------ | ----- |
| Core diameter | um | ----- | 50±1.0 | 62.5±2.5 | 50±1.0 |
| Cladding diameter | um | 125.0±0.1 | 125.0±0.1 | 125.0±0.1 | 125.0±0.1 |
| Cladding non-circularity | % | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 |
| Coating diameter | um | 242±7 | 242±7 | 242±7 | 242±7 |
| Coating/cladding concentricity error | um | ≤12.0 | ≤12.0 | ≤12.0 | ≤12.0 |
| Coating non-circularity | % | ≤6.0 | ≤6.0 | ≤6.0 | ≤6.0 |
| Core/cladding concentricity error | um | ≤0.6 | ≤1.5 | ≤1.5 | ≤1.5 |
| Curl(radius) | um | ≤4 | ----- | ----- | ----- |
Technical Requirements:
| Fiber Count | Dia (mm) | Weight (kg/km) | Min.Bending Radius(mm) | Max Tension(N) | Crush Pressure(N/100mm) |
| | | | Dynamic | Static | Short Term | Long Term | Short Term | Long Term |
| 2-48 | 16.8 | 270 | 20×D | 10×D | 3000 | 1000 | 3000 | 1000 |
| 50-96 | 18.9 | 330 | 20×D | 10×D | 3000 | 1000 | 3000 | 1000 |
| 98-120 | 20.0 | 390 | 20×D | 10×D | 3000 | 1000 | 3000 | 1000 |
| 122-144 | 22.3 | 460 | 20×D | 10×D | 3000 | 1000 | 3000 | 1000 |
