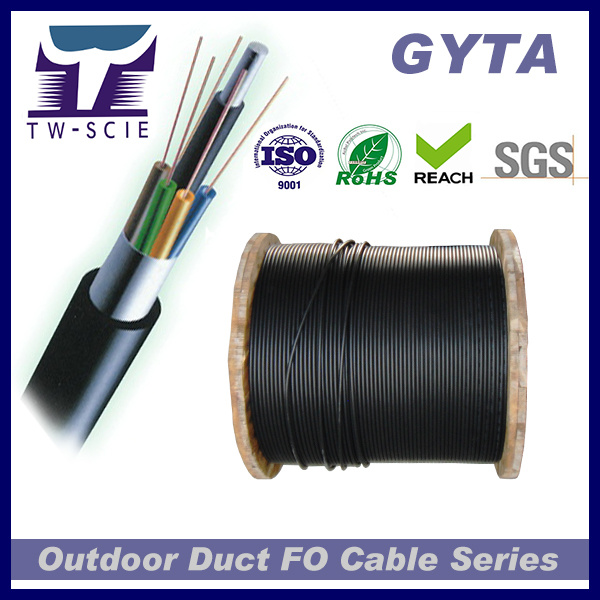

GYTA 24 Core Directly Buried Fiber Optical Cable
| Price: |
US $ 2/Meter |
| Trade Terms: |
FOB,EXW |
| Min Order: |
3000/Meter |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
GYTA |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Outer Sheath Color: |
Black |
| Outer Sheath Material: |
PE |
| Metallic Strengthen Member: |
Steel Wire |
| Filler: |
Filling Compound |
| Single Armour Material: |
Corrugated Aluminium Tape |
| Fiber Count: |
2-288 Core |
| Brand Name Of Fiber: |
Corning ,Yofc,Draka,Fujikura or as Your Requiremen |
| Waterblocking Material: |
Water Blocking Tape or Filling Compound |
| Installation Style: |
Duct, Aerial |
| Loose Tube Material: |
PBT with Jerry |
| Application: |
Communication |
| Type: |
Multi-mode Fiber |
| Connection Structure: |
SC |
| Certification: |
ISO9001 |
| Sheath Material: |
PE |
Product Description
Product Description

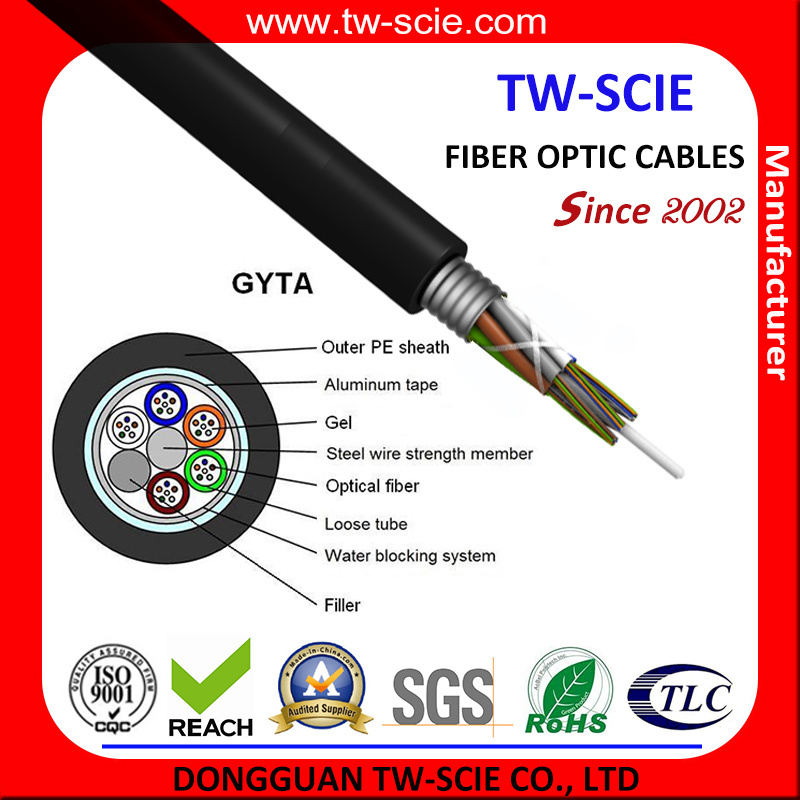

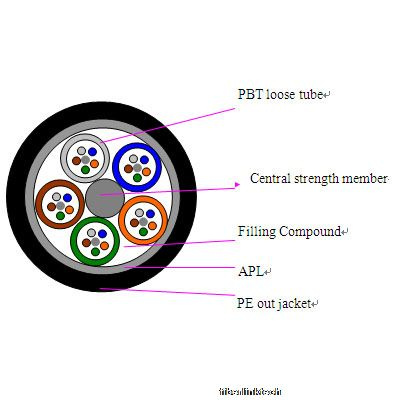

These cables are constructed with a multiple tube filled with water blocking jelly giving very high fiber
count up to 144 fiber stranded fiber optic cable, they form the backbone of high speed networks. They
give flexibility and versatility to networks and can be used for duct, conduits or aerial pipe lines applications.
Metallic / Non metallic FRP strength members in the cable give it good tensile strength, water blocking
jelly in the tube and tape over the tube give it excellent water and moisture resistance. An Aluminium
tape and PE outer sheath give this cable excellent mechanical, ultraviolet and environmental protection.
They come in larger delivery length, so can also be used in long distance communication system, building
interconnections, trunk lines, LAN, distribution networks.
Complied With Or Exceeds Standard
. ITU-T G652.D . ITU-T G651.1 OM1 OM2 OM3 OM4
. ITU-T G657.A . IEC60793-2-10 type A1a.1/A1b OM1/OM2
. IEC60793-2-10 type A1a.2 OM3 . IEC60793-2-10 type A1a.3 OM4
. ISO/IEC 11801 , ISO/IEC 24702 . IEEE 802.3z Gigabit Ethernet
. ANSI/TIA/EIA 568C.3 . ROHS Compliant Directive 2011/65/EU(ROHS2.0)Mechanical & Environmental Characteristics| ITEM | Value |
| Max. Tensile Load (Short Term) | 3000N |
| Max. Tensile Load (Long Term) | 1000N |
| Max. Crush Load (Short Term) | 1000N/100mm |
| Max Crush Load (Long Term) | 300N/100mm |
| UL Fire Rated | OFNR |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Sheath Material | Standard: PE Optional: LSZH or other |
Fiber Number Fiber Color Fiber Number Fiber Color
Fiber 1 Blue Fiber 7 Red
Fiber 2 Orange Fiber 8 Black
Fiber 3 Green Fiber 9 Yellow
Fiber 4 Brown Fiber 10 Violet
Fiber 5 Slate Fiber 11 Rose
Fiber 6 White Fiber 12 Aqua
Note: Fiber Tube color will be followed with same order.
Optical Characteristics
Of all the differences between multimode & singlemode fiber, the most fundamental differences are the
size of the fiber's core and the associated attenuation or loss and bandwidth of the fiber. The smaller the
core diameter, the higher the fiber's bandwidth and the lower the attenuation (loss in dB per kilometer).
The fiber's attenuation and bandwidth are also dependent on wavelength.
Singlemode was for high-speed longdistance transmission and multimode (in either the 50 µm or 62.5 µm
core diameters) was used for lower speed short distance applications. Multimode 50 µm fiber had a lower
cost and higher modal bandwidth than multimode 62.5 µm core fiber. Bandwidth is a measurement of the
data carrying capacity of the fiber. A higher bandwidth fiber carries more data. See table below. | Fiber Type | Max. Attenuation
(dB/km) | Min.Overfill Launch
Bandwidth (Mhz.km) | Min.Gigabit Ethernet
Link Distance (m) |
| Gigabit | 10Gigabit |
| 850nm | 1300nm | 1310nm | 1550nm | 850nm | 1300nm | 850nm | 1300nm | 850nnm |
| OM1 62.5/125µm | ≤2.7 | ≤0.6 | - | - | ≥500 | ≥600 | 275 | 550 | - |
| OM2 50/125µm | ≤2.3 | ≤0.6 | - | - | ≥500 | ≥500 | 750 | 600 | 150 |
| OM3 50/125µm | ≤2.3 | ≤0.6 | - | - | ≥1500 | ≥500 | 1000 | 600 | 300 |
| OM4 50/125µm | ≤2.3 | ≤0.6 | - | - | ≥3500 | ≥500 | 1100 | 600 | 550 |
| G652D 9/125µm | - | - | ≤0.30 | ≤0.18 | - | - | - | - | - |
| G657A 9/125µm | - | - | ≤0.35 | ≤0.21 | - | - | - | - | - |
Part Number: OC-XX-ABCDCL
Ordering Guide| XX | A | B | C | D | CL |
| Cable Type | Jacket | Fiber/Tube | Fiber Count | Fiber Type(FXX) | Jacket Color(CL) |
| GYTA | 1=PVC
2=LSZH
3=PE | 01=01 Fiber/T
02=02 Fiber/T
...
11=11 Fiber/T
12=12 Fiber/T | No. Of Fiber
004F,048F | OM1=62.5/125 OM1
OM2=50/125 OM2
OM3=50/125 OM3
OM4=50/125 OM4
G652D=9/125 G652D
G657A=9/125 G657A | As noted in Color
code chart |
| Part Number | Description |
| OC-GYTA-312144G652DBK | 144 cores Singlemode G652D GYTA Fiber Optic Cable,
12 Fiber/Tube, PE jacket, Black color. |
DONGGUAN TW-SCIE Co., Ltd. is a high-tech enterprise group in China devoted to communications undertakings with our own impoters and exporters rights. Since its founding, high quality products an strong co-operations have enabled the enterprise to stably and rapidly grow into a specialized communication
Manufacturer supplier and engineering service provider the most complete product line-up and specifications in the fiber and cable industry of China.
The enterprise is possessed of a passel of faithful, intelligent, conscientious talents. While bending ourselves to following with the worldwide advanced development and application, we build up cooperation ties with many scientific research academy.
The main products of our enterprise are:
Optical fiber, optical cable, Optical media converter, optical transceiver, optical coupler, optical modem, optical connector, optical distribution frame.
All of the products are widely used in telecom, electric power, railway and other related department, exporting France, India, Singapore, Malaysia.
