GYTA 48 Core Multi Core Single Mode Security Monitoring Cable/ Fiber Optic Cable

Name: GYTA 48 Core Multi Core Single Mode Security Monitoring Cable/ Fiber Optic Cable
Brand: all-electronics-online.com
SKU: 752944715
Availability: InStock
Rating: 5 (55 reviews)

Price:	US $ 2/Meter
Trade Terms:	FOB,EXW
Min Order:	3000/Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	GYTA
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Outer Sheath Color:	Black
Outer Sheath Material:	PE
Metallic Strengthen Member:	Steel Wire
Filler:	Filling Compound
Single Armour Material:	Corrugated Aluminium Tape
Fiber Count:	2-288 Core
Brand Name Of Fiber:	Corning ,Yofc,Draka,Fujikura or as Your Requiremen
Waterblocking Material:	Water Blocking Tape or Filling Compound
Installation Style:	Duct, Aerial
Loose Tube Material:	PBT with Jerry
Application:	Communication
Type:	Multi-mode Fiber
Connection Structure:	SC
Certification:	ISO9001
Sheath Material:	PE

Product Description

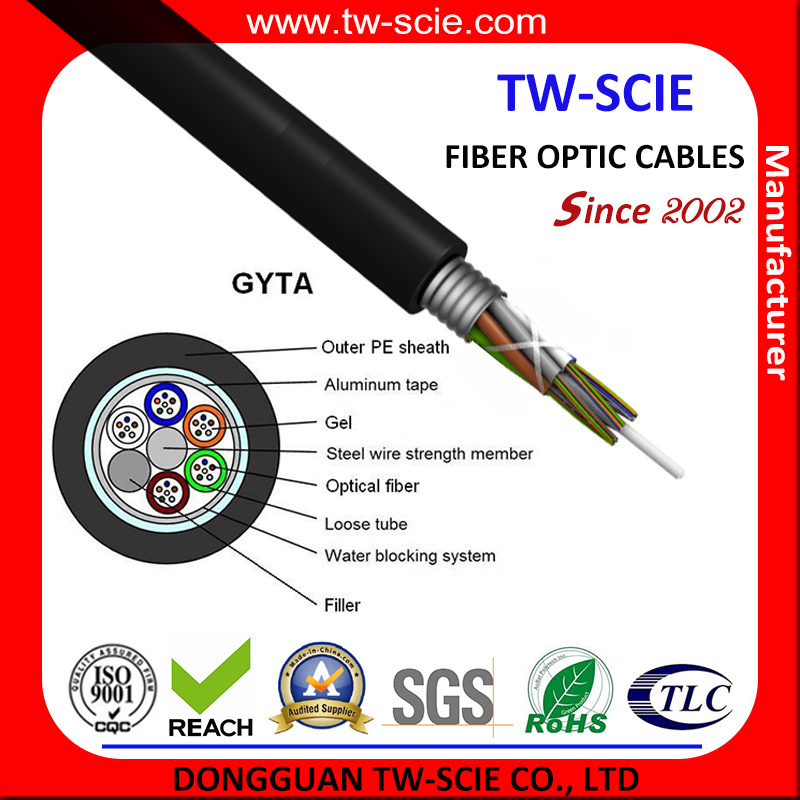

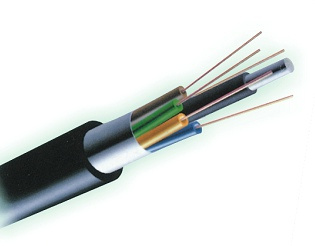

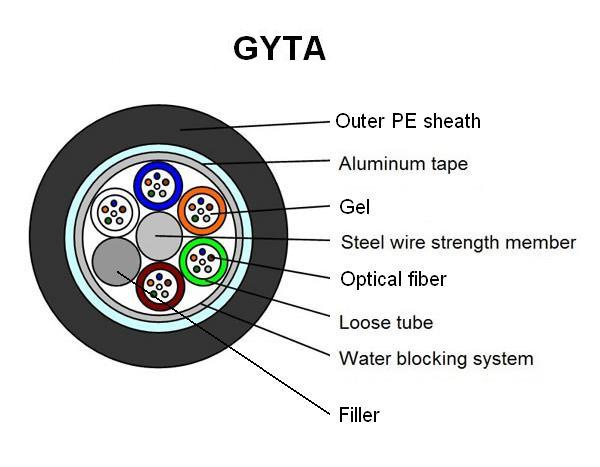

GYTA multi core Duct optical fiber cable

No	1	2	3	4	5	6
Color	Blue	Orange	Green	Brown	Slate	White
No	7	8	9	10	11	12
Color	Red	Black	Yellow	Violet	Pink	Aqua

Technical Parameters

Cable Type	Fiber Count	Tubes	Fillers	Cable Diameter	Cable Weight kg/km	Tensile Strength	Crush Resistance	Bending Radius
Cable Type	Fiber Count		Fillers	Cable Diameter	Cable Weight kg/km	Long/Short Term N	Long/Short Term	Static
GYTA-2~12	2~12	1	4	9.7	90	600/1500	300/1000	10D/20D
GYTA-14~24	14~24	2	3	9.7	95	600/1500	300/1000	10D/20D
GYTA-26~36	26~36	3	2	9.7	100	600/1500	300/1000	10D/20D
GYTA-38~48	38~48	4	1	11	115	1000/3000	300/1000	10D/20D
GYTA-50~60	50~60	5	0	11.5	120	1000/3000	300/1000	10D/20D
GYTA-62~72	62~72	6	0	13.4	140	1000/3000	300/1000	10D/20D
GYTA-74~84	74~84	7	0	13.4	154	1000/3000	300/1000	10D/20D
GYTA-86~96	86~96	8	0	14.8	185	1000/3000	300/1000	10D/20D
GYTA-98~108	98~108	9	0	14.8	190	1000/3000	300/1000	10D/20D
GYTA-110~120	110~120	10	0	14.8	200	1000/3000	300/1000	10D/20D
GYTA-122~132	122~132	11	0	16.9	228	1000/3000	300/1000	10D/20D
GYTA-134~144	134~144	12	0	16.9	230	1000/3000	300/1000	10D/20D
***	***	***	***	***	***	***	***	***
GYTA-206~216	206~216	18	0	18	280	1000/3000	300/1000	10D/20D
***	***	***	***	***	***	***	***	***
GYTA-276~288	276~288	24	0	22	380	1000/3000	300/1000	10D/20D

Storage/Operating Temperature : -40ºC to + 70ºC

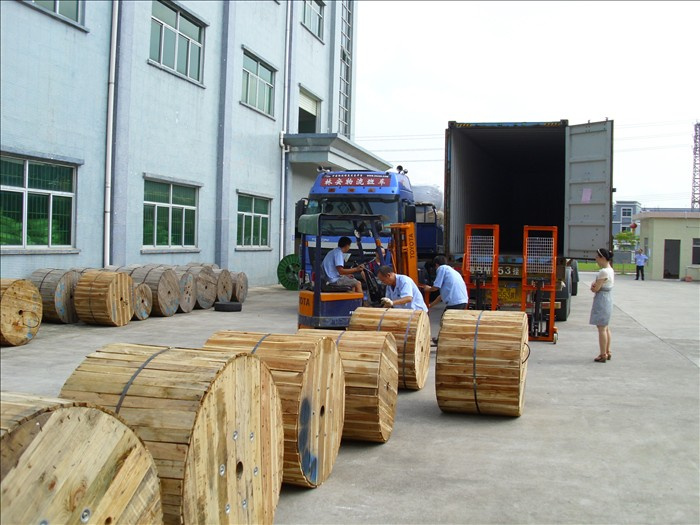

Packaging & Shipping

Company Information

Necero Company specializes in manufacturing, exporting and supplying fiber optic cable outdoor factory in China. It has always been our focus to manufacture high quality products and to deliver them on time with attentive after-sales service. Our innovative spirit enables us to go ahead of our competitors by providing the widest range products. Enquiries from global wholesalers, distributors, buyers, agents and OEM / ODM are welcome.

Our Services

1,TW is a leading professional manufacture and exporter in China with more than 15years' experience

2,Mainly produce and export various optical fiber cable.

3,Production capacity for outdoor cable is 8000km per month

4,Being the manufacture, we welcome OEM orders

5,Compared with other cable manufacture, necero is more flexible

6. We can offer service one by one. Here is one of our salesperson's info.

DONGGUAN TW-SCIE Co., Ltd. is a high-tech enterprise group in China devoted to communications undertakings with our own impoters and exporters rights. Since its founding, high quality products an strong co-operations have enabled the enterprise to stably and rapidly grow into a specialized communication

Manufacturer supplier and engineering service provider the most complete product line-up and specifications in the fiber and cable industry of China.

The enterprise is possessed of a passel of faithful, intelligent, conscientious talents. While bending ourselves to following with the worldwide advanced development and application, we build up cooperation ties with many scientific research academy.

The main products of our enterprise are:

Optical fiber, optical cable, Optical media converter, optical transceiver, optical coupler, optical modem, optical connector, optical distribution frame.

All of the products are widely used in telecom, electric power, railway and other related department, exporting France, India, Singapore, Malaysia.
