| Prod Model: |
GYTA |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Outer Sheath Color: |
Black |
| Outer Sheath Material: |
PE |
| Metallic Strengthen Member: |
Steel Wire |
| Filler: |
Filling Compound |
| Single Armour Material: |
Corrugated Aluminium Tape |
| Fiber Count: |
2-288 Core |
| Brand Name Of Fiber: |
Corning ,Yofc,Draka,Fujikura or as Your Requiremen |
| Waterblocking Material: |
Water Blocking Tape or Filling Compound |
| Installation Style: |
Duct, Aerial |
| Loose Tube Material: |
PBT with Jerry |
| Application: |
Communication |
| Type: |
Multi-mode Fiber |
| Connection Structure: |
SC |
| Certification: |
ISO9001 |
| Sheath Material: |
PE |
Product Description
Main Products Design for GYTA53

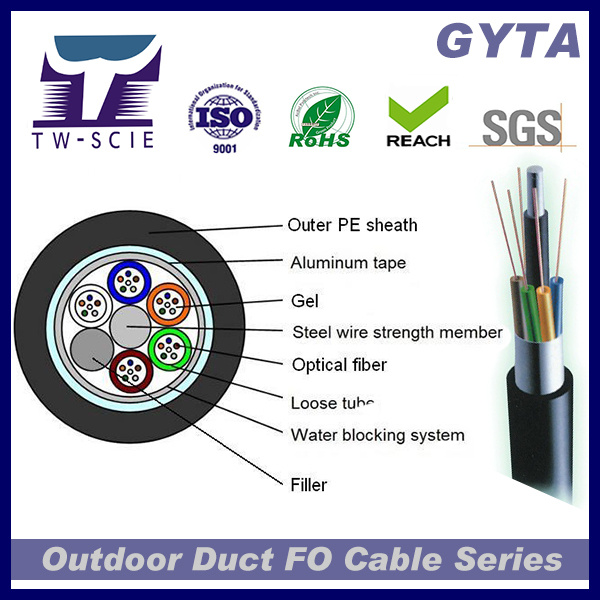

The fibres,250μm,are positioned in a loose tube made of a high modulus plastic.The tubes are filled with a waterresistant filling compound.
A strengthen member locates inthe center of core as a nonmetallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular core. After the cable core is filled with the filling compound to protect it from water ingress,the cable is completed with a PE sheath.
| Product name | GYTA53 fiber optic cable |
| Introduction | The fibres,250μm,are positioned in a loose tube made of a high modulus plastic.The tubes are filled with a water-resistant filling compound.A steel wire,sometimes sheathed with polyethylene(PE) for cable with high fiber count,locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular core. An Aluminum Polyethylene Laminate (APL) is applied around the cable core,which is filled with the filling compound to protect it from water ingress,then,the cable core is completed with a PE sheath .After the PSP is longitudinally applied over the inner sheath,the cable is completed with a PE outer sheath. |
| Characteristics | Good mechanical and temperature performance |
| High strength loose tube that is hydrolysis resistant |
| Special tube filling compound ensure a critical protection of fiber |
| Crush resistance and flexibility |
| The following measures are taken to ensure the cable watertight: |
| Loose tube filling compound |
| 100% cable core filling |
| PSP enhancing moisture-proof |
| APL moisture barrier |
| Water-blocking material |
| Steel wire used as the central strength member |
| Application | Duct |
| Aerial |
| Direct burided |
| Standards | Complies with standard YD/T 901-2009 as well as IEC 60794-1. |
Cable Type
(Increased by 2 fibers) | Fiber Count | Tubes | Fillers | Cable Diameter
mm | Cable Weight
Kg/Km | Tensile Strength
Long/Short Term
N | Crush Resistance
Long/Short Term
N/100mm | Bending Radius
Static/Dynamic
mm |
| GYTA53-2-6 | 2-6 | 1 | 5 | 13.7 | 190 | 1000/3000 | 1000/3000 | 10D/20D |
| GYTA53-8-12 | 8-12 | 2 | 4 | 13.7 | 190 | 1000/3000 | 1000/3000 | 10D/20D |
| GYTA53-14-18 | 14-18 | 3 | 3 | 13.7 | 190 | 1000/3000 | 1000/3000 | 10D/20D |
| GYTA53-20-24 | 20-24 | 4 | 2 | 13.7 | 190 | 1000/3000 | 1000/3000 | 10D/20D |
| GYTA53-26-30 | 26-30 | 5 | 1 | 13.7 | 190 | 1000/3000 | 1000/3000 | 10D/20D |
| GYTA53-32-36 | 32-36 | 6 | 0 | 13.7 | 190 | 1000/3000 | 1000/3000 | 10D/20D |
| GYTA53-38-48 | 38-48 | 4 | 1 | 15.3 | 229 | 1000/3000 | 1000/3000 | 10D/20D |
| GYTA53-50-60 | 50-60 | 5 | 0 | 15.3 | 229 | 1000/3000 | 1000/3000 | 10D/20D |
| GYTA53-62-72 | 62-72 | 6 | 0 | 15.9 | 244 | 1000/3000 | 1000/3000 | 10D/20D |
| GYTA53-74-84 | 74-84 | 7 | 1 | 18.0 | 288 | 1000/3000 | 1000/3000 | 10D/20D |
| GYTA53-86-96 | 86-96 | 8 | 0 | 18.0 | 288 | 1000/3000 | 1000/3000 | 10D/20D |
| GYTA53-98-108 | 98-108 | 9 | 1 | 19.2 | 325 | 1000/3000 | 1000/3000 | 10D/20D |
| GYTA53-110-120 | 110-120 | 10 | 0 | 19.2 | 325 | 1000/3000 | 1000/3000 | 10D/20D |
| GYTA53-122-132 | 122-132 | 11 | 1 | 20.9 | 373 | 1000/3000 | 1000/3000 | 10D/20D |
| GYTA53-134-144 | 134-144 | 12 | 0 | 20.9 | 373 | 1000/3000 | 1000/3000 | 10D/20D |
| GYTA53-146-216 | 146-216 | 18 | 0 | 20.9 | 373 | 1000/3000 | 1000/3000 | 10D/20D |
1.All types of fiber cables with different structures
2.High performance optical network operating
3.High speed optical routes in buildings(FTTX)
Technical Parameter:
Cable Type
(Increased by 2 fibers) | Fiber Count | Cable Diameter
mm | Cable Weight
Kg/Km | Tensile Strength
Long/Short Term
N | Crush Resistance
Long/Short Term
N/100mm | Bending Radius
Static/Dynamic
mm |
| GYTA53-2~216 | 2~216 | 13.7~20.9 | 190~373 | 1000/3000 | 1000/3000 | 10D/20D
|
Feature
1.Good mechanical and temperature performance
2.High strength loose tube that is hydrolysis resistant
3.Special tube filling compound ensure a critical protection of fiber
4.Crush resistance and flexibility
5.The following measures are taken to ensure the cable watertight:
6.Single Fiber Reinforced Plastic as the central strength member
7.Loose tube filling compound
8.100% cable core filling
Note:
1.Cables can be supplied with a range of single mode or multimode fibers.
2.The dimensions and raw meterials can be designed according to the demand of the customers.
3.Standard Reel Length: 2000m/reel ; other lengths available
