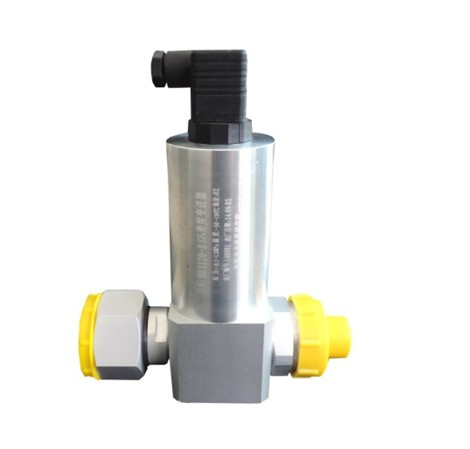

Hb3200 Series Trace Moisture Density Transmitter

Name: Hb3200 Series Trace Moisture Density Transmitter
Brand: all-electronics-online.com
SKU: 734642742
Availability: InStock
Rating: 4.4 (73 reviews)

Price:	US $ 2500-3000/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	HB3200
Breaking Capacity:	High Voltage Circuit Breakers
Operation:	Electric Type
Speed:	High-Speed Circuit Breaker
Arc-extinguishing Medium:	SF6
Installation:	Fixed
Certification:	ISO9001-2000
Structure:	Stainless Steel
Poles Number:	0.5%

Product Description

HB3200 series trace moisture density transmitter is the special inspection instrument which applied for race moisture content of SF6 gas in high voltage switchgear GIS equipment. It adopted dew-point principle to detecting moisture content in gas, also has the calibrating functions for pressure and temperature to ensure the accuracy in difference pressure and temperature conditions. Meanwhile, it has varies parameters of output functions which including pressure and temperature signals.

Specification

Power Supply	24-28V DC
Measuring Data	moisture content, density, dew-point, pressure, temperature
Output Signal	RS485 communication, PROFIBUS mode
Range	moisture content 50-1000ppm pressure -0.1 - 0.7MPa temperature -50 - 100ºC dew-point -80 - 20ºC density -0.1 - 1.5MPa(P20)
Accuracy	moisture content 7.3ppm±9.2%reader pressure ±0.5%F·S temperature ±0.5%F·S density ±0.5%F·S
Working Temperature	-40 - 60ºC
Working Pressure	1.0MPa
Protection Grade	IP65

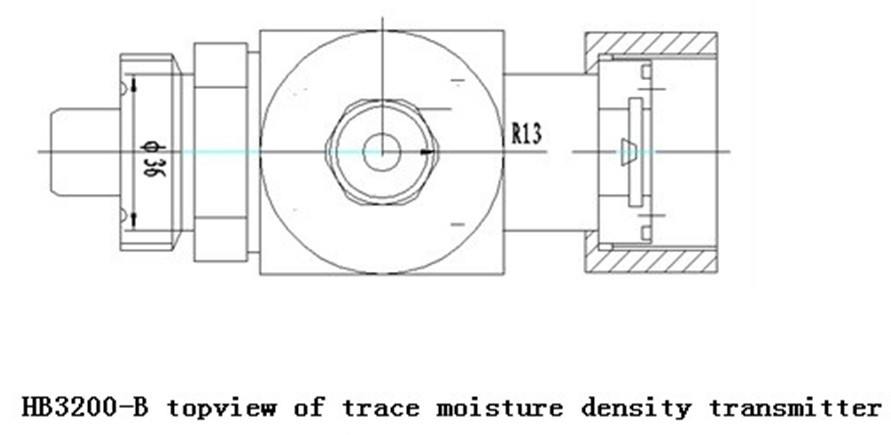

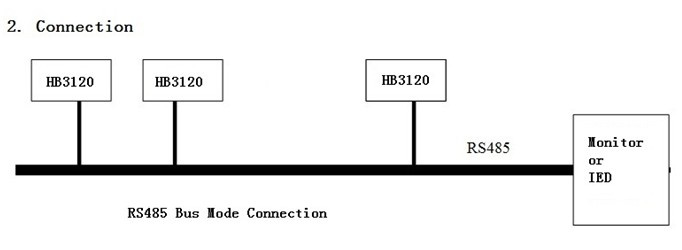

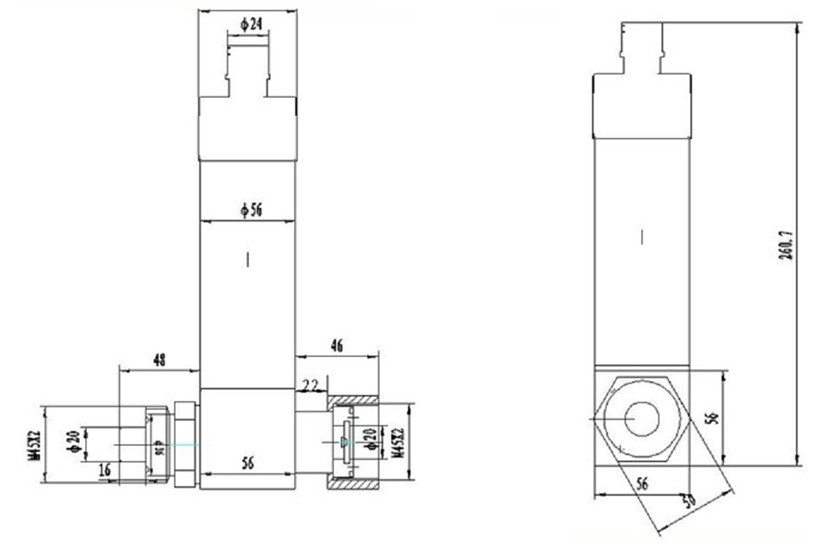

Dimension and Connection

Model and Order Code

HB3200	trace moisture density transmitter
	Code	Output
	A	4-20mA analog output
	B	RS485 Bus mode

Order Code Example

HB3200 B

Introduction:HB3200 series trace moisture density transmitter, RS485 Bus output mode
