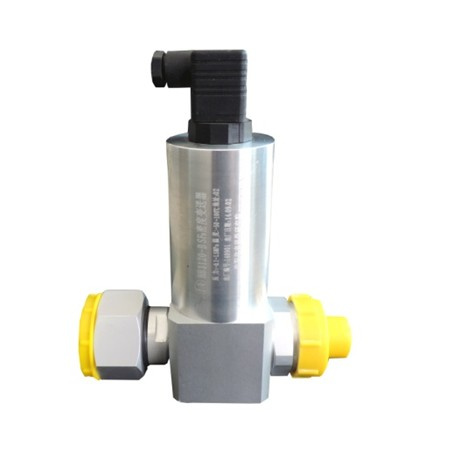

High Voltage Circuit Breaker Sf6 Density Transmitter
| Price: |
US $ 2500/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
HB3120 |
| Breaking Capacity: |
High Voltage Circuit Breakers |
| Operation: |
Electric Type |
| Speed: |
High-Speed Circuit Breaker |
| Arc-extinguishing Medium: |
SF6 |
| Installation: |
Fixed |
| Certification: |
ISO9001-2000 |
| Structure: |
Stainless Steel |
| Poles Number: |
0.5% |
Product Description
The HB3120 series SF6 density transmitter adopted a composite sensor to measure the pressure and temperature of the SF6 gas directly, and the density of the gas is obtained by the circuit operation. Transmitter output has varies type such as analog 4-20m A signal, digital RS485 signal and PROFIBUS signal for user to choose. The measured data of transmitter is accurate, reliable, with strong anti-interference ability. Mechanical connector using one-way check valve can be installed and removed with pressure. The structure using YAHOO welding, helium mass spectrometer leak detection, to ensure a reliable sealing. The transmitter has the advantages of small volume, light weight, compact structure and convenient installation and calibration. The products are widely applied in power transmission and distribution in the field of 110KV, 220KV, 500KV GIS system for the gas monitoring SF6 protection.Specification| Range | -0.1 - 1.5MPa |
| Working Temperature | -40ºC - 60ºC |
| Accuracy | ±0.5%FS |
| Working Voltage | 24V DC |
| Load Capacity | 1.5 time of full scale |
| Output Signal | 4-20mA / RS485 Bus output (the transmission speed of PROFIBUS-DP could reach from 9600bit/s to 12Mbit/s by self-adaption) |

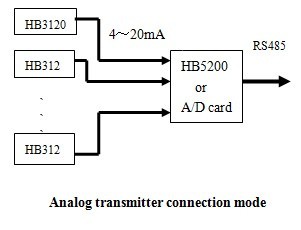

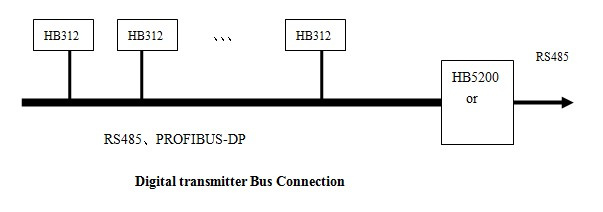

Dimension and Connection
Model and Order Code| HB3120 | SF6 Density Transmitter |
| | Code | Signal Type |
| | A | Analog signal |
| | D | RS485 Bus output |
Order Code SampleIntroduction:HB3120 SF6 density transmitter,RS485 Bus output.
