Pressure & Temperature Chips (Multi-Function)
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1000/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
HB2105 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
4050×3450×400 Um |
| Output: |
Analog Sensor |
| Usage: |
Pressure Sensitive Sensor |
| Theory: |
Silicon Diffusion |
| Material: |
Silicon |
| Wiring Type: |
6 Pins |
| Measuring Medium: |
Gas & Liquid |
Product Description

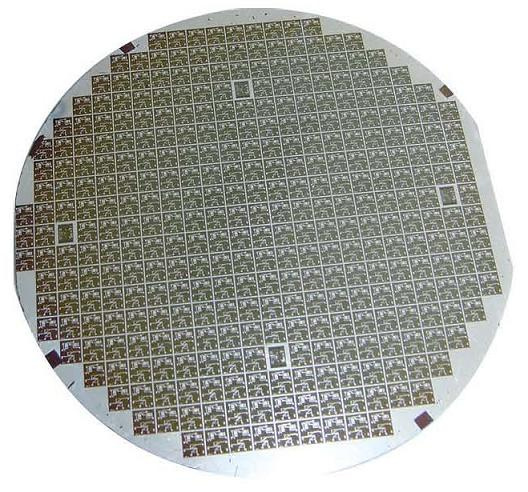

*One die could measuring pressure(relative & absolute pressure) and temperature together
*Manufacture by microelectronic and MEMS technique
*Monocrystalline silicon 4" wafer, PN juction electrical isolation

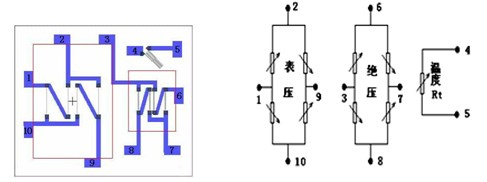

*One chip integrated with 2 bridge circuits and 1 diffussion resistance
*One diffusion resistance reflect the temperature of bridge circuit
*Double rectangle sensitive diaphragms could measure both relative pressure and absolute pressure
| No. | Item | Specifications |
| Relative Pressure | Absolute Pressure | Temperature |
| 1 | Nominal Range | 40KPa\100KPa\400KPa\1000KPa | 4MPa\10MPa\16MPa | -30 - +80ºC |
| 2 | Bridge Resistance | 5(1±20%)KΩ | 10(1±20%)kΩ | 25(1±20%)kΩ |
| 3 | Zero Offset | ≤20mV | ≤30mV | |
| 4 | Full-scale Output | ≥50mV | ≥50mV | ≥15Ω/ºC |
| 5 | Overload | 1.5 times of nominal scale | 2 times of nominal scale | |
| 8 | Nolinearity | ±0.25%FS(other scales)
±0.5%FS(40Kpa) |
| 9 | Zero Temperature Coeffcient | ±0.1%FS/ºC |
| 10 | Sensitivity Temperature Coeffcient | ±0.1%FS/ºC |
| 11 | Short Term Stability | ±0.05%FS/8h |
| 12 | Excitation | 1mA DC, 5 VDC |
| 13 | Working Temperature | -45 to +100ºC |
| 14 | Size(a×b×c) | 4050×3450×400 um |
Notes: 1.Calculating method of nonlinearity is the Last Square Method.
2.Zero,full scale and temperature coeffcient are attained with the reference at 25ºC.
3.All the other test results are attained with the reference at 25ºCand 5VDC.
4.Connection pad is AI electrode. |
