| Prod Model: |
HB2126 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Output: |
4-20mA |
| Usage: |
Pressure Sensitive Sensor |
| Theory: |
Diffused Silicon Technology |

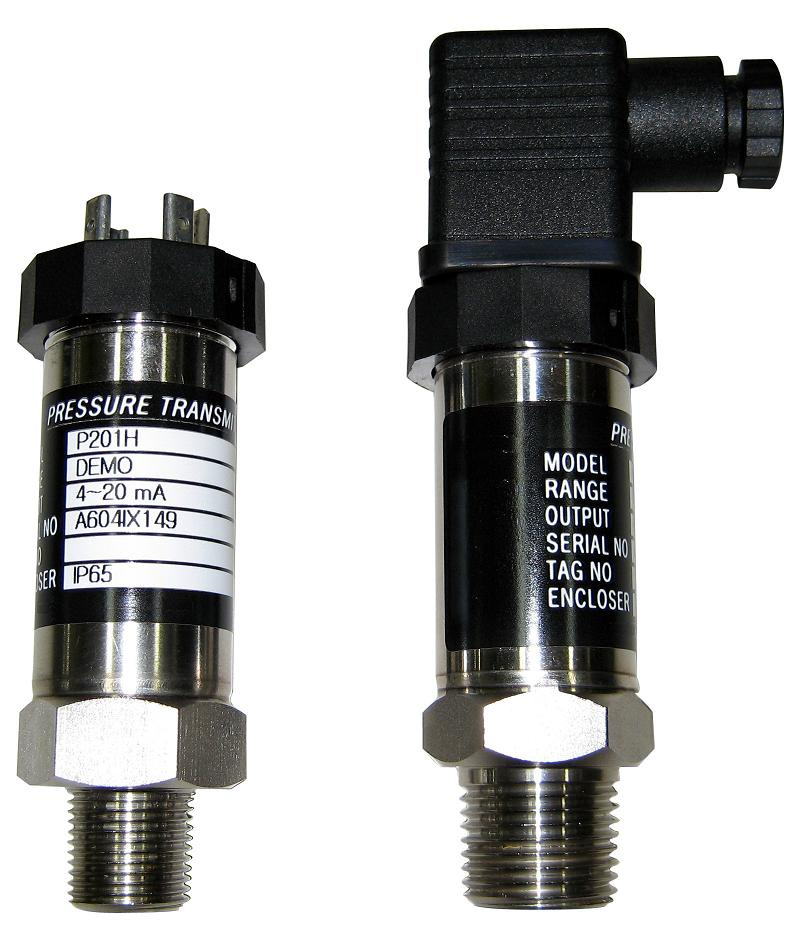

Product Description
The HB2126 transmitter is the first choice for applications requiring high accuracy in different environment. Our MEMS based technology provides stability over a wide temperature range with excellent repeatability and minimal hysteresis. The diaphragm and body are 316 stainless steel as standard. Available with Hirschman connector or Cable directly. Choice of pressure port, either M20× 1.5 or G1/4 male.
Features
Construction is 316 stainless steel
Current and Voltage Output versions±
0.2% long term stability per annum
Ranges from 0.35 bar to 1000 bar, Gauge or Absolute
Advanced digital compensation of both temperature and non-linearity
Cost effective

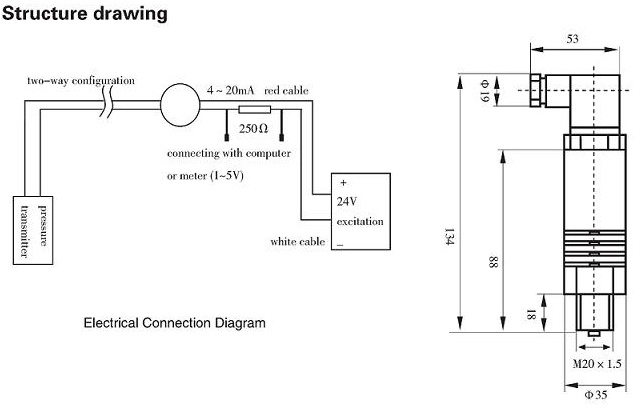

| Specifications |
| 01 | Pressure Range | 0.35bar, 1bar, 2.5bar, 6bar, 10bar, 16bar, 25bar, 60bar, 100bar, 250bar, 400bar, 600bar |
| 02 | Overload Capacity | 1.5 times scale |
| 03 | Accuracy | ±0.25%F.S, ±0.5%F.S |
| 04 | Zero Temperature Coefficient | ±0.015%F.S/ºC(Typical) |
| 05 | Sensitivity Temperature Coefficient | ±0.015%F.S/ºC(Typical) |
| 06 | Power Supply | 24VDC |
| 07 | Output | 4~20mA |
| 08 | Operating Temperature | -40ºC~+120ºC |
| 09 | Compensated Temperature | 0~+70ºC(Typical), -40ºC~+100ºC(optional) |
| 10 | Long Term Stability | ±0.1%F.S/ year |
| 11 | Anti-exploding Performance | Intrinsic safety against exploding ExiaII BT6 (HB9500) |
| 12 | Pressure Connection | M20×1.5, G1/4 male,
Customized (Customer should provide connector drawing) |
| 13 | Electrical Connection | Hirschman Connector, Hummel water-proof connector,
Cable Connection |
| Notes | 1.Accuracy includes hysteretic, repeatability and nonlinearity (the Least Square Method)
2.Without other notices, all results are attained with the reference temperature 25ºC |
| HB2126 Pressure Transmitter Order Information |
| | Code | Measuring Type |
| A | Absolute Pressure |
| G | Gauge Pressure |
| | Code | Pressure Range |
| 0003 | 0~0.35bar |
| 0010 | 0~1bar |
| 0025 | 0~2.5bar |
| 0060 | 0~6bar |
| 0100 | 0~10bar |
| 0160 | 0~16bar |
| 0250 | 0~25bar |
| 0600 | 0~60bar |
| 1000 | 0~100bar |
| 2500 | 0~250bar |
| 4000 | 0~400bar |
| 6000 | 0~600bar |
| | Code | Accuracy |
| A1 | ±0.25%F.S |
| A2 | ±0.5%F.S |
| | Code | Compensated Temperature |
| T1 | 0~70ºC |
| T2 | -40~100ºC |
| T0 | Customer requirement |
| | Code | Electrical Connector |
| EC1 | Hirschman Connector |
| EC2 | Cable Directly |
| EC0 | Customer requirement |
| | Code | Pressure Connector |
| PC1 | M20×1.5 |
| PC2 | G1/4 male |
| PC0 | Customer requirement |
Example:
HB2126-G-0600-A2-T1-EC1-PC2 is a HB2126 pressure transmitter with 600 bar gauge pressure range, accuracy is ±0.5F.S, compensated temperature is 0~70ºC, electrical connector is Hirschman connector, pressure connector is G1/4 male.
