Sf6 Environment Monitoring System of Distribution Room

Sf6 Environment Monitoring System of Distribution Room
Price: Negotiable/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T
Prod Model: HB9200
Breaking Capacity: High Voltage Circuit Breakers
Operation: Electric Type
Speed: High-Speed Circuit Breaker
Arc-extinguishing Medium: SF6
Installation: Fixed
Certification: ISO9001-2000
Structure: Stainless Steel
Poles Number: 0.5%

Product Description

HB9200 series SF6 power distribution room environment monitoring system is specially applied in converting station, power distribution room, high voltage switch manufacturers which have the environmental monitoring control system in the most centralized equipment room.

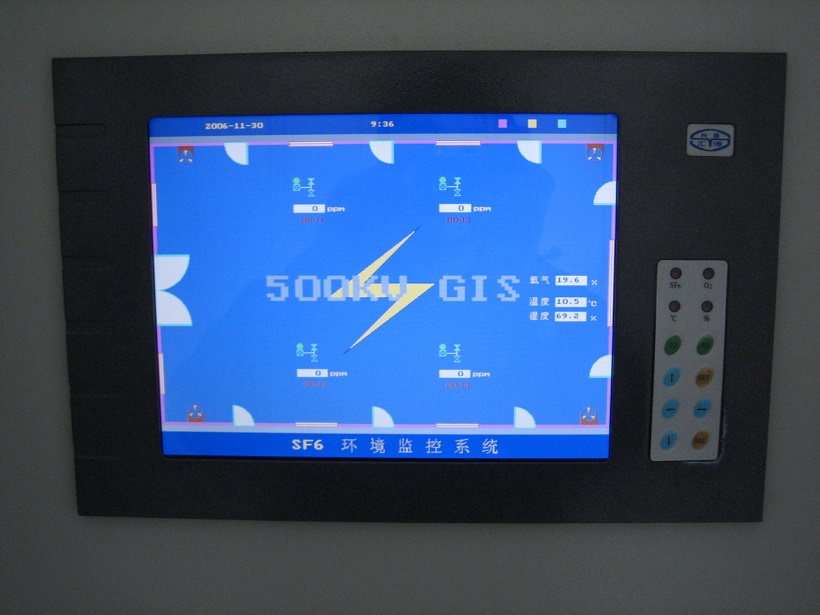

The system including: SF6 density, oxygen content, temperature, humidity sensor and infrared sensor to detect whether there is any employee to access, large screen display device and indication control part of the studio, exhaust ventilation control unit and alarm indicator. The system is designed according to the relevant regulations of which is the necessary environmental monitoring system of the SF6 power distribution room and SF6 gas laboratory.

Specification
SF6 Concentration Overrun Alarm Point: 1000ppm, accuracy<5%FS (alarm liberal setting)
Oxygen Concentration Detection Range:5-25%,hypoxia alarm point 18%,accuracy 1%FS
Temperature Display Range:-30~85ºC
Humidity Display Range:0~99%RH
Power:AC220V
Output Connecting Power:220V/1A
Fan Start:when oxygen content≤18% or SF6 concentration≥1000ppm, or employee into the room; each time start and continues 15min( time setting liberally), also could control by hand.
Sound and Light Alarm Function:monitoring PC has sound and light alarm function
Communication:RS485 port,upload to monitoring PC
Storage:history data and alarm details.


Model and Order Code
HB9200SF6 Power Distribution Room Environment Monitoring System
 CodeSF6 Concentration Monitoring Point
 014 channels
 028 channels
 0312 channels
 0414 channels
 CodeOxygen Concentration Monitoring Point
 014 channels
 028 channels
 0312 channels
 0414 channels
 CodeTemperature & Humidity Monitoring Point
 014 channels
 028 channels
 0312 channels
 0414 channels
 CodeFan Control Output Point
 011 channel
 022 channels
 034 channels




Order Code Example
HB9200   02       02       02      01
Introduction:HB9200 SF6 power distribution room environment monitoring system, SF6 concentration monitoring point is 8 channels, Oxygen concentration monitoring point is 8 channels, temperature & humidity monitoring point is 4 channels, fan control output point is 1 channel.
<
Shenyang Academy of Instrumentation Science Co., Ltd. Was derectly belonging to Ministry of Machinery Industry as a large comprehensive scientific research academyt, now is subject to China National Machinery Industry Corporation (SINOMACH). Name listed in national comprehensive technology ability 100 research academies & institutes, AAA class credit enterprise in Liaoning province. One of the national high-tech enterprises, focus on sensor and instrument' S research, develop and manufacture.

After 40 years' Development, we have accomplished 626 scientific research items and 159 awards in state, province, ministry and city, of which there are 20 National Invention Awards and Science and Technology Progress Awards, 56 various awards in province and ministry and 80 patents and know-hows.

The main products are including:

- Pressure sensor die/wafer

- Pressure sensor & transmitter

- Dew-point transmitter

- Wafer dicing machine

- Metal bellows(Hydroformed & Electroformed)

- Optical filter & optical reflector

- Current sensor & gauss meter

We are the only manufacturer for silicon piezoresistive pressure wafer/die, and the only national research center in China.

We are the only manufacturer for electroformed metal bellows in China.

We are the largest manufacture for optical filter in China

We has passed the GB/T19001-2000. Elastic components and transducers has passed GJB9001A-2001.

We gain class AAA in both enterprise credit and banking credit.

SAIS has established a nationwide marketing network, and the products are widely employed in such military and civil industries as spaceflight, aviation, navigation, petrochemistry, Metallurgy, Heat Supply, Thermoelectricity, Hydroelectricity, Coal, Light Industry, Architecture and Pharmacy. Some of the products are exported to overseas market.

We would like to creat HB name brand, collect time elite, introduce others' Merits. It is our responsibilities to constantly increase more advanced techniques to HB products. We also strictly abide by the marketing ideology of faithfulness, carry through quality policy, innovating in products by science and technology, guarantee quality by strict administration, reduce cost by elaborated accounting, reassure clients by gualified services. We seriously complete the sales management mode of Whole Course Credit Administration, repay our clients with profound enterprise cultures, outstanding management, strong core competition abilities and qualified credit.
