| Prod Model: |
HB |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Mid East,Eastern Asia,Western Europe |
| Range: |
0-0.6MPa to 0-60 MPa |
| Composition: |
Applied Mode |
| Measured Substance: |
Physical Model |
| Usage: |
Pressure Sensitive Sensor |
| Theory: |
Pressure Sensor |
| Brand: |
Hb |
| Operation Form: |
Force Measure Sensor |
| Production Process: |
Silicon Diffusion |
| Measuring Medium: |
Gas and Liquid |
| IP Rating: |
Mixture |
Product Description

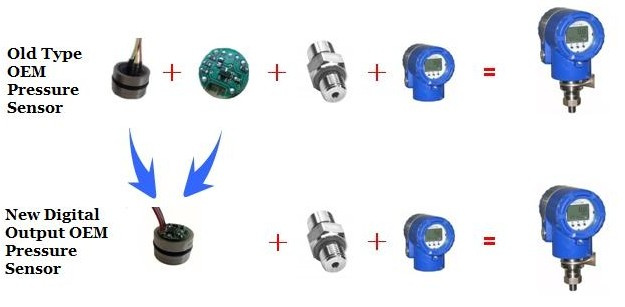

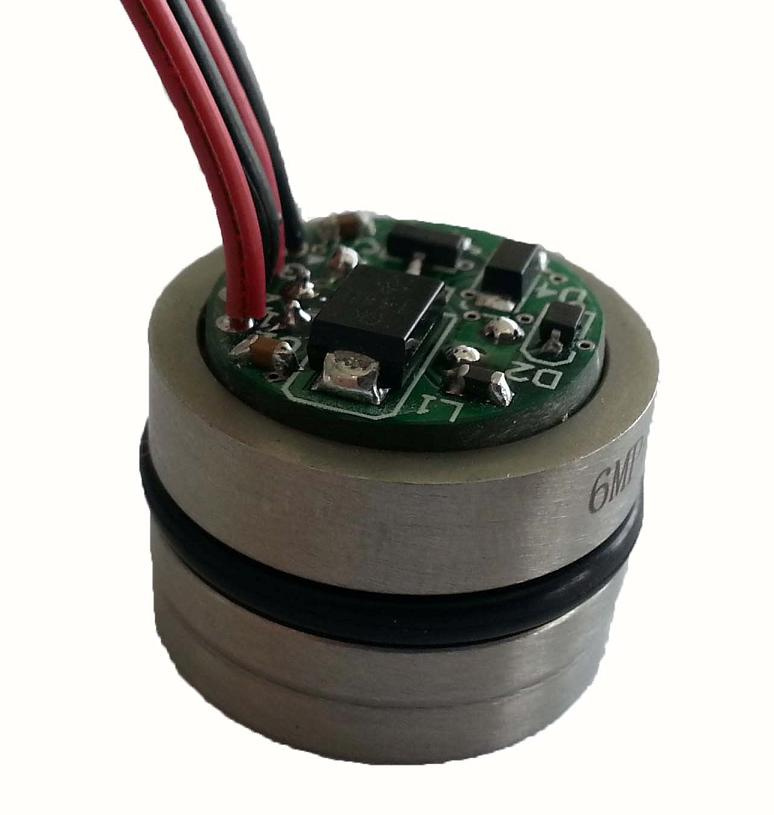

The DO-M01 digital signal output pressure sensor is small profile, media compatible, piezoresistive silicon pressure sensor packaged in a 316L stainless steel housing. It has 14 bit digital output resolution, wild temperature operating and compensated range. The sensing package utilizes silicon oil to transfer pressure from the 316L diaphragm to the inside sensing element.
Feature
l 316L stainless steel diaphragm type pressure sensor
l Temperature compensation and error adjustment by special signal conditioning chip
l Digital signal output, 1-wire bus communication protocol
l EMC standard designed circuit, anti-radio frequency and anti- electromagnetic interference
l Anti- Electrical surge designed to protect electronic components
l Wild power supply range, working condition under 4V - 36VDC
Applications
l Level controls
l Tank level measurement
l Corrosive fluids and gas measurement systems
l Sealed system
l Manifold pressure measurement
l Barometric pressure measurement
l Submersible depth monitoring
| Performance Specification | |
| Nominal range | 0 - 0.6MPa to 0 - 60MPa |
| Pressure reference | Gauge pressure & absolute pressure |
| Overload | 1.5 times of nominal scale |
| Accuracy | ±0.25%F.S |
| Total error band | ±0.5%F.S; ±1%F.S |
| Compensated temperature | -25ºC - +125ºC |
| Power supply | 4 - 30VDC |
| Supply current | 4mA |
| Output type | One wire; RS232\RS485\SPI; analog voltage signal |
| Resolution | 14 bit |
