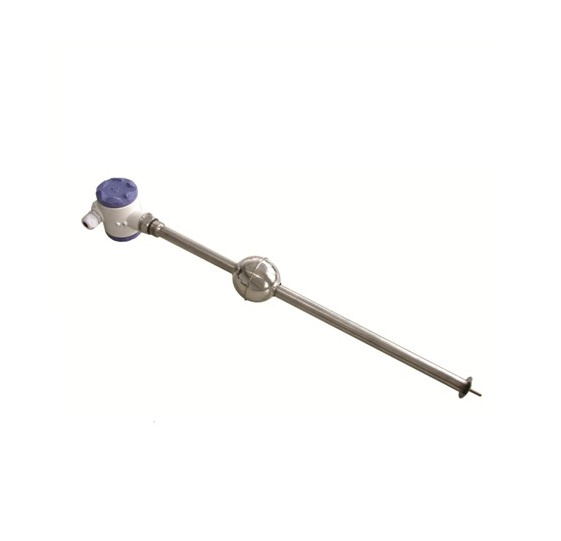

Uhb Series Floating Ball Level Transmitter and Controller
| Price: |
US $ 230-280/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
UHB |
| Type: |
Floating Ball |
| Accuracy Grade: |
±20mm, ±10mm |
Product Description
UHB series products adopted magnetic coupling principle, sending relative sponding liquid level signal and control signal that given by the floating ball with changed liquid level. The materials of floatinf ball, guide rod, flange could be made of stainless steel structure for general type, and also cold made of ABS,PTFE materials for anti-corrosion type. This transmitter can effectively overcome the influence of suspended liquid and foam, suitable for measuring and controlling the surface of two types of liquid, also suitable for general medium, and corrosion liquid such as acid and alkali. Especially suitable for liquid level measurement and control of various pressure tanks and open tanks. It has great advantages for industrial and civil building water towers, water tanks, water tanks, water collection pit, industrial tanks and other liquid level measurement. Widely used in petroleum, chemical, metallurgy, food, environmental protection and other industriesSpecification| Range | 0-4m, 0-18m |
| Working Voltage | 24V(DC) |
| Output | 4~20mA(DC) |
| Accuracy | ±20mm, ±10mm |
| Load Capacity | 600Ω |
| Explosion-proof | ExiaII BT6, ExdII BT4 |
| Environment Temperature | -30 - 80ºC |
| Relative Humidity | ≤95%RH |
| Medium Pressure | 0-0.6MPa, 0-2.5MPa |
| Medium Temperature | -20 - 95ºC |
| Medium Density | ≥0.6g/cm3 |
| Control Output | reed contact 220V, 2A
working life 5×104 |
Dimension and Connection1. Dimension
2. Connection
Model and Order Code| UHB | Floating ball level transmitter |
| UQK | Floating ball level controller |
| | Code | Body Material |
| | 1 | Standard(1Cr18Ni9Ti) |
| | 2 | Corrosion Resistant(ABS,PTFE) |
| | 3 | Flexible |
| | Code | Nominal Pressure KPa |
| | 601 | 0~0.6Mpa |
| | 252 | 0~1.6Mpa |
| | Code | Output |
| | E | 4~20mA(DC) |
| | K | Output with upper & lower limit switch |
| | Code | Measuring Rod |
| | R | Flexible rod |
| | G | Rigid rod |
| | Code | Basic Rangem |
| | A | 0~4m(rigid rod) |
| | B | 0~18m(flexible rod) |
| | | Base on field situation |
| | Code | Rod Lengthm |
| | | Base on field situation |
| | Code | Medium densityg/cm3 |
| | | Base on field situation, >0.6g/cm3 |
| | Code | Flange Connection |
| | 80 | DN80 PN2.5 |
| | 00 | Agreed in advance |
