UHZ Series Magnetic Level Transmitter
| Price: |
Negotiable/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
UHZ |
| Type: |
Magnetic Coupling |
| Accuracy Grade: |
±10mm, ±20mm |
Product Description

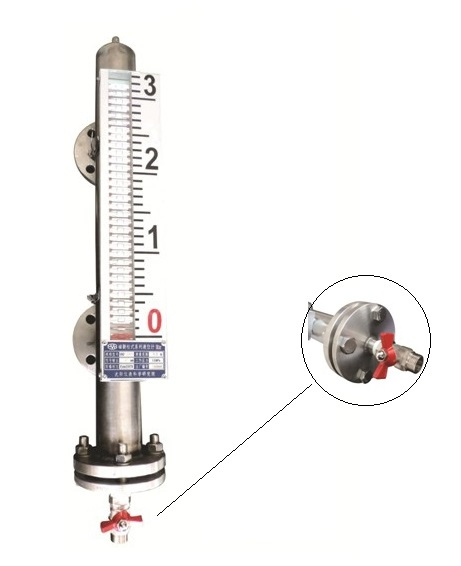

UHZ Series Magnetic Level Transmitters adopted magnetic coupling principle, indicating relative field liquid level that given by the magnetic floater sensing coloured flap column(red, green or white) with changed liquid level. It has the features of visual display, high reliability and durability. This transmitter has 4-20mA long distance signal transmission and upper & lower point alarm output functions. The mounting type including top-mounting and side-mounting which suitable for vertical tank and horizontal tank installation. The transmitters are widely applied in petroleum, chemical, metallurgy, food, pharmaceutical, environmental protection and other industries.Specification| Range | 0-6000mm
|
| Output | 4-20mA |
| Accuracy | ±10mm, ±20mm |
| Working Voltage | 24VDC |
| Load Capacity | 0-650Ω |
| Environment Temperature | -40 - 70ºC |
| Explosion-proof | ExiaII BT6, ExdII BT4 |
| Medium Pressure | 0-4.0MPa |
| Medium Temperature | -40 - 100ºC |
| Medium Density | >0.6g/cm3 |
| Medium Viscosity | <1st(10-4m2/s) |
| Output Capacity | AC220V/2A |
| Switch Output Sensitivity | ±10mm |
| Contactor Life | 5×104 |
| Flange Connection | Side-mounting DN20 PN4.0 or DN25
Top-mounting DN200 PN2.5 or DN250 |

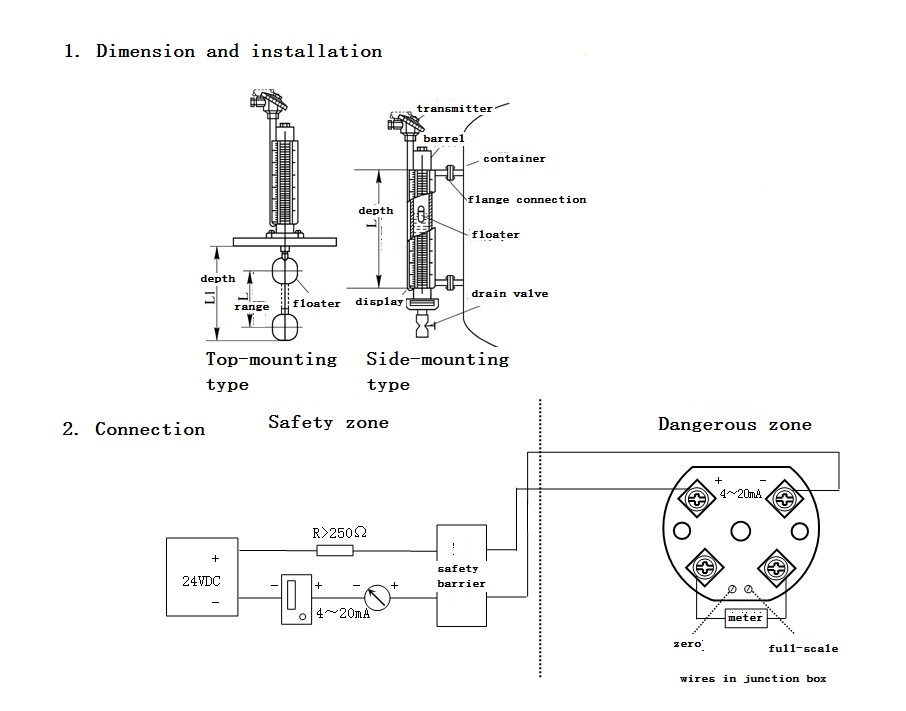

Dimension and Connection
Order Code| UHZ | Magnetic Level Transmitter |
| | Code | Mounting Type |
| | 1 | Side-mounting |
| | 2 | Top-mounting |
| | Code | Nonimal Pressure KPa |
| | 601 | 0~0.6MPa |
| | 162 | 0~1.6MPa |
| | 252 | 0~2.5MPa |
| | 402 | 0~4.0MPa |
| | Code | Output |
| | E | 4~20mA(DC) |
| | K | Upper-lower limit switch output |
| | J | Basic type(field indicating) without output |
| | Code | Basic Range
0~500~3000 mm (side-mounting)
0~500~6000mm
(top-mounting) |
| | © | According to field situation |
| | Code | Accuracy |
| | 1 | ±10mm |
| | 2 | ±20mm |
| | Code | Install Depth |
| | © | According to field situation (top-mounting) |
| | Code | Medium Density >0.6g/cm3 |
| | © | According to field situation |
| | Code | FlangeConnection |
| | 20 | DN20 PN4.0 |
| | 25 | DN25 PN4.0 |
| | 200 | DN200 PN2.5 |
| | 250 | DN250 PN2.5 |
| | 00 | Agreed in advance |
Order Code SampleUHZ 1 162 E 800 1 0.9 25 Full-filled type
UHZ 162 E 800 1 0.9 Simple-filled type |
Introduction:UHZ magnetic level transmitter, side-mounting type, nominal pressure is 1.6MPa, 4~20mA(DC) output, basic range is 0~800mm, accuracy ±10mm, medium density 0.9g/cm3, flange DN25 PN4.0.
