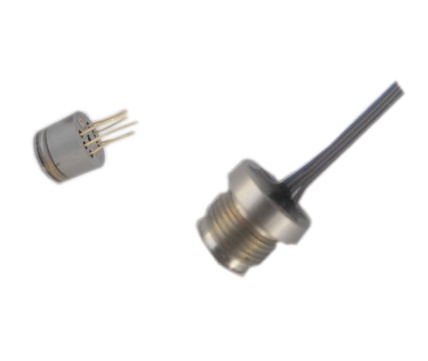

| Prod Model: |
HB2113 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Mid East,Eastern Asia,Western Europe |
| Range: |
0-35kpa to 0-60 MPa |
| Composition: |
Applied Mode |
| Measured Substance: |
Physical Model |
| Output: |
Analog Sensor |
| Usage: |
Pressure Sensitive Sensor |
| Theory: |
Pressure Sensor |
| Brand: |
Hb |
| Operation Form: |
Force Measure Sensor |
| Production Process: |
Silicon Diffusion |
Product Description
Feature
Self-designed & manufacture MEMS sensitivity chip
Isolation structure, suitable for various fluid medium

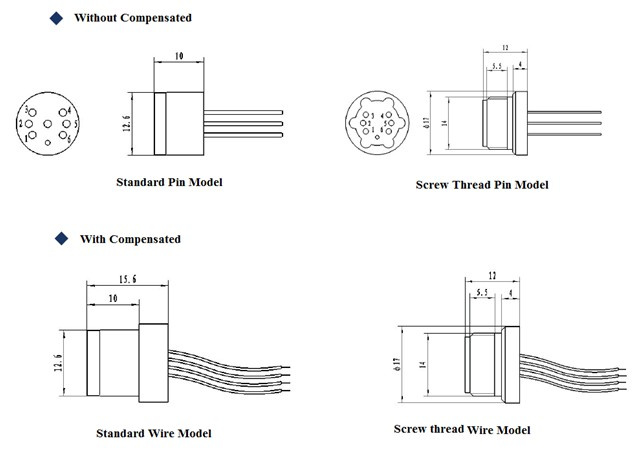

φ12.6mm compact size
Excellent accuracy and long term stability
All metal parts are made of stainless steel 316 L
Application
Typical Applications: Measurement of altitude, aviation electronics, meteorology, servo controls, robotics, hydraulics, sanitary and pharmaceutical engineering, underground mining, injection engineering.
| Performance Specification | |
| Technology | Piezoresistive Diffusion Silicon Pressure Sensor |
| Nominal range | Gauge Pressure: 35kPa, 100kPa, 250kPa, 600kPa,1MPa, 1.6MPa, 2.5MPa |
| | Absolute Pressure: 100kPa, 250kPa, 600kPa,1MPa, 1.6MPa, 2.5MPa, 4MPa, 6MPa, 10MPa, 16MPa, 25MPa, 40MPa, 60MPa |
| Overload | 1.5 times of nominal scale (≥4MPa)
2 times of nominal scale (<6MPa) |
| Zero offset | ±1mV |
| Full scale output | Min. | Typical | Max. |
60mV
(35kPa is 30mV) | 80mV
(35kPa is 45mV) | 120mV
(35kPa is 60mV) |
| Accuracy | ±0.25%F.S ±0.5%F.S |
| Zero Temp. Coefficient | ±0.1%F.S/ºC |
| Sensitivity Temp. Coefficient | ±0.03%F.S/ºC (35kPa is ±0.1%F.S/ºC) |
| Long term stability | ±0.2%F.S/year |
| Electrical Specifications | |
| Excitation | 1mADC (Max. 1.5mA)
5VDC (Max. 7.5VDC) |
| Insulation resistance | 100MΩ(100VDC) |
| Electrical connection | 4 wires (5 wires available) |
| Environmental | |
| Operating temperature range | -45~100ºC |
| Compensated temperature range | 0~70ºC |
