Heat Resistant Fiberglass Braid Silicone Rubber Wire

Name: Heat Resistant Fiberglass Braid Silicone Rubber Wire
Brand: all-electronics-online.com
SKU: 667216245
Availability: InStock
Rating: 4.5 (86 reviews)

Price:	Negotiable/Meter
Min Order:	1000/Meter
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	AWM3512
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	According to Customer's Demand
Type:	Insulated
Conductor Type:	Stranded
Application:	Wire Harness
Conductor Material:	Copper
Insulation Material:	Silicone Rubber
Certification:	VDE
Sheath Material:	Glass Fiber Yarn
Brand:	Hoochan

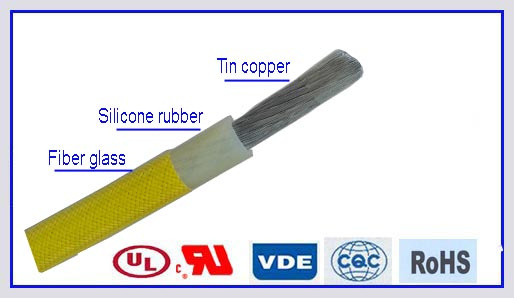

Product Description

Conductor:bare copper, tinned coppe
Insulator: silicone rubber
Rated Volt.: 600V
Test Voltage: 2000V. 1Min
Rated Temp.:-60ºC~+200ºC
Flame test: FT2

Mechanical properties:
Un-aged condition:

Tensile strength: 3.45N/mm2 min.

Elongation at break of insulation: ≥100%

Min.Bending radius: 6×OD

Standards: Standard: UL758, UL62, And UL1581
Meet with RoHS, REACH rules.
Characteristics:
Silicone rubber wire & cable have very good flexibility and good performance of resistance to high temperature, range from -55ºC up to 150ºC.
The use of silicone rubber, a high grade corona resistant insulation material, gives the cable excellent dielectric strength.

Application:
Silicone wire & cable are used where high flexibility is required and high temperature conditions. It is therefore a suitable connection cable for home electric appliance, high voltage machines like transformers, generators, motors, traction machines.

Conductor			Insulation	Wire OD		Resistance
Size	Construction	OD	Nominal	Nominal	Toler.	Ω/KM
mm²	No./mm	mm	mm	mm	mm	Max.
0.50	16/0.20	0.95	0.76	2.5	±0.10	40.1
0.75	24/0.20	1.15	0.76	2.7	±0.15	26.7
1.0	32/0.20	1.34	0.76	2.9	±0.15	20.0
1.5	30/0.25	1.60	0.76	3.2	±0.20	13.7
2.0	41/0.25	1.90	0.76	3.5	±0.20	9.9
2.5	49/0.25	2.00	0.76	3.6	±0.20	8.21
4	56/0.30	2.70	0.76	4.3	±0.20	5.09
6	84/0.30	3.30	1.14	5.6	+0.30	3.39
					-0.20
10	84/0.40	4.60	1.52	7.7	+0.30	1.95
					-0.20
16	126/0.40	5.80	1.52	8.9	+0.30	1.24
					-0.20
25	196/0.40	7.30	1.52	10.4	+0.30	0.795
					-0.20
35	276/0.40	8.60	1.52	11.7	+0.30	0.565
					-0.20
50	396/0.40	10.7	2.0	14.7	+0.40	0.393
					-0.20
70	360/0.50	12.4	2.0	16.4	+0.40	0.277
					-0.20
95	475/0.50	14.5	2.0	18.5	+0.40	0.210
					-0.20
120	608/0.50	16.0	2.4	20.8	+0.40	0.164
					-0.20
150	756/0.50	18.0	2.4	22.8	+0.60	0.132
					-0.30
185	925/0.50	20.0	2.4	24.8	+0.60	0.108
					-0.30
240	1221/0.50	23.0	2.4	27.8	+0.60	0.0817
					-0.30

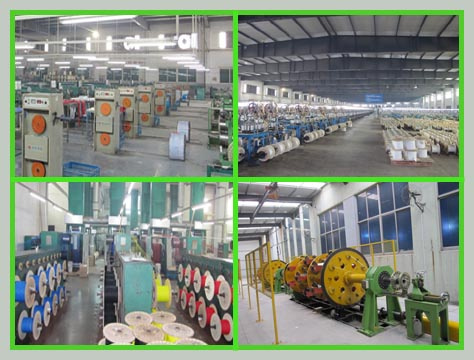

Wuxi Huacheng Cable Co., Ltd. is specialized in production of heat resistant silicone rubber wire & cable, also engaging in its R & D field, total building covers about 20000 square meters, with kinds of advanced Rubber extruding machines, Coating equipment lines, Braiding machines 1500 sets etc. After tens of year constant development, our annual output is more than 250, 000 KMS and became the famous leader and production base in domestic market.

Most of the products have passed USA UL/cUL, Germany VDE, China CCC, Japan F-MARK and ROHS Certification, completely meet with EU environment protect policy requirement, acquired ISO9001: 2000 International Quality Management & ISO14001 Environment Management Certification. All the staff exalt the tenet "Pursue truth, Honor fact, Keep Innovation", insisting on the quality policy of "Customer's wishes oriented, adopting PDCA circulation, continuously improve product and service, fully satisfying customers", based on above, our products sell well everywhere, applying to famous corporations, and even sell far to Occident, Mid-east, Southeast Asia countries and area, acquire good reputation and approval of customers.

More than hundreds of series of products are optional for customer's choice, mainly used for new energy, wind power motor, metallurgy, power, railway, home electrical appliance, lighting relative fields.
