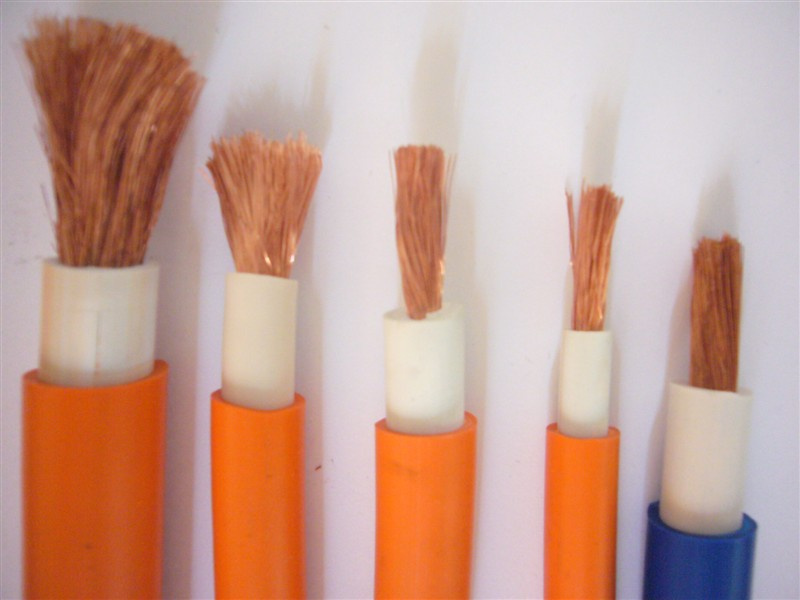

Heat Resistant Rubber Welding Power Cable

Name: Heat Resistant Rubber Welding Power Cable
Brand: all-electronics-online.com
SKU: 667212525
Availability: InStock
Rating: 4.5 (146 reviews)

Price:	Negotiable/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	1000/Meter
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	YH500
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Insulated
Conductor Type:	Stranded
Application:	Underground
Conductor Material:	Copper
Insulation Material:	Rubber
Certification:	VDE
Brand:	Hoochan

Product Description

Competitive price, Fast Delivery
Good quality and after sales services
Strong supply capabilityConductor:bare copper, tinned copper
Insulator: EPR Rubber
Jacket: CPE Rubber

Rated Volt.:300/500V, 450/750V
Test Voltage: 2000V. 5Min
Rated Temp.:-30ºC~+70ºC

Mechnical properties:

Tensile strength: ≥10.3N/mm2

Elongation at break of insulation: ≥150%

Min.Bending radius: 7×OD

Standards: IEC60332-1, IEC60228, VDE 0293

Characteristics:

Rubber cable have good performance: Low hardness with very good flexibility, high tear strength, flame retardant, Thermal stable, can bear from -30ºC ~ +70ºC. It's also good for anti-UV, ozone.
Other similar sytles description: H05RN-F, H05RR-F,H07RN-F,YZW,YZ,YC,YCW

Application:
Rubber insulated power cable is popularly used in locomotive equipment, electric motor, marine cable, mineral, underwater, welding machines etc.

Core×Size	Construction	Insulation		Jacket thickness	Cable OD		Resistance Ω/KM
Core×Size	Construction	Thickness	OD	Jacket thickness	Nominal	Toler.	Resistance Ω/KM
mm²	No./Dia (mm)	mm	mm	mm	mm	mm	Max.
2×0.5	16/0.20	0.6	2.15	0.8	5.9	±0.20	40.1
3×0.5	16/0.20	0.6	2.15	0.8	6.2	±0.20	40.1
4×0.5	16/0.20	0.6	2.15	0.8	6.8	±0.25	40.1
5×0.5	16/0.20	0.6	2.15	0.8	7.4	±0.30	40.1
2×0.75	24/0.20	0.6	2.35	0.8	6.3	±0.20	26.7
3×0.75	24/0.20	0.6	2.35	1.0	7.1	±0.25	26.7
4×0.75	24/0.20	0.6	2.35	1.0	7.7	±0.30	26.7
5×0.75	24/0.20	0.6	2.35	1.0	8.4	±0.30	26.7
2×1.0	32/0.20	0.6	2.55	1.0	7.1	±0.25	20.0
3×1.0	32/0.20	0.6	2.55	1.0	7.5	±0.30	20.0
4×1.0	32/0.20	0.6	2.55	1.0	8.2	±0.30	20.0
5×1.0	32/0.20	0.6	2.55	1.0	8.9	±0.30	20.0
2×1.5	30/0.25	0.6	2.90	1.0	7.8	±0.30	13.7
3×1.5	30/0.25	0.6	2.90	1.0	8.3	±0.30	13.7
4×1.5	30/0.25	0.6	2.90	1.0	9.0	±0.30	13.7
5×1.5	30/0.25	0.6	2.90	1.1	10.0	±0.30	13.7

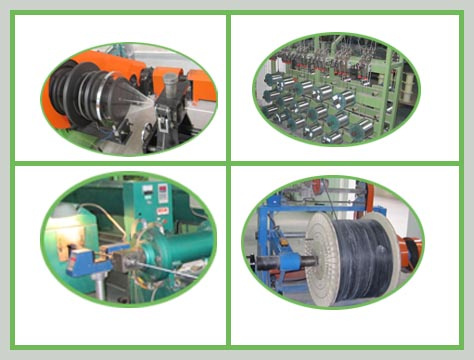

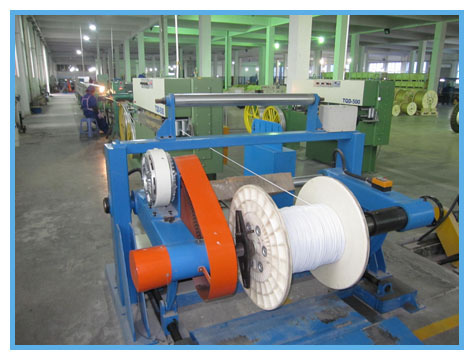

Wuxi Huacheng Cable Co., Ltd. is specialized in production of heat resistant silicone rubber wire & cable, also engaging in its R & D field, total building covers about 20000 square meters, with kinds of advanced Rubber extruding machines, Coating equipment lines, Braiding machines 1500 sets etc. After tens of year constant development, our annual output is more than 250, 000 KMS and became the famous leader and production base in domestic market.

Most of the products have passed USA UL/cUL, Germany VDE, China CCC, Japan F-MARK and ROHS Certification, completely meet with EU environment protect policy requirement, acquired ISO9001: 2000 International Quality Management & ISO14001 Environment Management Certification. All the staff exalt the tenet "Pursue truth, Honor fact, Keep Innovation", insisting on the quality policy of "Customer's wishes oriented, adopting PDCA circulation, continuously improve product and service, fully satisfying customers", based on above, our products sell well everywhere, applying to famous corporations, and even sell far to Occident, Mid-east, Southeast Asia countries and area, acquire good reputation and approval of customers.

More than hundreds of series of products are optional for customer's choice, mainly used for new energy, wind power motor, metallurgy, power, railway, home electrical appliance, lighting relative fields.
