Heat Resistant Silicone Rubber Electric Wire

Heat Resistant Silicone Rubber Electric Wire
Price: Negotiablemtrs
Trade Terms: Sea, Air Shipment
Min Order: 3000mtrs
Pay Type: L/C,T/T,D/P,Western Union
Prod Model: SIF, N2GFAF, SIAF
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type: Insulated
Conductor Type: Stranded
Application: Wire Harness
Conductor Material: Copper
Insulation Material: Silicone Rubber
Certification: RoHS
Brand: Hoochan

Product Description

Competitive price, Fast Delivery
Good quality and after sales services
German VDE approved wire(same as CE standard) Approved No.: 124381
Strong supply capability
Product features
Rated Voltage: 300/300V
Rated temperature: -60+180C DEGREE

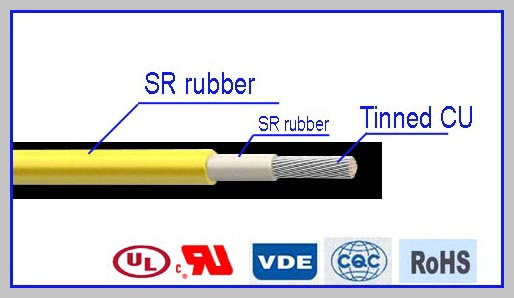

Conductor: Tin-coated, nickel-coated or silver-coated copper wire
Insulator: Silicone rubber
Applicable for high temperature environment such as electron, electrical household appliance internal leading wire, lighting etc. Wire harness, AUTO use.
sectionconductorinsulationwire ODconductor resistance
structurediameternominal thickmin. thicknominalallowance20 Cdegree
mm²No./mmmmmmmmmmmmΩ/KM
0.258/0.200.650.60.441.85±0.1080.9
14/0.15
0.3511/0.200.750.60.441.95±0.1055
20/0.15
0.516/0.20  28/0.15  20/0.180.950.60.442.15±0.1040.1
0.7524/0.20   30/0.181.150.60.442.35±0.1026.7
1.032/0.201.340.60.442.55±0.1020
1.530/0.251.60.70.533±0.1513.7
2.549/0.2520.80.623.6±0.158.21
4.056/0.302.70.80.624.3±0.155.09
6.084/0.303.30.80.624.9±0.153.39

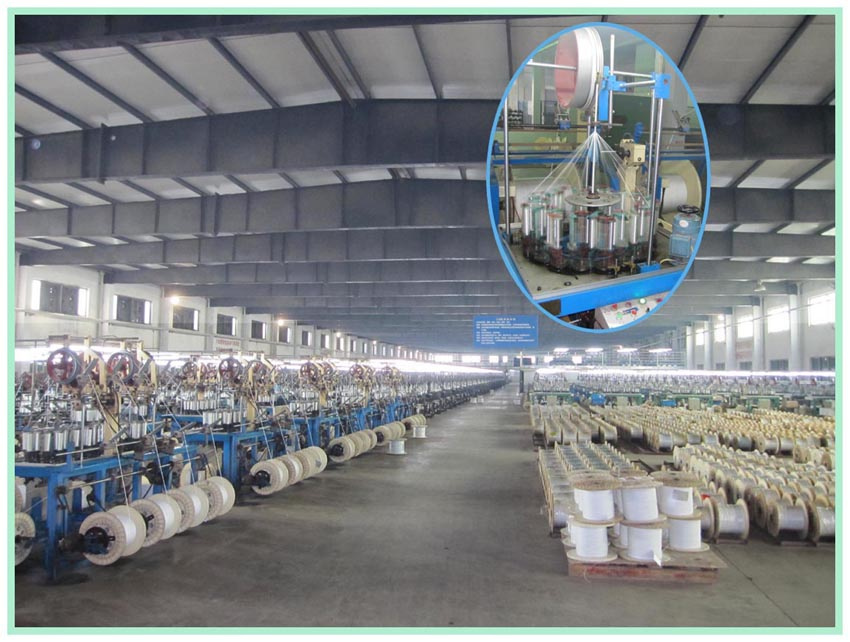

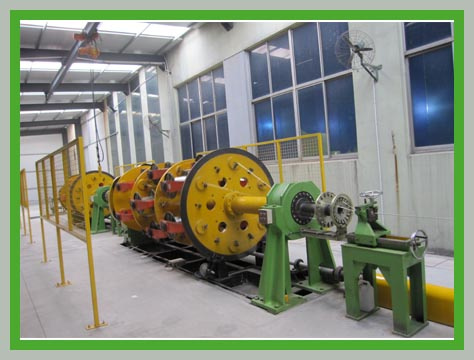

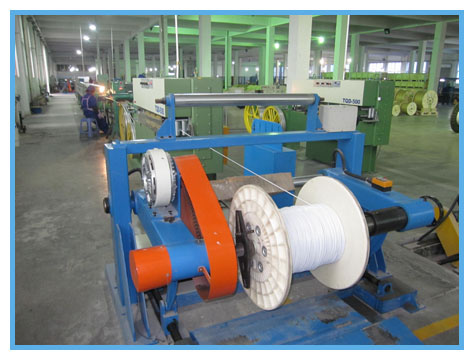

Wuxi Huacheng Cable Co., Ltd. is specialized in production of heat resistant silicone rubber wire & cable, also engaging in its R & D field, total building covers about 20000 square meters, with kinds of advanced Rubber extruding machines, Coating equipment lines, Braiding machines 1500 sets etc. After tens of year constant development, our annual output is more than 250, 000 KMS and became the famous leader and production base in domestic market.

Most of the products have passed USA UL/cUL, Germany VDE, China CCC, Japan F-MARK and ROHS Certification, completely meet with EU environment protect policy requirement, acquired ISO9001: 2000 International Quality Management & ISO14001 Environment Management Certification. All the staff exalt the tenet "Pursue truth, Honor fact, Keep Innovation", insisting on the quality policy of "Customer's wishes oriented, adopting PDCA circulation, continuously improve product and service, fully satisfying customers", based on above, our products sell well everywhere, applying to famous corporations, and even sell far to Occident, Mid-east, Southeast Asia countries and area, acquire good reputation and approval of customers.

More than hundreds of series of products are optional for customer's choice, mainly used for new energy, wind power motor, metallurgy, power, railway, home electrical appliance, lighting relative fields.
