Heat Resistant Silicone Rubber Insulated Power Cable

Name: Heat Resistant Silicone Rubber Insulated Power Cable
Brand: all-electronics-online.com
SKU: 672819995
Availability: InStock
Rating: 4.7 (137 reviews)

Price:	Negotiable/Meter
Min Order:	1000/Meter
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	YGZ
Application:	Power Station
Voltage:	Low and Medium Voltage Cable
Current:	AC Cable
Insulation Material:	Rubber
Certification:	VDE
Sheath Material:	Rubber
Brand:	Hoochan

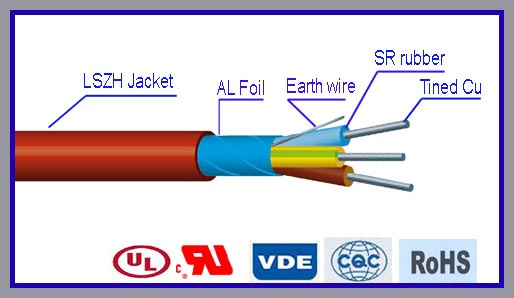

Product Description

Conductor:bare copper, tinned copper
Insulator: silicone rubber
Jacket: Silicone rubber

Rated Volt.:600/1000V
Test Voltage: 3000V. 5Min
Rated Temp.:-60ºC~+180ºC

Mechanical properties

Tensile strength: ≥5N/mm2

Elongation at break of insulation: ≥150%

Min.Bending radius: 5×OD
Characteristics:
Silicone rubber wire & cable have very good flexibility and good performance of resistance to high temperature, range from -55ºC up to 180ºC.
The use of silicone rubber, a high grade corona resistant insulation material, gives the cable excellent dielectric strength.

Application:
Silicone wire & cable are used where high flexibility is required and high temperatuer conditions. It is therefore a suitable connection cable for home electric appliance, high voltage machines like transformers, generators, motors, traction machines.

Core×cross section	Structure	Insulation Thickness		Jacket	Cable OD		20ºC Max.Resist.Ω/KM
Core×cross section	Structure	Nominal	OD	Thickness	Nominal	Toler.	20ºC Max.Resist.Ω/KM
mm²	No./Dia. mm	mm	mm	mm	mm	mm	Bare	Tinned
2×0.5	16/0.20	0.6	2.15	0.8	5.9	±0.20	39.0	40.1
3×0.5	16/0.20	0.6	2.15	0.8	6.2	±0.20	39.0	40.1
4×0.5	16/0.20	0.6	2.15	0.8	6.8	±0.30	39.0	40.1
5×0.5	16/0.20	0.6	2.15	0.8	7.4	±0.30	39.0	40.1
6×0.5	16/0.20	0.6	2.15	0.8	7.6	±0.30	39.0	40.1
7×0.5	16/0.20	0.6	2.15	0.8	8.1	±0.20	39.0	40.1
2×0.75	24/0.20	0.6	2.35	0.8	6.3	±0.25	26.0	26.7
3×0.75	24/0.20	0.6	2.35	0.8	6.7	±0.30	26.0	26.7
4×0.75	24/0.20	0.6	2.35	1.0	7.7	±0.30	26.0	26.7
5×0.75	24/0.20	0.6	2.35	1.0	8.4	±0.30	26.0	26.7
6×0.75	24/0.20	0.6	2.35	1.0	8.6	±0.30	26.0	26.7
2×1.0	32/0.20	0.6	2.55	1.0	7.1	±0.25	19.5	20.0
3×1.0	32/0.20	0.6	2.55	1.0	7.5	±0.30	19.5	20.0
4×1.0	32/0.20	0.6	2.55	1.0	8.2	±0.30	19.5	20.0
5×1.0	32/0.20	0.6	2.55	1.0	8.9	±0.30	19.5	20.0
6×1.0	32/0.20	0.6	2.55	1.0	9.2	±0.30	19.5	20.0
7×1.0	32/0.20	0.6	2.55	1.0	9.7	±0.30	19.5	20.0
2×1.5	30/0.25	0.6	2.9	1.0	7.8	±0.30	13.3	13.7
3×1.5	30/0.25	0.6	2.9	1.0	8.3	±0.30	13.3	13.7
4×1.5	30/0.25	0.6	2.9	1.0	9.0	±0.30	13.3	13.7
5×1.5	30/0.25	0.6	2.9	1.1	10	±0.30	13.3	13.7
6×1.5	30/0.25	0.6	2.9	1.1	10.4	±0.30	13.3	13.7
7×1.5	30/0.25	0.6	2.9	1.1	10.9	±0.30	13.3	13.7
10×1.5	30/0.25	0.6	2.9	1.2	14	±0.30	13.3	13.7
2×2.5	50/0.25	0.7	3.4	1.2	9.2	±0.30	7.98	8.21
3×2.5	50/0.25	0.7	3.4	1.2	9.8	±0.30	7.98	8.21
4×2.5	50/0.25	0.7	3.4	1.2	10.6	±0.30	7.98	8.21
5×2.5	50/0.25	0.7	3.4	1.2	11.6	±0.30	7.98	8.21
6×2.5	50/0.25	0.7	3.4	1.2	12	±0.30	7.98	8.21
7×2.5	50/0.25	0.7	3.4	1.2	12.6	±0.30	7.98	8.21

Core×cross section	Structure	Insulation Thickness		Jacket	Cable OD		20ºC Max.Resist.Ω/KM
Core×cross section	Structure	Nominal	OD	Thickness	Nominal	Toler.	20ºC Max.Resist.Ω/KM
mm²	No./Dia. mm	mm	mm	mm	mm	mm	bare	Tinned
2×4	56/0.30	0.8	4.3	1.2	11.2	±0.30	4.95	5.09
3×4	56/0.30	0.8	4.3	1.3	12.0	±0.30	4.95	5.09
4×4	56/0.30	0.8	4.3	1.5	13.5	±0.30	4.95	5.09
5×4	56/0.30	0.8	4.3	1.5	14.8	±0.40	4.95	5.09
6×4	56/0.30	0.8	4.3	1.8	15.7	±0.40	4.95	5.09
7×4	56/0.30	0.8	4.3	1.8	16.6	±0.40	4.95	5.09
12×4	56/0.30	0.8	4.3	2.2	22.4	±0.50	4.95	5.09
2×6	84/0.30	0.8	4.9	1.5	13.0	±0.30	3.30	3.39
3×6	84/0.30	0.8	4.9	1.5	13.7	±0.30	3.30	3.39
4×6	84/0.30	0.8	4.9	1.8	15.6	±0.40	3.30	3.39
5×6	84/0.30	0.8	4.9	1.8	17.0	±0.40	3.30	3.39
6×6	84/0.30	0.8	4.9	2.0	18.0	±0.40	3.30	3.39
7×6	84/0.30	0.8	4.9	2.0	18.8	±0.40	3.30	3.39
2×10	84/0.40	1.0	6.6	1.8	17.0	±0.40	1.91	1.95
3×10	84/0.40	1.0	6.6	2.0	18.4	±0.50	1.91	1.95
4×10	84/0.40	1.0	6.6	2.2	20.6	±0.50	1.91	1.95
5×10	84/0.40	1.0	6.6	2.4	22.8	±0.50	1.91	1.95
2×16	126/0.40	1.2	8.2	2.0	22.6	±0.50	1.21	1.24
3×16	126/0.40	1.2	8.2	2.2	22.4	±0.50	1.21	1.24
4×16	126/0.40	1.2	8.2	2.4	25.0	±0.50	1.21	1.24
5×16	126/0.40	1.2	8.2	2.6	27.6	±0.50	1.21	1.24
2×25	196/0.40	1.4	10.1	2.2	25.0	±0.50	0.78	0.795
3×25	196/0.40	1.4	10.1	2.4	27.0	±0.50	0.78	0.795
4×25	196/0.40	1.4	10.1	2.4	29.5	±0.50	0.78	0.795
5×25	196/0.40	1.4	10.1	2.6	32.8	±0.60	0.78	0.795
2×35	276/0.40	1.4	11.4	2.4	28.0	±0.50	0.554	0.565
3×35	276/0.40	1.4	11.4	2.6	30.0	±0.50	0.554	0.565
4×35	276/0.40	1.4	11.4	2.6	33.0	±0.60	0.554	0.565
3×50	396/0.40	1.6	13.9	2.8	36.0	±0.60	0.386	0.393
4×50	396/0.40	1.6	13.9	2.8	39.6	±0.60	0.386	0.393
3×70	360/0.50	1.6	15.6	3.0	40.0	±0.60	0.272	0.277
3×95	475/0.50	1.8	18.1	3.2	45.8	±0.60	0.206	0.210
3×120	608/0.50	2.0	20.0	3.6	50.6	±0.80	0.161	0.164
3×150	756/0.50	2.2	22.4	3.8	56.2	±0.80	0.129	0.132
3×185	925/0.50	2.4	24.8	4.0	61.8	±1.0	0.106	0.108
3×240	1221/0.50	2.6	28.2	4.2	69.4	±1.0	0.0801	0.082

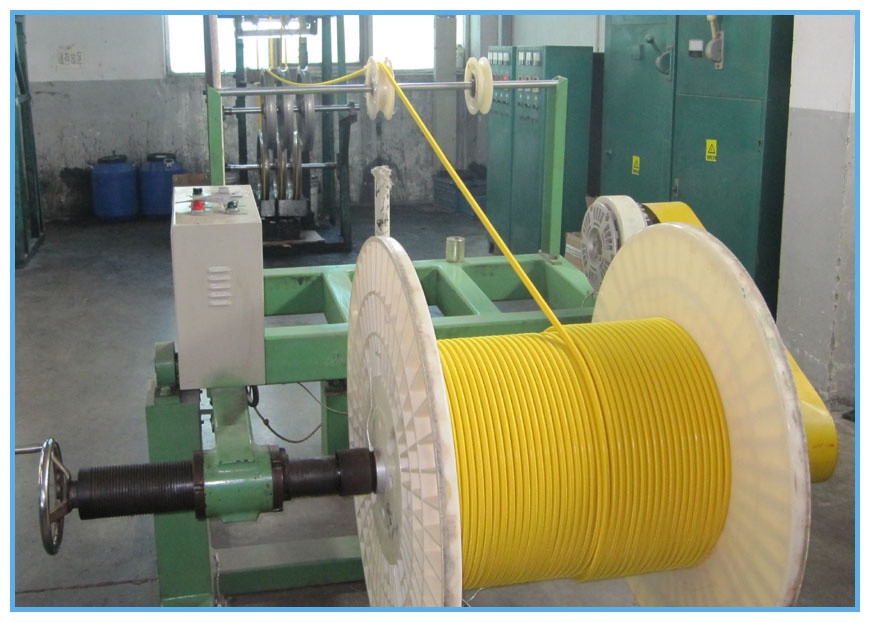

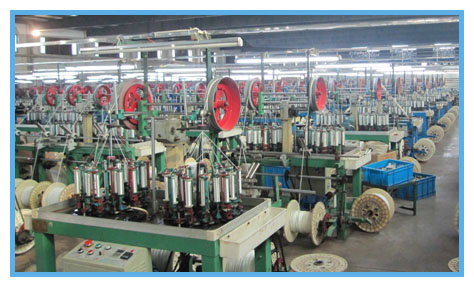

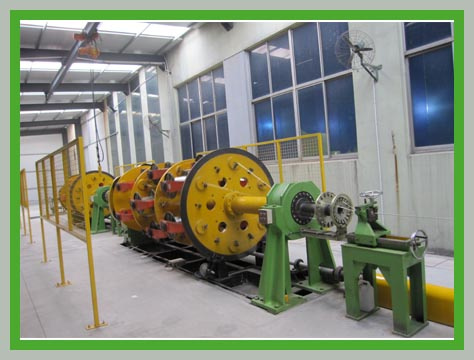

Wuxi Huacheng Cable Co., Ltd. is specialized in production of heat resistant silicone rubber wire & cable, also engaging in its R & D field, total building covers about 20000 square meters, with kinds of advanced Rubber extruding machines, Coating equipment lines, Braiding machines 1500 sets etc. After tens of year constant development, our annual output is more than 250, 000 KMS and became the famous leader and production base in domestic market.

Most of the products have passed USA UL/cUL, Germany VDE, China CCC, Japan F-MARK and ROHS Certification, completely meet with EU environment protect policy requirement, acquired ISO9001: 2000 International Quality Management & ISO14001 Environment Management Certification. All the staff exalt the tenet "Pursue truth, Honor fact, Keep Innovation", insisting on the quality policy of "Customer's wishes oriented, adopting PDCA circulation, continuously improve product and service, fully satisfying customers", based on above, our products sell well everywhere, applying to famous corporations, and even sell far to Occident, Mid-east, Southeast Asia countries and area, acquire good reputation and approval of customers.

More than hundreds of series of products are optional for customer's choice, mainly used for new energy, wind power motor, metallurgy, power, railway, home electrical appliance, lighting relative fields.
