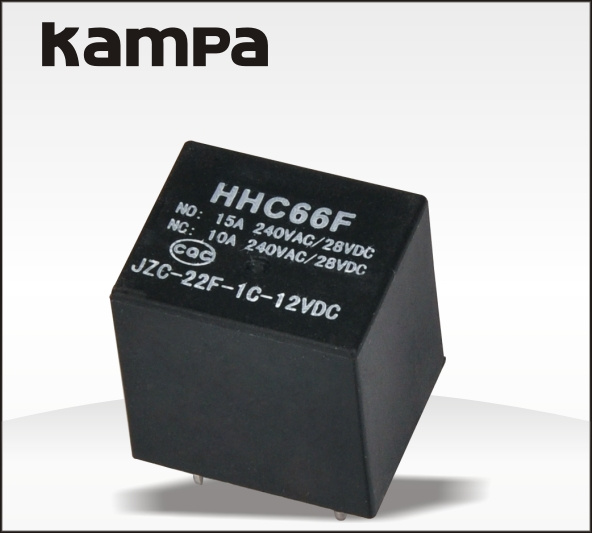

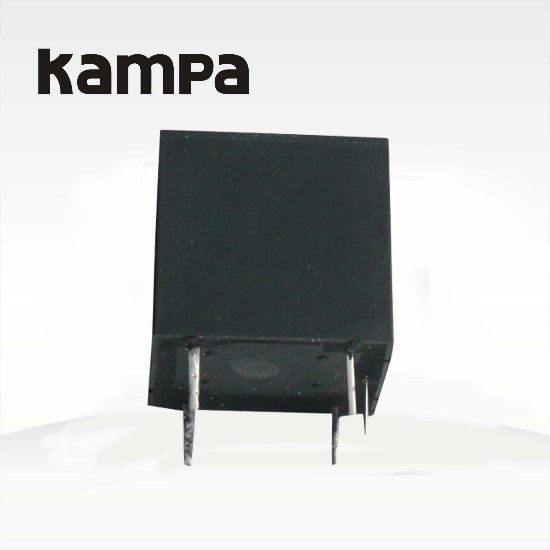

Hhc66f 10A 250VAC Small Size Eletromagnetic PCB Relay

Name: Hhc66f 10A 250VAC Small Size Eletromagnetic PCB Relay
Brand: all-electronics-online.com
SKU: 818288855
Availability: InStock
Rating: 4.9 (57 reviews)

Price:	US $ 0.158/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	HHC66F
Contact Type:	1z,1h,1d
Contact Overload:	15A
Rated Coil Power:	1.6W
Coil Specification:	DC12~24V
Dimension:	26.8X21.5X22.5mm

Product Description

Part NO.			HHC66F(JZC-22F)

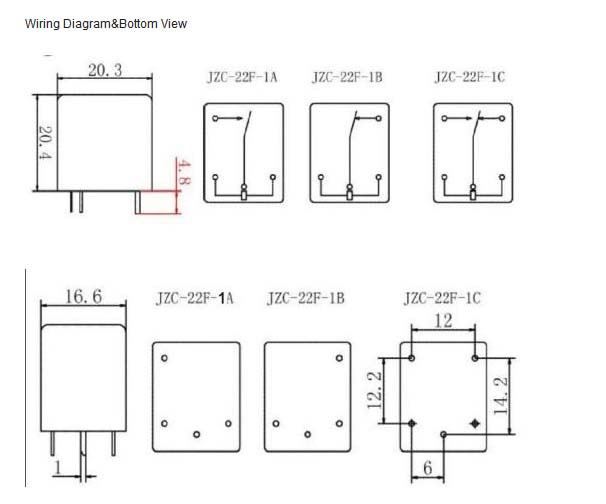

Dimension			*20.316.620.4*
Contact Feature	Form		1A,1B,1C
	Rated load		10A	15A
	Max switching voltage		240VAC/28VDC	NC:125V,NO:240VAC/28VDC
	Contact resistance		≤100mΩ
	Material		Silver Alloy
	Electrical life		*≥1105(Frequency:1S ON/1S OFF)**		*≥1105(Frequency:1.5S ON/1.5S OFF)**
	Mechanical life		*≥1107(Frequency:300times/1Min)**
Operate voltage (25)			*DC:≤75%Rated voltage**
			/
Release voltage (25)			*DC:≥10%Rated voltage**
			/
Maximum voltage (25)			*110%Rated voltage**
Normal coil voltage		DC	3-48V
		AC	/
Normal coil power		DC	0.36W
		AC	/
Pick-up time(Rated voltage)			≤10ms
Release time(Rated voltage)			≤5ms
Dielectric strength	Between Same-pole contacts		1200VAC/1min(leakage current 1mA)
	Between Opposite-pole contacts
	Between contacts and coil		1500VAC/1min(leakage current 1mA)
Insulation resistance			≥100mΩ(500VDC)
Ambient temperature			-55?~70
Ambient humidity			35%-80%RH
Atmospheric pressure			86-106KPa
Shock resistance			10G (sinusoidal half-wave pulse: 11ms)
Vibration resistance			10-55Hz (double amplitude: 1.0mm)
Installation			PCB
Packing		Inner box	Paper box(PCS	100
		Outer box	Paper box(PCS)	1000
		Dimension of the carton	CTN	*390230195MM*
		Weight	1PC	Approximate 12g
			1CTN	G.W:12.55KG N.W:11.25KG
