High Breaking Capacity Mini Circuit Breaker

Name: High Breaking Capacity Mini Circuit Breaker
Brand: all-electronics-online.com
SKU: 826677945
Availability: InStock
Rating: 4.4 (145 reviews)

Price:	US $ 1.66/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	CDSB3
Colour:	Grey
Primary Current:	5A~5000A
Class:	0.5/1.0
Frequency:	50/60Hz
Rated Voltage:	220V
Breaking Capacity:	Low Voltage Circuit Breakers
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Structure:	MCB
Certification:	CE

Product Description

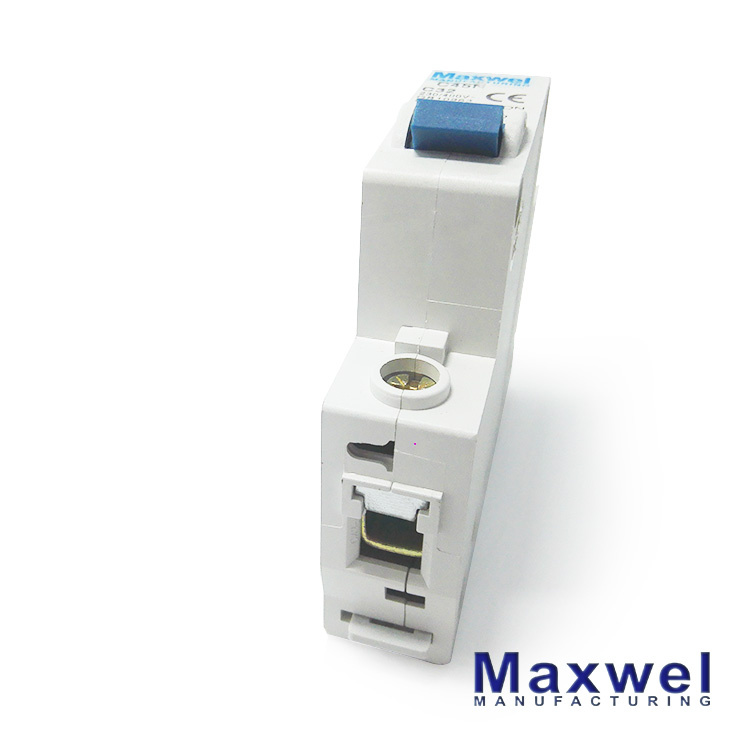

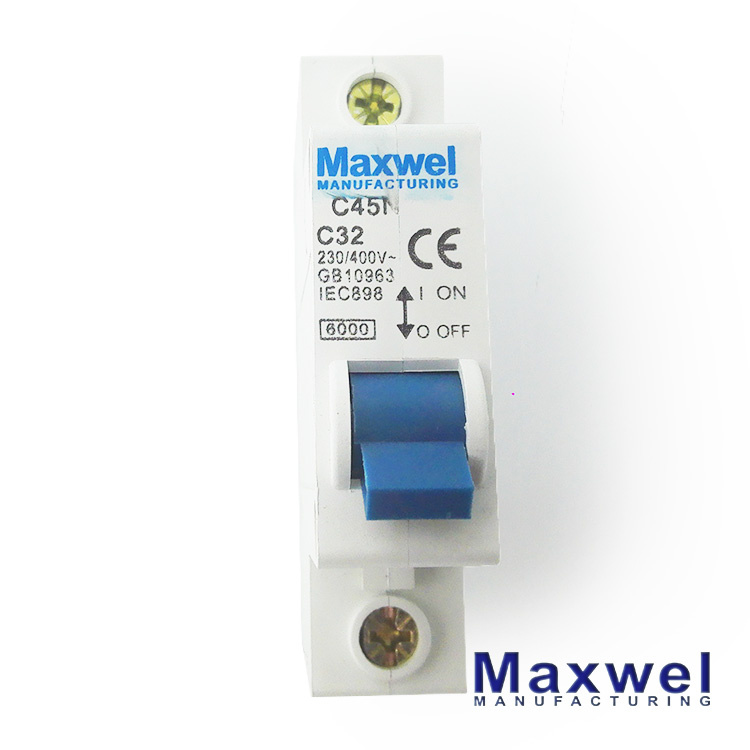

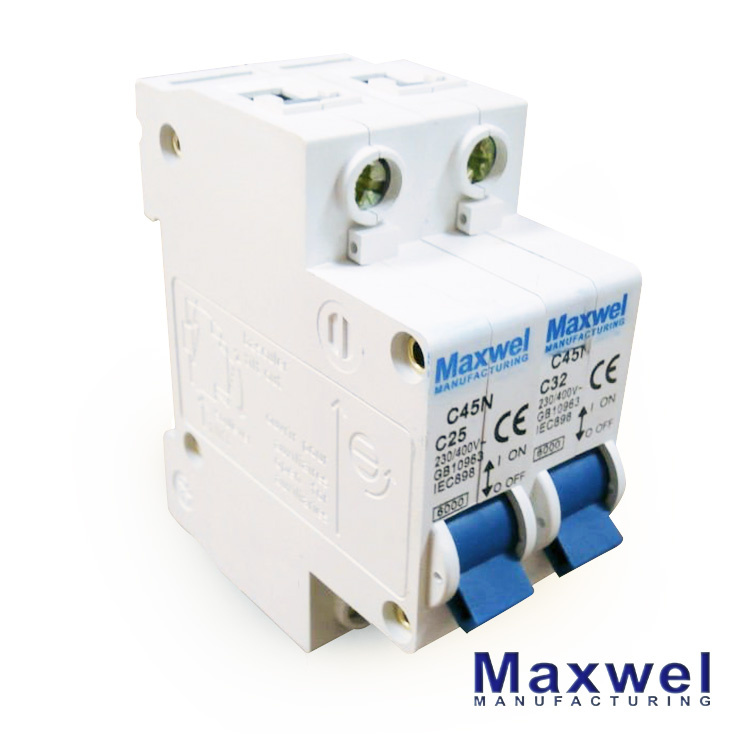

High breaking capacity Mini circuit breaker
Application
The product of CDSB3 belong to the advanced level of the nineties in the international instead of the older generation of CDSB3.They have protect tive function as shoryage as overload,and are used in lighting distribution system in industy,commerce and dwelling,fractional electric motors,And they have many mertis of high protective grade(up to IP20)high breaking capacity,reliable sensitive action,convenient,multipole assembing,long life ect.They are mainly adapted to the circuit of AC50HZ,230V in single pole,400v in double,three,fourpoles for protecting overload and short circuit,Meanwhile,they are also used in turing on or off the electric apparatus and lighting circuit under the normal condition.
Specification:

No,of pole:1P,2P,3P,4P

Rated Voltage:230/400v

Mechanical and Electrical life:(0-c)not less than 6000 times

Rated current:1,2,3,4,6,10,16,20,25,32,40,50,63A

Protective grade:IP20

Accodring to standands:IEC898-7
GB1096-89 BS3871

Weight(g)	1P	2P	3P	4P
Weight(g)	102	208	308	408

Product Details:

Website:www.maxwel.com

About Maxwel Electric

At Maxwel Electric, we efficiently produce a wide variety of tapes and electrical products. Our factory is ISO 9001: 2000-certified, and our products meet various international standards for easier market entry.

A large range for your selection

You can come to us for self-amalgamating, semi-conducting, butyl, mastic, sealing, PVC and aluminum foil tapes. We also manufacture miniature circuit breakers, residual current circuit breakers, residual current circuit breakers with over-current protection, switch disconnectors, distribution boxes and more.

Contact us

Our factory is equipped with state-of-the-art testing equipment, and we perform inspections during every step of production to ensure quality. To learn more, contact us today.
