High Effeciency 20mm Mini NEMA8 Stepper Motor for Electronics

Name: High Effeciency 20mm Mini NEMA8 Stepper Motor for Electronics
Brand: all-electronics-online.com
SKU: 767654915
Availability: InStock
Rating: 4.7 (137 reviews)

Price:	US $ 8.57-9.16/Piece
Trade Terms:	FOB,CFR,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	JK20HS
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Step Angel:	1.8degree
Motor Length:	28-38mm
Current:	0.2-0.6A
Motor Weight:	0.05-0.08kg
Holding Torque:	160-400g.Cm
Number Of Stator:	Two-Phase
Excitation Mode:	HB-Hybrid
Operate Mode:	Three Phase Double Beat
Type:	Electromechanical
Certification:	CE and RoHS

Product Description

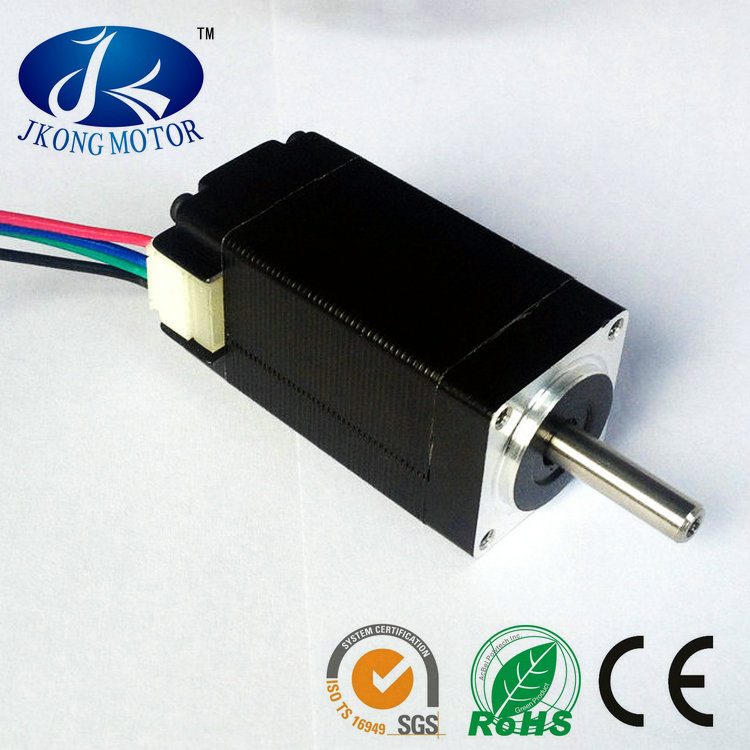

High Effeciency 20mm Mini NEMA8 Stepper Motor for Electronics

Nema 8 Hybrid Stepper Motor
Model Number: JK20HS
Phase: 2 Phase
Lead Wire (No.): 4/6
Structure: Hybrid
Step Angle: 1.8°
Motor Height: 30 mm
Holding Torque:160-400 g.cm
Speed: Low speed
Certification: CE, ROHS, ISO9001

Description:
1.8 degree Size 20mm Hybrid stepper motor.
Hybird Stepper Motors
1) CE and RoHS approved
2) We can develop customer design version

Applications:

Use for robots stepper motor,
Electronic automatic equipment stepping motor,
Medical instrument stepping motor,
Advertisementing instrument stepper motor,
Lighting& audio equipment stepper motor,
Printer stepper motor,
Textile machinery stepper motor.
Cnc router stepper motor.
Electrical Specification:

Model No.	Step Angle	Motor Length	Current /Phase	Resistance /Phase	Inductance /Phase	Holding Torque	Lead wires	Motor Weight
Model No.	( °)	(L)mm	A	ohm	mH	g.cm	No.	Kg
JK20HS30-0604	1.8	30	0.6	6.5	1.7	180	4	0.05
JK20HS33-0604	1.8	33	0.6	6.5	1.7	180	4	0.06
JK20HS38-0604	1.8	38	0.6	10	5.5	400	4	0.07
JK20HS42-0604	1.8	42	0.8	5.4	1.5	300	4	0.08

About our manufacturer:
We are a professional manufacturer for Stepper motor, Stepper driver, BLDC motor and DC motor. we can supply OEM service.
Our products all with CE and ROHS.
Welcome you visit our company Changzhou Jingkong Motor&Electric Appliance Co., Ltd

if you need more information. please contact with us, our contact information:

Changzhou Jingkong Motor&Electric Appliance Co., Ltd

Contact Person: MISS Alice

Fax: 0086 519 88713769

Changzhou Jingkong Motor&Electric Appliance Co., Ltd. Was found in 2005 located in High Technology Industry Zone in changzhou, China, has more than 100 staff and occupies an area of more than 3000 square meters. Now we are already passed RoHS and CE testing.

We offer excellent stepper motors, Stepper Motor Driver, DC Servo Motor, stepper Motor Power Supply, Stepper Motor Kit, CNC router. These are the best motors on the market. Stepper Motor is used on CNC router, CNC lathes, small to MID-sized CNC mills & milling machines, Laser Engravers and Laser cutters, Vinyl Sign Cutters, CNC Plasma Cutters, and CNC Foam Cutters. The stepper motor also has been used in precision telescope positioning systems and robots. Low inductance and high torque make these Motor the best choice.

We are an professional manufacturer for stepper motor, stepper driver, BLDC motor and DC motor.

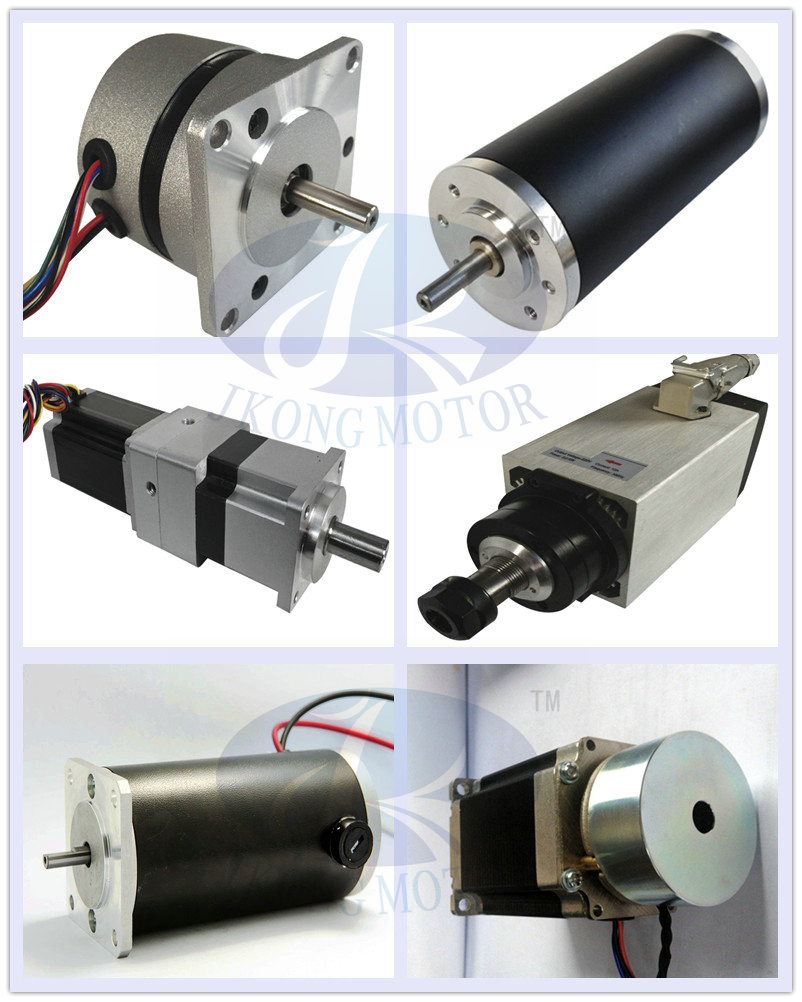

We make hybrid stepper motor, hybrid gear stepper motor, hybrid stepper motor driver, brushless DC motor. Spindle motor,

For stepper motor mainly have 20mm(8), 28mm(NEMA 11), 35mm(NEMA 14), 39mm(NEMA 16), 42mm(NEMA 17), 57mm(NEMA 23), 60mm (NEMA24), 86mm (NEMA 34), 110mm (NEMA 42) and so on.

Competotive price and high quality. Hope can cooperate with you.
