Foshan Tanfon Energy Technology Co., Ltd. >> High-Frequency 2000W Pure Sine Wave off Grid Inverter

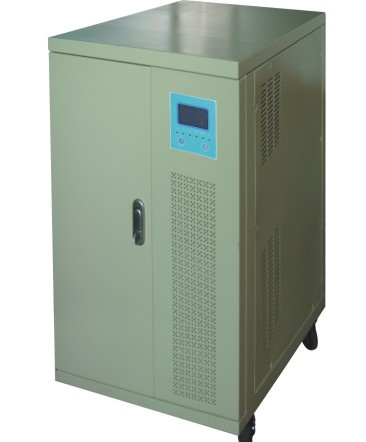

High-Frequency 2000W Pure Sine Wave off Grid Inverter

High-Frequency 2000W Pure Sine Wave off Grid Inverter
Price: US $ 538/Piece
Trade Terms: FOB
Min Order: 1/Piece
Pay Type: T/T,Western Union
Prod Model: T2K
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Input Voltage: 24V/48V/96V
Material: Copper Transformer
Output Voltage: 3 Phase 380vac± 10%
Frequency: 50Hz or 60Hz
Display: LCD Display
Delivery Time: 7 Day for Sample
Warranty: 18 Month
Size: 565*231*517mm
After Sale Service: Ship The Free Parts
Phase: Three
Type: Inverters

Product Description

Three phase Inverter Feature:

Capacity: 1KW--100KW
1) super wide input voltage: 285V-475V
2) completely controlled by CPU, LCD automatic page turning display
3) protection against output short-circuit; Against overload, and when you throw off its load, it will turn on the unit automatically.
4)working for single phase and three phase.
110V/220V single phase; 240V/380V/415V/440V option.
5) with charger built-in, its charging current is 10A----156A.
6) different DC volage: 24V, 48V, 96V, 384V for optional
7) make it with 3 PCS PCB box, it is more stable design.
8)this kinds inverter can take pump or lift, and other industrial use

Foshan tanfon energy technology Co., Ltd is a professional manufacturer of solar system products, wind turbine system products, home system products, pure sine wave inverter(single phase and three phase), solar /wind controller, wind turbine, batterys energy products.

Good quality, best price and better technical support and service, make Tanfon energy technology Co., Ltd as your most valuable cooperator in China.
MODEL T1K T3K T5K T10K T15K T20K T30K T60K T100K
Power 1KW 3KW 5KW 10KW 15KW 20KW 30KW 60KW 100KW
Power Factor 0.8
Input   Phase 3 phase 4 wire and ground
  Voltage Range 380V± 20%(3 phase), phase voltage 220V
  Frequency Range 45 – 65Hz
  Rectifier 3 phase 6 pulses, 12 pulses is optional
Output   Phase 3 phase 4 wire and ground
  Wave form Pure sine wave
  Crest Factor 3: 01
  Rated voltage 380/400/415V optiona+ -1% for static load, 5% forfluctuant load
  Phase voltage setting 200 - 244VAC, pls confirm when order
  Transient response +/-5%, 10ms
  Frequency 50 / 60 Hz + / - 0.05%
  Total-harmonic    distortion < 3% linear load, < 5%( nonlinear load)
  Short circuit current Short current for 0.1s (200% current)
  Overload capacity Overload 125% for 10 Mins, 125%-150% for 1min. automatically resume when load become normal
Battery   Battery Maintenance free lead-acid cell
  DC Voltage 48v or 96V(1-15KW) 384V
  Max Charge Current 6-30A adjustable
Bypass   Type Static state + manual maintenance bypass
  Input Phase 3 phase 4 wire and ground
  Input voltage range 15% - 25% (the front control panel selectable)
  Transfer time Inverter / bypass transfer switch time(Overload): 0ms inverter / bypass transfer switch time (fault inverter) 1ms
Efficiency

  Whole unit > 85%
  Inverter 91 91 92 92 93 93 95 95 95
  Remote signaling Dry contact (battery low, battery discharging, bypass/ fault); output 12Vdc/80mA, Optional parts
  Communication interface RS232 ( SNMP, modem optional )
  Running temperature 0-40 degree Celsius
  Relative Humidity Less than 95% (without condensing)
  Noise at 1 M less than 60 dB
  Degree of protection IP20
  Applicable Standards EN50091-1-EMC EN50091-2liv. A
  Product size(mm) 560*230*570 590*470*730 900*600*1380 1200*900*1820
  product weight(Kg) 30 40 54 104 125 190 380 690 800
  Package size(mm) 640*300*730 690*570*850 1135*810*1430 1450*1110*1880
  Package weight(Kg) 32 50 60 123 145 215 420 750 860
