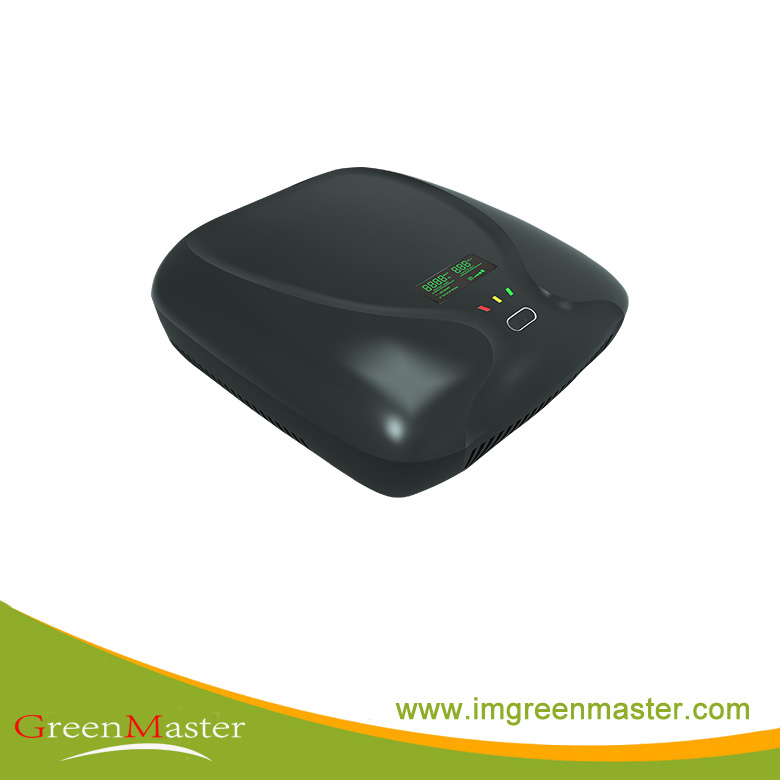

High Frequency Home UPS (Inverter with Charger)

Name: High Frequency Home UPS (Inverter with Charger)
Brand: all-electronics-online.com
SKU: 839516695
Availability: InStock
Rating: 4.4 (114 reviews)

Price:	US $ 55-70/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	HAX
Power Source:	Electric Power
Output Power:	>1000W
Nature Of Wave String:	Sine Wave Inverter
Sine Wave Inverter:	Passive Inverter
Passive Inverter:	Push-Pull Type
Certification:	Ce, ISO9001, UL
Protection:	Overvoltage
Phase:	Single
Type:	DC/AC Inverters
Application:	Electric Razor
Classification:	DC to AC
Standby UPS:	Pure Sine Wave
Brand:	Greenmaster

Product Description

High Frequency Home UPS (Inverter with Charger)

Key words

1.High frequency Modified Sine Wave power inverter with charger

2.High efficient and less self-consumption

3.Auto Transfer between AC and DC Mode around 15Ms

4.Auto Restart while AC resume

5.Three stage, selectable Charge current

6.15A/20AMP/12VDC,10Amp/24VDC

7.OFF Charge Function

8.Wide input range: 90-280V narrow input range 165-275, selectable

9.PROTECTION: Over Load / Over Voltage /Low Voltage /Battery Low / Short Circuit

10.Reverse DC polarity Protection

11.LED and LCD display and Alarm function

12.Plastic cabinet, light and small

Technical data

ITEM		HAX-1000	HAX-2000
Capacity	VA/W	1000VA/660W	2000VA/1440W
	Phase	Single phase, L+N+G
	Voltage	110/120VAC or 220/230/240VAC
		90-145VAC or 170-280VAC (Narrow range)
Input	Voltage Range	50-145VAC / 90-280VAC (Wide range)
	Phase	Single
	Voltage	120VAC or 230VAC
	Voltage Regulation	10%-18% (Bat. Mode)
	Frequency	50HZ or 60HZ
	Frequency Regulation	0.1 Hz(Batt. Mode)
Output	Output waveform	Modified sine wave (Bat. Mode)
	Voltage	12VDC	24VDC
	Charger Current	15Amp or 20Amp selectable	10Amp
	Floating Voltage	13.7V+/-0.2V	27.4V+/-0.4V
Battery	Overcharge protection	16V ± 0.4V	32V ± 0.4V
Transfer time	Typical	around 15ms, 40ms max
Efficiency	AC to AC	>95%
	DC to AC	>80%

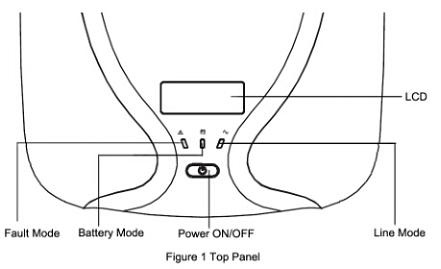

Display	LED	Line Mode,off-Charge mode,bat mode,charging status,overload,Fault
	LCD	Input W and VAC,output W and VAC,battery rate,working mode
	Low battery	Sounding every 2 seconds
	Overload	Sounding every 0.5 second
Audible Alarm	Fault	Continuously sounding
Audible Alarm	Fault	Over Discharge, Overcharge, Overload protection, Short Circuit, Battery Shot, Over Voltage and
Protection		Under Voltage
Product size	mm	26524582mm
Product weight	kg	2.2	2.5
Carton size	mm	385377556mm/ 6PCS
Carton weight	(Net / Gross)kg	11/13KG,6PCS	13/15KG,6PCS
