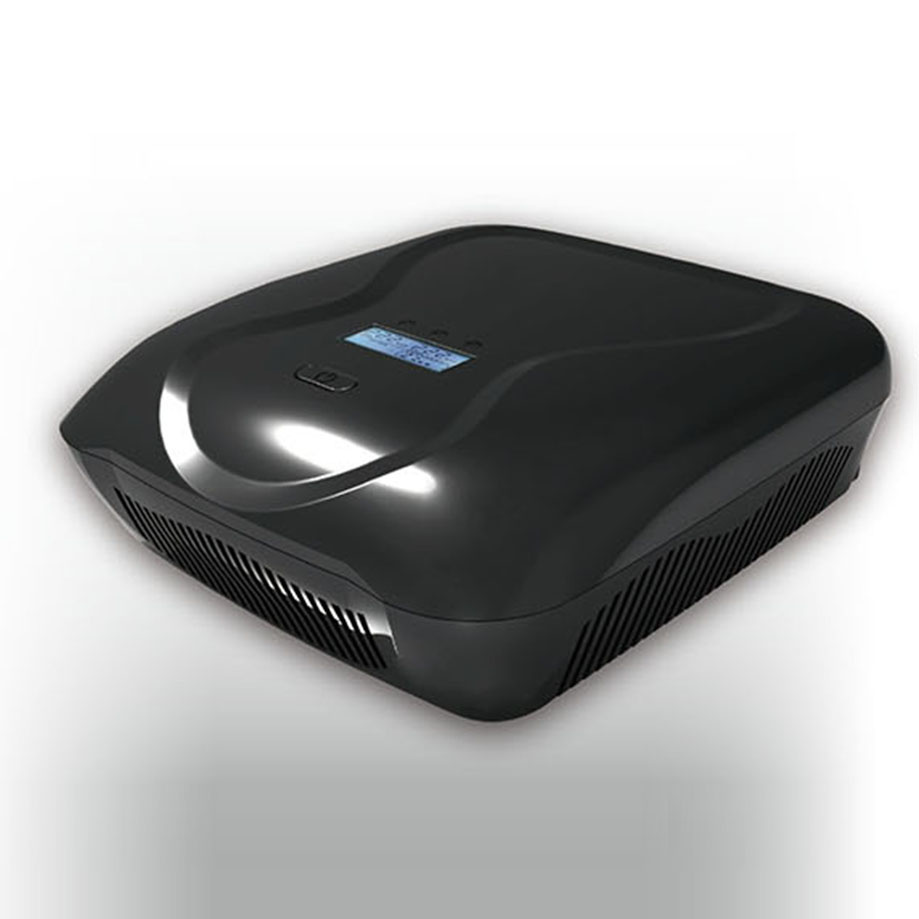

High Frequency Modified Sine Wave Inverter

High Frequency Modified Sine Wave Inverter
Price: Negotiable/Piece
Trade Terms: FOB,EXW
Min Order: 1/Piece
Pay Type: T/T,Paypal
Prod Model: WSPEP1100
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Charge: Three-Steps Intelligent Charge Controller
Phase: Single
Type: DC/AC Inverters
Power Source: Electric Power
Output Power: >1000W
Brand: OEM

Product Description

High Frequency Modified sine wave inverter
1.Charge current 10A/20A adjustable
2.Double layer PCB board
3.Compact size for convenient use
4.Three-steps intelligent charge controller
5.With Battery Reverse
6.Home use for DVD,TV,Lights and Fans
7.With battery cable 10AWG 60cm

Intruduction:

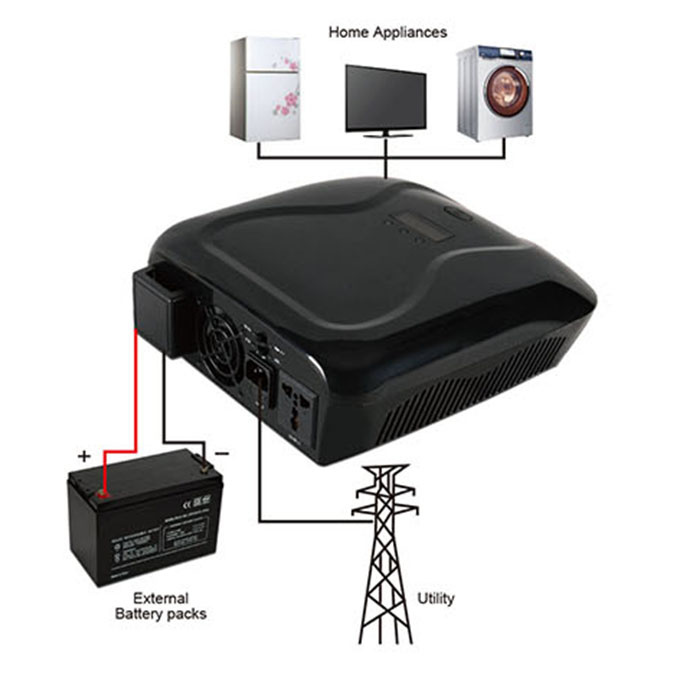

It apply to TV,stereos,laptop and desktop computers and other home appliance. It will automatically transfer to inverter and provide power when AC supply is interrupted unexpectedly.


Specification




ModelEP11-1200EP11-2000
Default Battery System Voltage12VDC24VDC
Inverter OutputRated Power1200VA/720W2000VA/1440W
WaveformModified sine wave
Nominal Output Voltage RMS230V
Output Voltage Regulation+10/-18%
Output Frequency50Hz/60Hz±0.5Hz
Inverter Efficiency(Peak)>80%
Line Mode Efficiency>95%
Power Factor0.6
Typical Tranfer TimeTypical 15-20ms 40ms max
AC InputVoltage230VAC
Selectable Voltage RangeNarrow170-280VAC
Wide90-280VAC
Frequency Rang50Hz/60Hz(Auto sensing)
BatteryNominal input Voltage12VDC24VDC
Minimum Start Voltage10.5VDC21VDC
Low Battery Alarm10.5VDC±0.3V 21VDC±0.3V
Low Battery Cutoff10.0VDC±0.3V 20VDC±0.3V
High Voltage Alarm16.0VDC±0.3V32VDC±0.3V
High Battery Voltage recover15.0VDC±0.3V30VDC±0.3V
ChargerCharger Voltage(Vbat<12.5v)Depends on battery type
Charger Voltage(Vbat>12.5v)10A30A
Charging Current 10A10A±2A
Charging Current 20A20A±2A
Overcharge Protection S.D.16.0VDC±0.4V32VDC±0.8V
Bypass&
protection
Nominal input frequency50Hz or 60Hz
Overload Protection(SMPS Load)Fuse
Output Short Circuit ProtectionFuse
Bypass Fuse Rating10A
Max Bypass Current10Amp
Mechanical SpecificationsDimensions(W*H*D)253*267*90mm
Net weight (kg)2.32.5
Shipping Dimensions(W*H*D)319*328*123mm
Shipping Weight (kg)2.93.1
OtherOperation Temperature0ºC to 40ºC
Audible Noise60dB MAX
DisplayLED+LCD
Standard Warrantyone year
Loading(20GP/40GP/40HQ)1800pcs/3600pcs/4200pcs
* Product specifications are subject to change without further notice






Approximate Back-up Time Table



Power Rate(w)Backup time(H)
@1*100AH
Backup time(H)
@2*100AH
Backup time(H)
@4*100AH
Backup time(H)
@4*200AH
Backup time(H)
@8*200AH
10000.48061.6023.503047.6896
20000.21360.48061.6023.503047.6896
30000.10680.28480.85442.1364.8416
4000
0.21360.48061.6023.50304
5000
0.128160.341761.196162.73408
6000
0.10680.28480.85442.136
