| Prod Model: |
Rack Mount Star Series |
| Phase: |
Single Phase |
| Type: |
On-line |
| Protection: |
Over Load/Current/Voltage, Short Circuit etc |
| Application: |
Servers, Data-Enter Critical Network Devices |
| Brand: |
Upsen or OEM |
Product Description

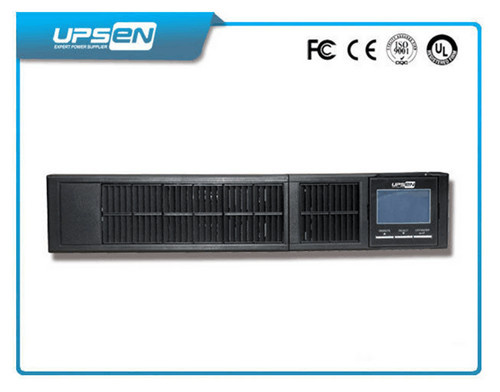

High Frequency Online PFC Rack Mountable UPS 1KVA / 2KVA / 3KVA With RS232 Interface
High Frequency Online UPS Rack Tower Star Series RT 1K-10KVA(1Ph in/1Ph out)
Key Features:
1:Rack Mount - Tower Convertible
2:True on-line double conversion technology with advanced microprocessor control
3:Active Input Power Factor Correction (PFC), UPS can correct the input power factor. Under full load, the input power factor can reach over 0.95 so that the electric environment of the users will not be polluted.
4:Full automatic and silent operation
5:It sdopts standard frame structure design. The structure is compact.
6:Sine wave output no matters in AC mode or battery mode can provide sine wave power source with low distortion. It provides the best power source guarantee for the load equipments for users.
7:Site wiring fault warning
8:Diverse options of accessories, intelligent management
9:Compact size for convenient use and storage
10:It has voltage breakthrough protection and strong anti-interference function.
Applications
Alarm Systems,Marine Equipment,Cable Television,Medical Equipment,Communications Equipment,Telecommunications Systems, telecom, bank, hospital, bureau, traffic, public security, ATM etc.
Technical Specification
| MODEL(RT Series) | RT1K | RT1KL | RT2K | RT2KL | RT3K | RT3KL | RT6KL | RT10KL |
| Input | Rated Capacity | 1KVA/800W | 2KVA/1600W | 3KVA/2400W | 6KVA/4800W | 10KVA/8000W |
| Voltage | 90 ± 5 ~290 ± 5Vac | 176 ~ 276Vac |
| Current | 6A(max) | 12A(max) | 16A(max) | 31A(max) | 60A(max) |
| Frequency | 40 ~ 60 Hz |
| Power factor | Conformity EN60555-2(≥0.95) | ≥0.95(MAX) |
| Output | Voltage | 220Vac ( 1 ± 2%) | 220Vac ( 1 ± 1%) |
| Current | 4.55A | 9.1A | 13.6A | 27.3A | 54A |
| Frequency | (50 ± 2)Hz | (50 ± 1)Hz |
| Power Factor | 0.8 lag |
| Waveform | Sine Wave |
| Waveform | Linear ≤ 7% when RCD 100% loading (Non-line) |
| Distortion | Linear ≤ 3% when RCD 100% loading (line) |
| Overload protection | 105%< <125% → 50s | 100%-125%, 1 minutes to |
| 125%< <150% → 25s | transfer to bypass; >150%, |
| >150% → 300s | 100ms to transfer to bypass |
| Transfer Time | Oms |
| Type of Battery | Sealed lead acid maintenance-free |
| External Battery Voltage | 3x7 Ah | 36Vdc | 6x7 Ah | 72Vdc | 8x7 Ah | 96Vdc | 192Vdc/240Vdc |
| Working | Operating | 0-40ºC |
| Environment | Temperatures(ºC) |
| | Relative | 0-90(%) |
| | Temperature(ºC) |
| | Altitude | <1500m |
| Communication | 9pin D trpe comector (RS232) |
| Size (WXDXH) mm | 482x450x88 | Standard Type (3U): 482x680x132.5 | 482x680x132.5 |
| Long Backup Type (2U): 482x450x88 |
| Weight (kg) | 14.5 | 8 | 22 | 9.8 | 26 | 9.8 | 20 | 25 |

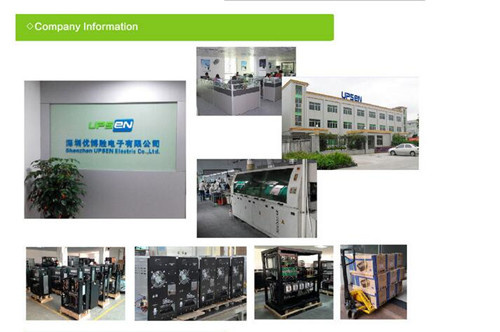

Shenzhen UPSEN Electronic Co., Ltd. Which is located in south of China, Shenzhen City, close to Pearl of the Orient HK, with beautiful environment and convenient transport.
