| Prod Model: |
N-3C20K |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power: |
4.2kw/7kw/10.5kw/14kw |
| Normal Voltage: |
220VAC |
| Frequency Range: |
40.5~55Hz |
| Wave Form: |
Pure Sine Wave |
| Phase: |
Single Phase |
| Type: |
On-line |
| Protection: |
Short Circuit |
| Classification: |
UPS |
| Brand: |
Kemapower |
Product Description

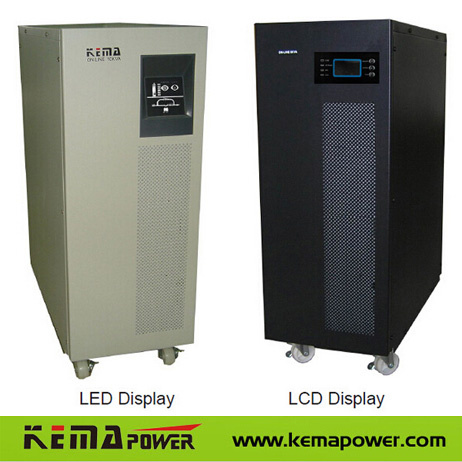

High Frequency Online Sine Wave UPS (N-3C20K) * I/P: Three Phase,Wire Voltage 380VAC
* O/P:Single Phase, 220VAC± 1%
* Capacity:10KVA /15KVA /20KVA
* Wave Form:Pure sine wave
* Transfer Time:0 ms
* DC voltage: 240VDC/192VDC
* Battery: External Battery
Key Features
1.High frequency and double conversion online UPS
2.Three Phase in Single phase out, Power Factor 0.8
3.Fully digitized microprocessor control,Zero transfer time
4.Wide input voltage range and Advanced PFC technology
5.Self-testing when UPS startup
6.Advanced battery management
7.Automatic battery charging in UPS off mode
8.Lightning and surge protection
9.Short circuit ,overload and the others full protection
10.Battery voltage and load capacity display
11.Smart RS232 communication with monitoring software 12.SNMP card optional
13.LCD display,EPO,ECO,USB communication,Maintenance bypass optional
14.LCD with Fault Codes
15.N+X parallel design optional
Technical Specifications | ITEM | MODEL | N-3C10K | N-3C15K | N-3C20K |
| Capacity | VA / Watts | 10KVA/8KW | 15KVA / 12KW | 20KVA/16KW |
| Input | Normal voltage | 380V,RST+N+G |
| Input Voltage range | Phase Voltage range ,120V-275V+-5V |
| Frequency range | 50/60±10% |
| Input power factor | >0.99(220VAC,full R load) |
| Generator | Support generator input(Generator rating≥2*UPS rating |
| Output | Voltage range | 220VAC+-1% |
| Frequency range | 48Hz/54Hz(AC mode), 50HzX(1±0.1)(Battery mode) |
| Wave form | Pure Sine Wave |
| Transfer Time | 0 ms |
| Distortion (Full Load) linear load | < 3% |
| distortion (Ful l Load) nonlinear load | < 5% |
| Overload capacity | 105%~125% ,1min then transfer to bypass and alarm. 125%~150% 30s then transfer to bypass and alarm,1min then cut off output. >150% ,0.5s then transfer to bypass and alarm. |
| Load peak ratio | 3:1(max) |
| 192VDC Battery | Type | Maintenance free valve regulated lead acid (VRLA) battery |
| Battery voltage | 192VDC | 192VDC | 192VDC |
| Battery Capacity | External | External | External |
| Around backup time (Full load) | Depended on battery capacity |
| Around backup time (Half load) | Depended on battery capacity |
| Recharge time | Depended on battery capacity |
| Battery | Type | Maintenance free valve regulated lead acid (VRLA) battery |
| Battery voltage | 240VDC or 192VDC | 240VDC or 192VDC | 240VDC or 192VDC |
| Battery Capacity | External | External | External |
| Around backup time (Full load) | Depended on battery capacity |
| Around backup time (Half load) | Depended on battery capacity |
| Recharge time | Depended on battery capacity. Charger Current 2.5Amp or 5Amp |
| LED Display | LED | Load level / Battery level / Battery mode / Line mode / Inverter /B ypass /Over load / Fault |
| Audible Alarm | Battery Mode | Beeping every 4 seconds (re-settable) and every second when battery |
| Overload | Beeping twice every second |
| UPS Fault | Beeping Continuously |
| Bettery low/charger fault | Beeping every 1 second |
| Bypass mode | Beeping every 2 min |
| L/N inverse | Beeping every 2 min |
| Communications | RS232,With monitoring software. USB Option, SNMP Card Option |
| working Environment | Working temperature | - 20ºC~40ºC |
| Humidity | 0-95% non-condensing |
| Size and weight | Product size WxDxH (mm) | 260*565*715 | 260*565*715 | 260*565*715 |
| package Size WxDxH (mm) | 450*620*670 | 440*710*980 | 440*710*980 |
| N.weight(Kg) | 28 | 36 | 36 |
| Gross weight(Kg) | 34 | 42 | 42 |
| optional functions | ECO | optional |
| EPO | optional |
| LCD display (optional) | input / output VAC & HZ, Load Rate,Battery Rate,Temp. |
| REMARK | The UPS Can rework to single phse in single phase out |
