| Prod Model: |
C6K/C6KS/C10K/C10KS/C15KS/C20KS |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power: |
4.2kw/7kw/10.5kw/14kw |
| Wave Form: |
Pure Sine Wave |
| Normal Voltage: |
220VAC |
| Frequency Range: |
40.5~55Hz |
| Phase: |
Single Phase |
| Type: |
On-line |
| Protection: |
Short Circuit |
| Classification: |
UPS |
| Brand: |
Kemapower |
Product Description
High Frequency Online UPSKey Features and Benefits:1. High frequency and double conversions on-line technology
2. Single phase
3. Fully digitized microprocessor control
4. Wide input voltage range
5. Zero transfer time
6. Advanced power factor corrector technology
7. Self-testing when UPS startup
8. Advanced battery management
9. Automatic battery charging in UPS off mode
10. Lightning and surge protection
11. Short circuit and overload protection
12. Smart RS232 communication with monitoring software
13. Battery voltage and load capacity display
Capacity: ( Standard type or Long Time type )
A) Standard type:* C6K /6KVA/4.2KW (with battery 20*7AH)
* C10K /10KVA/7KW (with battery 20*9AH)
B) Long Time type:* C6KS/6KVA/4.2KW/240VDC, External. Bat.
* C10KS/10KVA/7KW/240VDC, External. Bat.

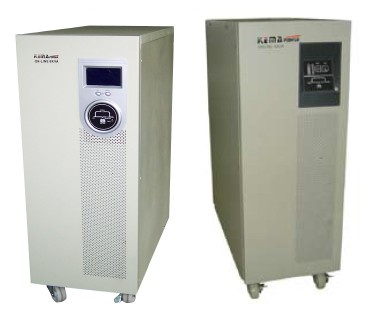

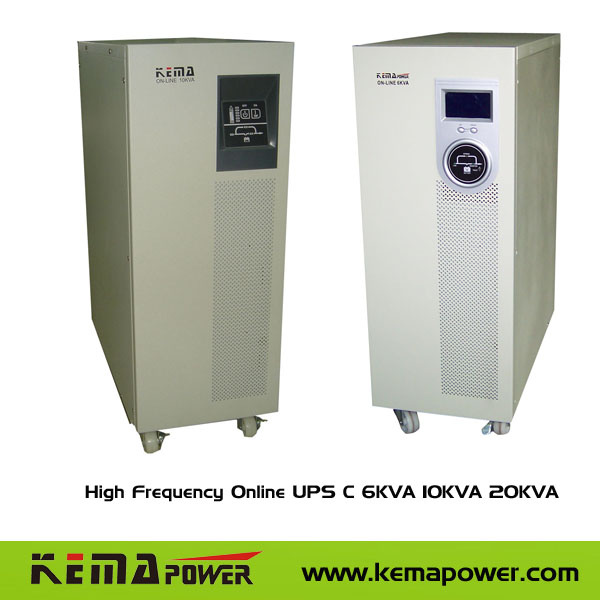

Product Show:
Technical Specifications | ITEM | MODEL | C6K/C6KS | C10K/C10kS | C15KS | C20KS |
| Capacity | VA / Watts | 6KVA / 4.2KW | 10KVA / 7KW | 15KVA / 10.5KW | 20KVA / 14KW |
| Input | Normal voltage | 220VAC |
| 220V Voltage range | 176-276V |
| Frequency range | 40.5~55Hz |
| Voltage range | 220VAC+-1% |
| Output | Frequency range | 50Hz/60Hz+-0.5% (Battery mode) |
| Wave form | Pure Sine Wave |
| Transfer between AC | 0 ms |
| mode and battery mode |
| Transfer between AC | " < 1ms" |
| mode and bypass mode |
| Distortion (Full Load) | < 3% |
| linear load |
| Degree of distortion | < 5% |
| (Ful l Load) nonlinear load |
| Overload capacity | 105%~130% 10min, > 130% 1min, > 150% 200ms |
| Load peak ratio | 3: 1(max) |
| Battery for C6K/10K | Type | Maintenance free valve regulated lead acid (VRLA) battery |
| Battery voltage | 240VDC | 240VDC | \ | \ |
| Battery number | 20*12V*7AH | 20*12V*9AH | \ | \ |
| (standard type ) |
|
|
|
|
| Backup time (Full load) | 8Mins | 8Mins | \ | \ |
| Backup time (Half load) | 24Mins | 24Mins | \ | \ |
| Recharge time | 90%capacity after 8 hrs charging |
| Battery for C*Ks | C6KS/10KS/15KS/20KS | 240VDC, External battery back. |
| Display | LED | Load level / Battery level / Battery mode / Line mode / Inverter /B ypass /Over load / Fault |
| Audible Alarm | Battery Mode | Beeping every 4 seconds (re-settable) and every second when battery |
| Overload | Beeping twice every second |
| Fault | Beeping Continuously |
| Communications | RS-232 Interface | With monitoring software |
| Working Environment | Surge protection | RJ-45 I/O port avai lable for network or Fax/Modem |
| Working temperature | - 20~40 |
| Humidity | 0-95% non-condensing |
| Package dimension | WxDxH (mm) | 700*430*845 | 700*430*845 | 700*430*845 | 700*430*845 |
| Package size | WxDxH (mm) | 710*440*980 | 710*440*980 | 710*440*980 | 710*440*980 |
| Package weight | Gross weight(Kg) | 99/44 | 101/48 | 89 | 89 |
| REMARK | C*k --- Standard Type, C*Ks---- Long Time Type |
