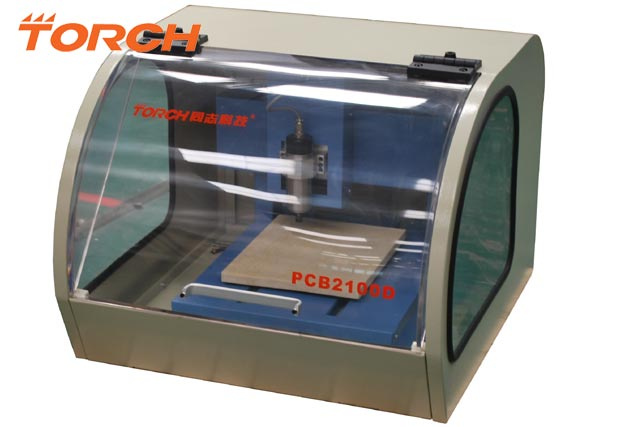

| Prod Model: |
PCB2100D |
| Work Speed: |
4.5m/ Minute |
| Max Size Of PCB: |
250*180mm |
| Work Precision: |
8mil |
| Operate System: |
Windows 7/XP |
| Speed: |
32000rpm |
| Power Supply: |
AC220V 50Hz |
| Dimension: |
650×610×560mm |
| Weight: |
75kg |
Product Description
Model | PCB2010D |
Workable area | 250*180mm |
Work side | Single/double side |
Motor | X Y Z axis step motor |
Main shaft speed | 32000rpm |
Max moving speed | 4.5m/min |
Least line diameter | 0.5~3.175mm |
Least line gap | 8mil(0.2032mm) |
Drilling depth | 0.02-3mm |
Drilling diameter | 0.4-3.175mm |
Work speed | 20mm/s (Max) |
Drilling speed | 100strokes/min(Max) |
Operate ways | Semi-automatic |
Communication interface | RS-232 |
PC system | CPU: P-500MHz ,Memory:256M |
Operation system | Windows XP/Vista |
Power | 220V 50Hz |
Weight | 75kg |
Dimension | 650×610×560mm |
Introduction
- Drilling in the copper board
- Control the depth of milling, strip unnecessary copper to form wire pad
- Directly set and reset origin
- Virtual processing software, preview the processing path
- Display the real process
- Multi-holes at once, save the need for frequent tool change process
- Resume drilling, stop and restart at any position
- Combination of drilling, set two knives ,shorten process time to max degree
- Select any region to drilling to meet high precision
- Intelligent control the speed, optimize the speed according to tool
Advantages
- It is available for both sides and easy to operate
- The speed can be changed ,you carve minimum line and stop when process
- The re-drilling and region-drilling function, to make up some cases than the copper is not carved through.
- 5 position holes, more accurate position
- Adjust Z axis when process to avoid can't drill because the PCB is not level
- Milling PCB function. Mill the PCB to keep the PCB level after repeated drilling and carving. Moreover, you can move the holes in the board to position the double-side board.
- The test carved function to ensure the copper will drilled well to the great degree.
- To drill the arc edges
FAQ:
1): What's the way of shipping?
Answer: These are all heavy machines; we suggest you use cargo ship. But components for mending the machines, air transportation would be fine.
2): What's your way of packing the machines?
Answer: We use Plastic film to wrap the machine, then use Wooden cases to ensure its safety.
3): Do you have oversea after sale service? Can we offer the technical support?
Answer: Yes, we can offer technical support abroad. If you have any technical problem, our engineers will go to your country at the first time.
4): How is the training?
After buying our machines, your engineers can go to our company or our engineers go to your factory, and we will train them how to use these machines.
5): Is it hard to use these machines?
Answer: No, not hard at all. For our previous clients, at most 2 days is enough to learn to operate the machines.
6): What's the terms of payment? What about the trade terms?
Answer: T/T, L/C are ok. You can choose FOB Beijing/Tianjin.
7): Does your machines have quality certificate? How can I trust your products?
Answer: All of our machines have passed CE certificate, ISO14001(BCC), ISO9001(IQNET) and have own patent. Our company has entered markets in USA, Brails, Mexico ,Iran,Venezuela ,Asian market , and have established good cooperation with clients there.
Termway (Beijing) Precision Technology Co., Ltd. Found in 2001, has strong force on R&D and manufacture of SMT and PCB equipments and Semiconductor production line.
Torch has unique understanding of SMT technology for long-term providing professional services to domestic and foreign electronic company. It always lead SMT equipment technologies and trends in domestic market.
To meet the require of electronic environment protection in international market, we produce a series of lead free Reflow Oven, Wave Soldering from mini-type to large size type.
At present, we cooperates with Germany Termway Co. Ltd, produce a series of automatic high-speed mounter. Our product features as good quality, competitive price, easy to operate and energy saving. They enjoy great welcome in domestic and oversea market.
A lot of our products got the patents and our company passed ISO9001 and IQNET, CE certificates and we are SGS Audited Supplier.
Since found, we gained a good reputation and remarkable achievement from our customers, like Spaceflight, Aviation, Arms Force, Information industry, College, Scientific Research and so on. You can see our products from the producing line of fire alarm, instruments, computer display, telephone appliance. At present, our products are already sold in many countries such as USA, Brails, India, Japan, Australia, Mexico and Southeast Asian area. We will continue to make great efforts to satisfy the customers' requirement.
