High Precision PCB Plate Making Machine PCB2300

High Precision PCB Plate Making Machine PCB2300
Price: Negotiable/Piece
Trade Terms: FOB,CIF
Min Order: 1/Piece
Pay Type: T/T
Prod Model: PCB2300
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Workable Area: 300*300mm
Work Side: Single/Double Side
Motor: X Y Z Axis Step Motor
Main Shaft Speed: 60000rpm
Max Moving Speed: 4.8 M/Min
Least Line Diameter: 8mil(0.1524mm)
Communication Interface: Serial Port RS232/USB2.0
Power: AC(220±22)V,(50±1)Hz,180va
Weight: 70kg
Metal Coating: Copper
Mode Of Production: SMT
Layers: Double-Layer
Certification: ISO
Customized: Customized
Condition: New

Product Description

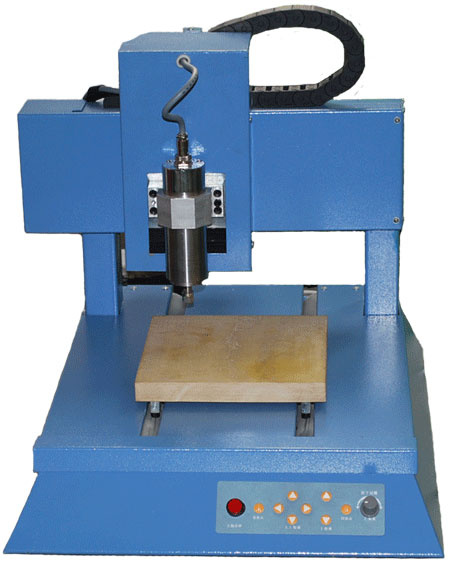

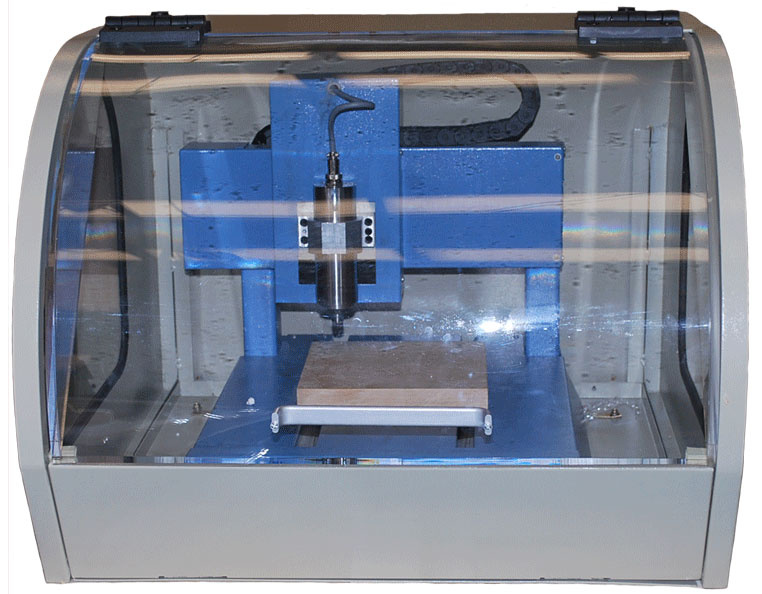

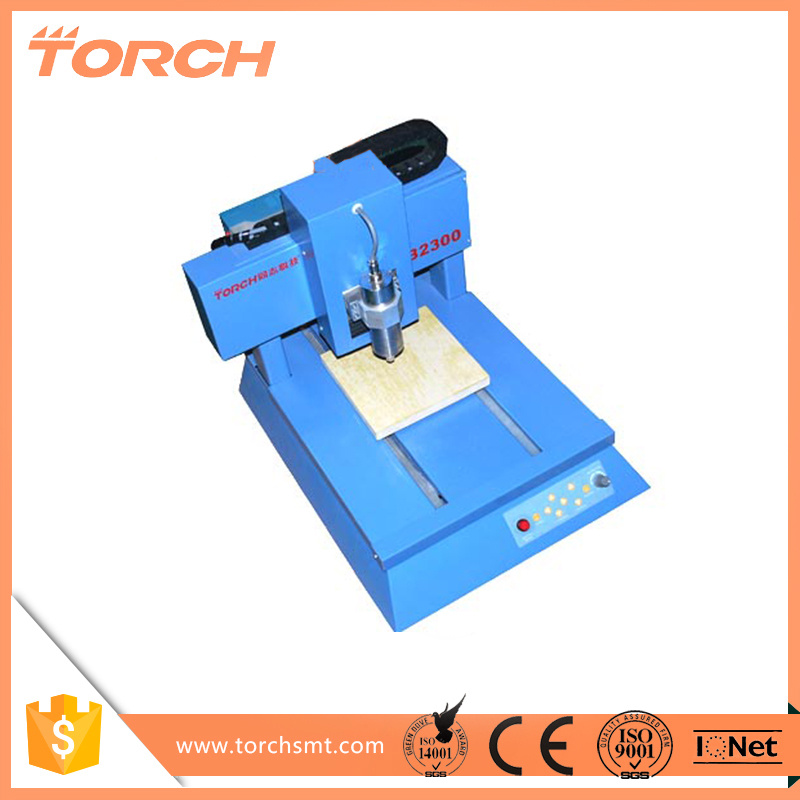

Plate making machine PCB2300

Summarize
The PCB2400 series rapid PCB maker is a circuit board maker can produce Single and Double sided
printed circuit board prototypes according to line of the file designed by PCB design software ( Protel,
Orcard,PADS ). The user simply complete the design of the PCB file on your computer and on the basis of
the build process file, through rs-232 communication interface to the machine control systems, CNC
Router can quickly automate features such as drilling, carving, cutting edge, make a perfect circuit
board.Unlimited software upgrades and so on, making product supporting flexible and achieving making
boards automatically with low-cost,high efficiency. Easy to operate, high efficiency, suitable for college
electronics,computer,control,instrumentation and so on related professional lab and electronical research corporations and scientific colleges,arms and so on.

Key Features
-Drill hole on copper-clad plate.
-Milling copper foil with controlled depth, stripping away unwanted copper foil with carving knife, forming wire pad.
-Milling along the line of the shape of the shape of the approach, making circuit boards and sheet separated.
-One key to set and return the origin in the membrane panel.
-Virtual machining in software, with preview of the machining path.
-Real time display of the machining path and the rate of progress.
-One tool for milling the most holes with different size, no need for the frequent changing of the tools.
-Milling in succession at any break point
-Intelligent combined milling with two cutters: one small cutter and one large cutter, with less time, but higher precision.
-Any part area of milling by selecting for mending.
-60,000 rpm high-performance spindle motor.
-Auto speed adjustment according to the size of the tool.
Termway (Beijing) Precision Technology Co., Ltd. Found in 2001, has strong force on R&D and manufacture of SMT and PCB equipments and Semiconductor production line.

Torch has unique understanding of SMT technology for long-term providing professional services to domestic and foreign electronic company. It always lead SMT equipment technologies and trends in domestic market.

To meet the require of electronic environment protection in international market, we produce a series of lead free Reflow Oven, Wave Soldering from mini-type to large size type.

At present, we cooperates with Germany Termway Co. Ltd, produce a series of automatic high-speed mounter. Our product features as good quality, competitive price, easy to operate and energy saving. They enjoy great welcome in domestic and oversea market.

A lot of our products got the patents and our company passed ISO9001 and IQNET, CE certificates and we are SGS Audited Supplier.

Since found, we gained a good reputation and remarkable achievement from our customers, like Spaceflight, Aviation, Arms Force, Information industry, College, Scientific Research and so on. You can see our products from the producing line of fire alarm, instruments, computer display, telephone appliance. At present, our products are already sold in many countries such as USA, Brails, India, Japan, Australia, Mexico and Southeast Asian area. We will continue to make great efforts to satisfy the customers' requirement.
