| Prod Model: |
UTP cat5e cable (D135) |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Category: |
UTP Cat5e Cable |
| Gauge: |
24/26/28 AWG Optional |
| Conductor Size: |
0.50mm-0.51mm Bare Copper or CCA |
| No. Of Conductor: |
8 |
| Certificate: |
UL, RoHS |
| Insulation: |
HDPE |
| Jacket: |
PVC,Lszh,PE |
| Approved: |
ISO/IEC11801, ANSI/Tia/Eia-568b |
| Operating Temperature Range: |
-20°c to 80 °c |
| Package: |
Drum or Easy Pull Box |
| Application: |
LAN Cable |
| Conductor Material: |
BC/CCS/CCA/TC/CU/CCAG |
| Cover Material: |
PVC |
| Type: |
Cat 5 |
| Certification: |
UL |
| Model: |
LAN Cable |
| Brand: |
Fulsan |
Product Description
UTP Cat5e Lan Cable/Network Cable/Communication Cable
Description
1. Conductor: Solid Bare Copper
2. AWG: 24
3. Conductor Dia(mm): 0.51
4. Insulation: PE
5. Average Thickness(mm): 0.21
6. Min. Point Thickness(mm): 0.17

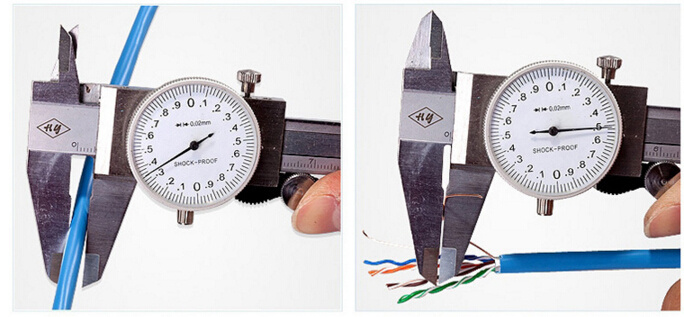

7. Insulation Dia(± 0.02mm): 0.91
8. Twisting Lay Length(± 20mm): 140
9. Jacket: PVC
10. Average Thickness(± 0.5mm)
11. Min. Point Thickness: 0.43mm

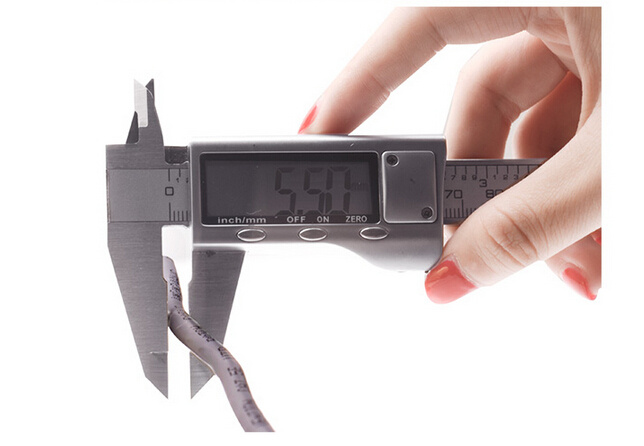

12. Outer Dia(± 0.2MM): 5.0
13. Rip Cord: Yes
14. Weight(kg/km): 32
Color of Insulation:
Pair1: Orange/White Orange
Pair2: Blue/ White Blue
Pair3: Green/ White Green
Pair4: Brown/White Brown
Other color available according to client's request.
Features:
1. Double Shields Assure the Anti-Jam and Data-Protection Strongly
2. Fast and Reliable Connection
3. Twisted Pairs with Bright Color for Easy Recognition
4. Ripcord and Footmark for Convenient Use
5. Smooth Jacket for Easy Pulling in Tight Space
6. Color in Light Grey, Dark Grey, Blue, White or as per Your Requirement
APPLICATION:
100 Base-T4
100 Base-TX
100 VG-AnyLAN
1000 Base-T(Gigabit Ethernet)
155Mbps ATM
622Mbps ATM
Used as work-station oution to the FD/IDF and other horizontal cabling, supporting TP-PMD Audio, integrated service digital network(ISDN), ATM 155Mbps, 1Gmbps TPDDI, Fast Ether-net etc
Packing:
1) Packing Lengths: 305m/roll
Other lengths available according to client's request.

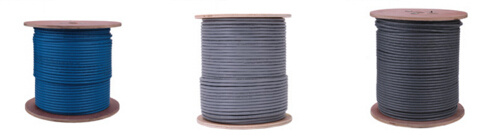

2) Inner packing: Wooden reel, plastic reel, and paper reel available.

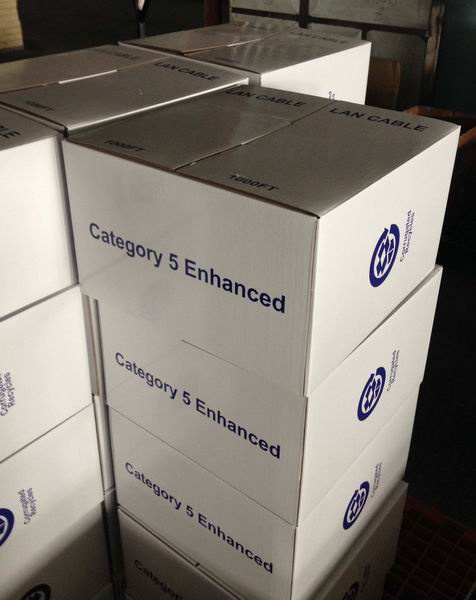

3) Outer packing: Carton box, pull out box, pallet available.
4) Other packing available according to client's request
Usage: Network cabling
Certificate: UL, CE, CCC
Export to: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, MID East, Eastern Asia, Western Europe
| Model | CAT5E Cable |
| Conductor Size | 24AWG |
| 0.45mm/0.48mm/0.49mm/0.5mm/0.51mm |
| Conductor Material | CCA/CCU/BC |
| Nuber Of Conductor | 4P |
| Shiled | UTP/FTP |
| Flammability Grade | CMP,CMX,CM,CMG,MPG,CMR,MPR |
| Insulation Material | PE,HDPE,LSZH PE |
| Insulation Thickness | 0.91mm |
| Jacket Material | PVC, ROHS PVC, LSZH PVC |
| Outer Jacket Thickness | 5.2mm |
| DC Resistance(Max.) | 9.5Ω/100m |
| DC Resistance Imbalance | 2.50% |
| Working Capacitance(Max.) | 5.4nF/100m |
| Insulation Resistance | 10000 MΩ.km |
| Transmission Velocity | 65% |
| Operating Temperation | -40 °C - +75 °C |
| PVC Jacket Color | As client's request. |
| Marking On Jacket | On your request (Print your brand) |
