High Quality Ce Certificate Green PVC Jacket Kx6 Coaxial Cable

Name: High Quality Ce Certificate Green PVC Jacket Kx6 Coaxial Cable
Brand: all-electronics-online.com
SKU: 795120825
Availability: InStock
Rating: 4.3 (42 reviews)

Price:	US $ 10-50/Roll
Min Order:	500/Roll
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	KX6
Application:	Coaxial Cable
Conductor Material:	BC/CCS/CCA/TC/CU/CCAG
Cover Material:	PVC
Certification:	ISO
Type:	Coaxial Cable
Model:	Kx6

Product Description

high quality CE,ROHS ,ISO green pvc jacket coax RG cable KX6 Coaxial cable

1.Product Description:

Inner conductor: 0.2mmχ 7 Stranded Bare Copper
Dielectric: 3.70mm Solid Polyethylene
Braiding: 0.12mmχ 16χ 7Bare Copper /CCA Coverage
High Quality PVC jacket 6.1mm
Electrical Performance:
Capacitance: 67± 3 pF/m
Impedance @200MHz: 75± 3 Ohm Resistance @ 20º C/68º F
Inner conductor: ≤ 76Ω
Outer conductor: ≤ 21Ω

ATTENUATION @68 ºF(20 ºC ):
FREQUENCY	dB/100M	dB/100FT
10MHz	3.85	1.17
50MHz	8.70	2.65
100MHz	12.45	3.80
200MHz	17.86	5.45
400MHz	25.76	7.86
500MHz	28.95	8.83
600MHz	32.03	9.76
800MHz	37.48	11.43
1000MHz	42.28	12.87
RETURN LOSS:	5 --- 300 MHz	≥ 25dB
	300 --- 600 MHz	≥ 23dB
	600 --- 1000 MHz	≥ 20dB

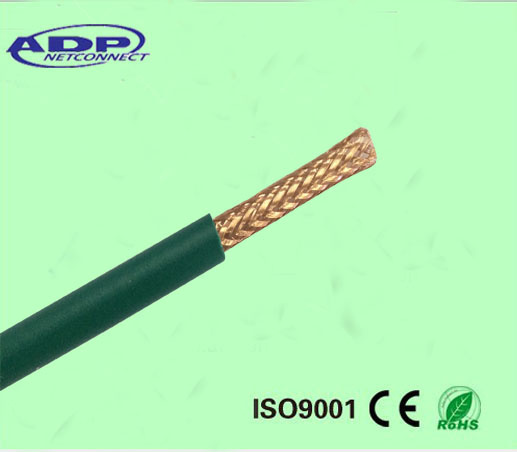

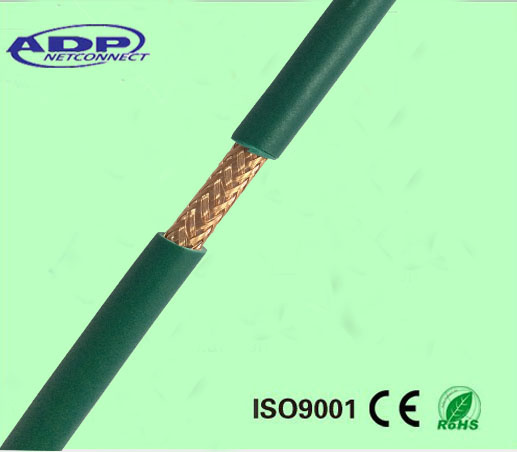

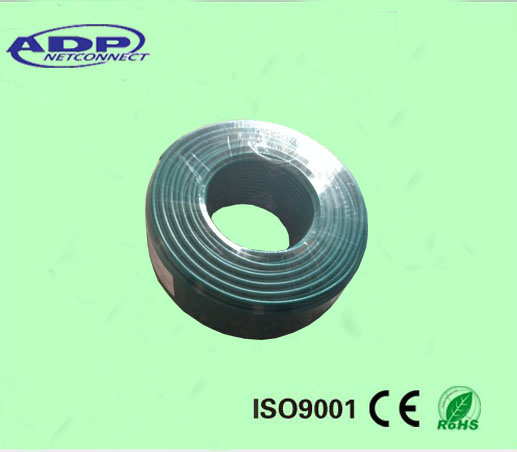

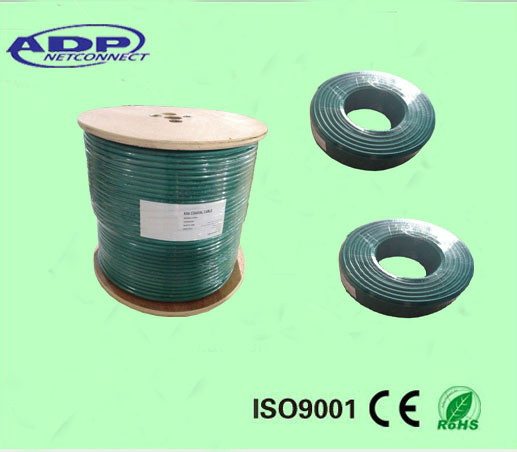

2.Picture :

Shenzhen ADP Cables Co., Ltd. Was established in 2002 and is a professional manufacturer for Fiber Optic Cable, LAN cables, Coaxial cable, Security Alarm Cable.
Fiber Optic Cable indoor and outdoor, fiber pigtails, fiber patch cable; CAT3/CAT5E/CAT6/CAT6A/CAT7 cable, RJ11/RJ45 patch cord; 1pair -200pair Telelphone cable; Coaxail Cable RG6/RG58/RG59/RG11...SYV/SYWV serises...Fire Alarm Cable. And fiber patch cord, connector, accessories.

Our company is equipped with full sets coloring machines fiber ribbon forming machine, secondary coating lines, cabling lines, meshing machines, twisting machines, inspection equipment and instrument for all electrical, mechanical, temperature and environmental performance.

Our products strictly adhere to ISO 9001, CE and RoHS international standards, which also cover our design, development, services, and management. We have more than 100 employees, including 10 technical personnel. Our annual production value researches to USD200, 000, 000, giving us stable development and increased competitive power within the market.

We will continue being a people-oriented and faithful supplier offering technical support and good customer service. For more information, please visit our website or contact us directly with your questions or inquiries.
