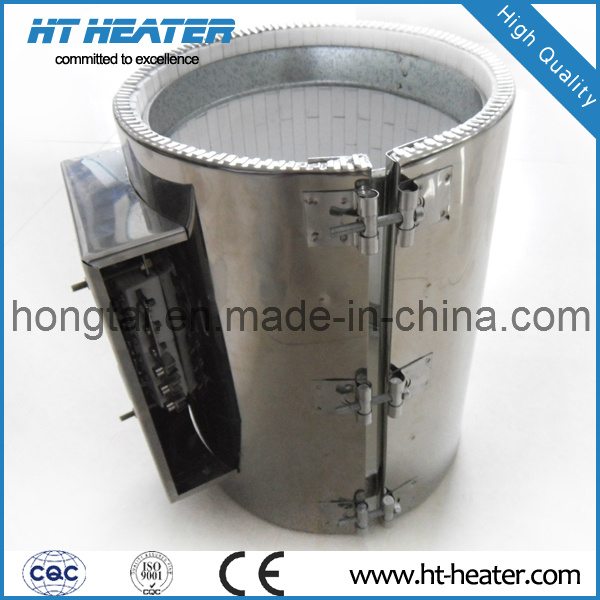

High Quality Ceramic Band Heater for Extruder Machine

Name: High Quality Ceramic Band Heater for Extruder Machine
Brand: all-electronics-online.com
SKU: 723929455
Availability: InStock
Rating: 4.6 (20 reviews)

Price:	US $ 3-15/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	5/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	Ceramic Band Heater
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Sheath:	304 Stainless Steel
Electric Heating:	Nicr 80/20 Wire
Min Diameter:	60mm
Min Width:	25mm
Wattage:	1500W
Voltage:	240V 230V 120V
Industrial Application:	Injection Molding
Application:	Heater
Structure Material:	Metal Material

Product Description

Band Heater

HT-CT CE Approved 1500W Ceramic Band Heater

Introduction
Ceramic band heaters are medium-to-high temperature heaters that have 600degree Celsius as a maximum working temperature. They provide long life and use less wattage (because of insulation) in plastics extrusion and injection molding applications.

Ceramic band heaters are available with different terminal styles, are fully flexible, and can accommodate holes and cut-outs. Hongtai engineering is available to assist with the design and development of special heaters for particular requirements.

Features:
1. Stainless Steel sheath resists rust and high temperatures, and provides firm mechanical support.
2. Ceramic insulation prevents heat loss, thereby lowering energy costs.
3. High temperature nickel-chromium element wire
4. Max. watt density : 6 W/cm² (Wattage tolerance: +5% -10%)

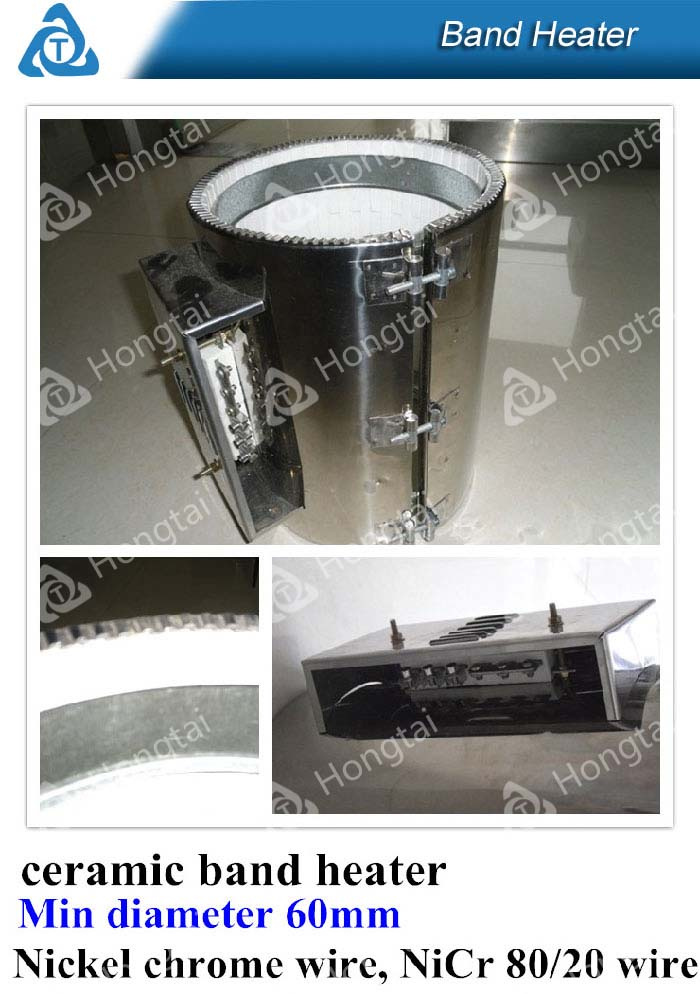

4. Mini diameter: 60mm
5. Mini height: 25.4mm
6. Thickness: 12mm
7. Standard gap: 9mm

BENEFITS
Energy efficient
Energy saver
Highly flexible
Durable
Maintains heat
Provide uniform heat distribution
CSA, CE and UL certified

APPLICATIONS
Injection molding
Blow-molding
Plastic extrusion
Container, pipe, or tank heating
Process applications

When ordering please specify:
1, Inside diameter and width of the heater
2, Construction type
3, Wattage and voltage
4, Type of terminal

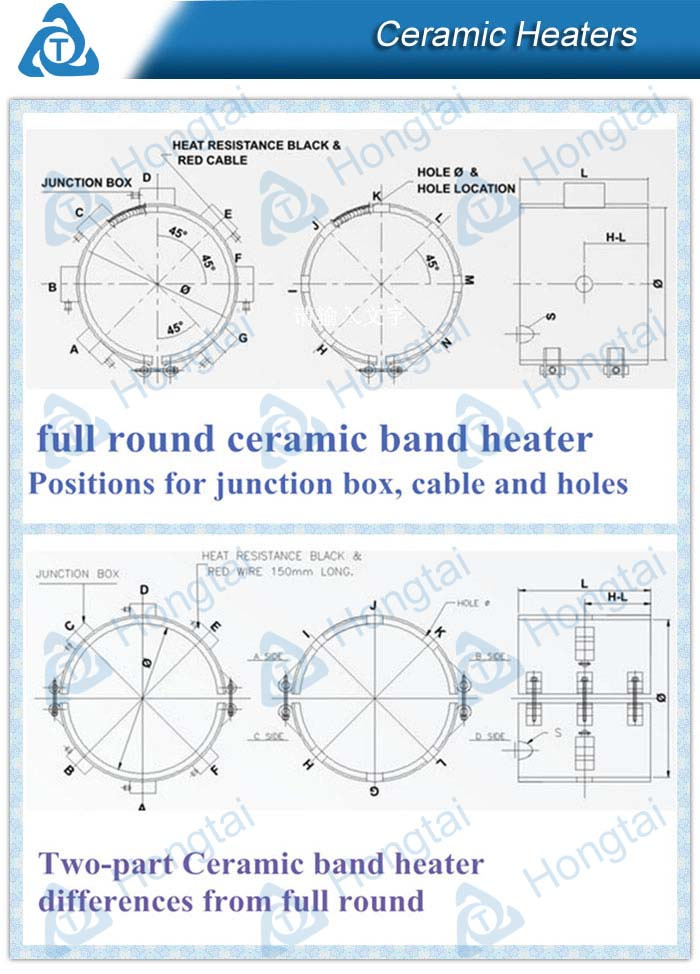

5, Drawing where special type of holes or cutouts required

sheath	304 Stainless Steel
insulation	ceramic
heating resistance wire	NiCr 80/20 wire
Max. wattage density	6 W/cm² (Wattage tolerance: +5% -10%)
Min size	25*25mm
terminations
1	Clamping mechanisms
2	Termination Styles

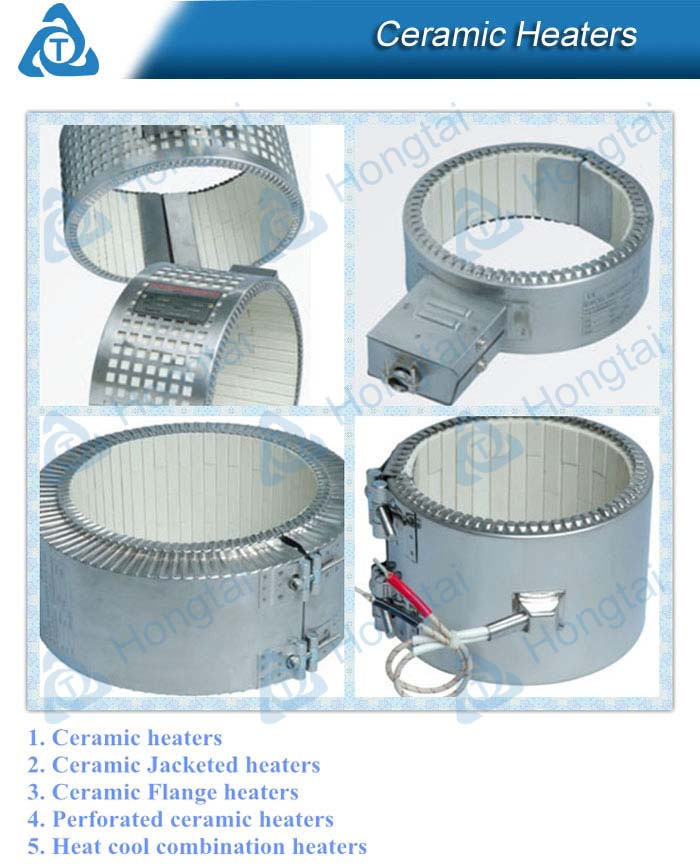

3	Construction Styles

Founded in 2008, Yancheng Hongtai Alloy Electric Apparatus Co., Ltd is a professional Heating element manufacturer. We are Branch of Yancheng Songtai Electric Heating Element Factory(founded in 1990).

With product development, machine improved and technological innovation, we have improved OEM capacity and also have our own brand Hongtai. We have focused on management and quality control according to ISO 9001 standard. We produce top quality heaters and offer efficient service to meet customer's requirements.

We have 10 engineer with more than 10 years of experience in heating element filed to design and develop new heating elements for clients and provide professional suggestion for clients.

We introduce professional machines from Taiwan, Japan and Germany to support our production, including automatic powder filling machine, polishing machine, shrink tube machine, punching machine, automatic reeling machine and so on.

Our main products are Rod heaters, band heater, infrared heaters, temperature sensors and various heating alloys. Our products have got CE, RoHS certification.

Our factory complies with China's Labor Law to treat our workers - no force over-time working and working on legal holiday and no child labor. All workers have 2-day holiday on weekends. If there is any overtime working for urgent shipment, we will pay salary to them based on China's Labor Law.

We welcome you to cooperate with us based on win-win situations. Please feel free to contact us for further information
