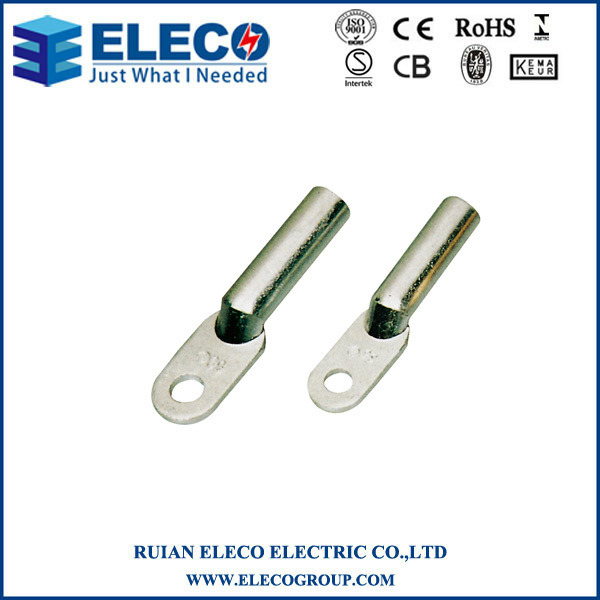

High Quality Copper (Alumnum) Wiring Terminal (DT DL Series)

Name: High Quality Copper (Alumnum) Wiring Terminal (DT DL Series)
Brand: all-electronics-online.com
SKU: 766801605
Availability: InStock
Rating: 4.6 (33 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T,D/P,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	DT DL Series
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Cable Sq. Mm.:	1.5,2.5,4,6,10,16
Stud Hole E:	4.2,5.2,6.5,4.2
Feature:	High Wall Thickness, Giving Termination
Finish:	Electro-Tin Plated for Operating Temperature 150
Type:	Socket Terminals
Material:	Copper
Application:	Transmission of Electrical Signals
Brand:	Eleco

Product Description

Application
Connecting terminals are suitable for the conjunction of wire, cables in the distribution equip-
ment and electrical equipment. DL series of aluminum connecting terminals are pressed with
aluminials bar (L3), DT series of copper connecting terminals with copper bar (T2),and DT (G)
series of copper connecting terminals are made of tubing.

Type	Dimensions(mm)
Type	φ	D	d	L	L1	B
DL- 16	6.5	10	5.7	70	32	16
DL-25	8.5	12	7	75	34	18
DL-35	8.5	14	8	85	38	20.5
DL-50	10.5	16	9.5	90	40	23
DL-70	12.5	18	11.5	100	42	26
DL-95	12.5	20	13.5	110	48	28
DL-120	14.5	22	15	120	53	30
DL-150	14.5	24	16.5	125	55	34
DL-185	17	27	18.5	135	57	37
DL-240	17	30	21	140	60	40
DL-300	21	34	23	165	65	50
DL-400	21	38	26	170	70	50
DL-500	21	47	29	190	75	60
DL-630	21	54	35	220	85	80
DL-800	21	60	38	125	100	100
