High Quality Covered Line Wire with ASTM Standard
| Price: |
US $ 0.1-1/Meter |
| Min Order: |
1000/Meter |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
Covered Line |
| Standards: |
ASTM B230,B231,B232 and B399 |
| Delivery Length: |
Accord with The Request |
| Capacity: |
10000km/Week |
| Min.Order Qty: |
1km |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Application: |
Overhead |
| Conductor Material: |
Aluminum |
| Insulation Material: |
XLPE |
| Certification: |
SABS |
| Sheath Material: |
None |
| Brand: |
Henan Jiapu |
Product Description

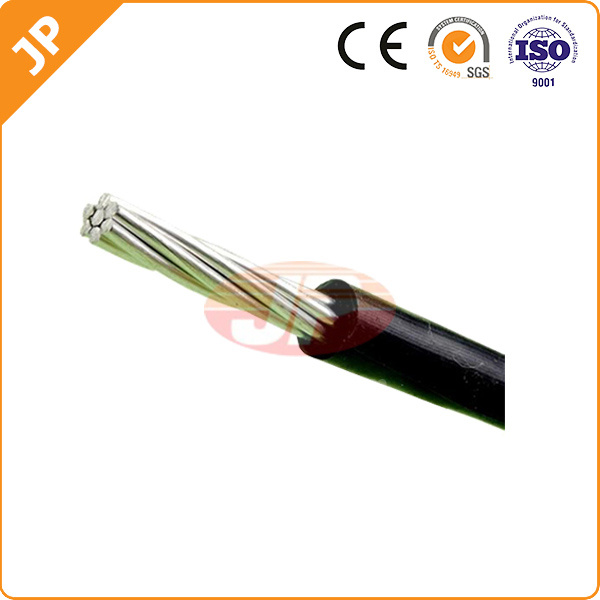

High Quality Covered Line Wire with ASTM Standard
Application:
Covered line Wire is used primarily for overhead secondary distribution lines. It is not an electrically insulated conductor and is treated as bare conductor when installed. The code words as given apply to conventional polyethylene line wire.
Construction:
The conductors are 1350-H19 aluminum ,6201-T81 Aluminum Alloy , or ACSR conductors, concentrically stranded and covered for weather proofing with polyethylene, high density polyethylene(HD) or crosslinked polyethylene(XLPE).
Specification:
Standard:
ASTM B-230, B-231, B-232 and B-399 ,ICEA S-61-402 and S-66-524 Standard
| Code Name | Size | Stranding | Insulation Thickness | Overall
Diameter | Approx. Weight | Code Name | Size | Stranding | Insulation Thickness | Overall Diameter | Approx. Weight |
| XLPE | PE | XLPE | PE |
| AWG or MCM | - | mil | inch | lbs/1000ft | AWG or MCM | - | mil | inch | lbs/1000ft |
| AAC 1350-H19 | ACSR |
| Apple | 6 | Solid | 30 | .222 | 33.0 | 32.0 | Walnut | 6 | 6/1 | 30 | .258 | 49 | 47 |
| Pear | 4 | Solid | 30 | .264 | 48.5 | 47.3 | Butternut | 4 | 6/1 | 30 | .303 | 71.8 | 70.0 |
| Apricot | 4 | 7/w | 30 | .285 | 51.5 | 50.8 | Hickory | 4 | 7/1 | 30 | .309 | 81.6 | 79.8 |
| Peach | 2 | 7/w | 45 | .373 | 87.1 | 84.0 | Pignut | 2 | 6/1 | 45 | .397 | 118.1 | 114.8 |
| Quince | 1/0 | 7/w | 60 | .477 | 140.7 | 135.6 | Beech | 2 | 7/1 | 45 | .405 | 134.1 | 130.7 |
| Orange | 2/0 | 7/w | 60 | .522 | 171.9 | 166.2 | Chestnut | 1 | 6/1 | 45 | .434 | 145.5 | 141.8 |
| Fig | 3/0 | 7/w | 60 | .570 | 210.5 | 204.0 | Almond | 1/0 | 6/1 | 60 | .506 | 190.4 | 184.9 |
| Olive | 4/0 | 7/w | 60 | .626 | 258.7 | 251.4 | Pecan | 2/0 | 6/1 | 60 | .554 | 234.2 | 227.9 |
| Pomegranate | 4/0 | 19/w | 60 | .632 | 254.8 | 247.9 | Filbert | 3/0 | 6/1 | 60 | .607 | 288.5 | 281.4 |
| Mulberry | 266.8 | 19/w | 60 | .692 | 313.5 | 305.8 | Buckeye | 4/0 | 6/1 | 60 | .666 | 356.5 | 348.5 |
| Anona | 336.4 | 19/w | 60 | .766 | 387.6 | 378.8 | Hackberry | 266.8 | 18/1 | 60 | .711 | 354.8 | 346.8 |
| Molles | 397.5 | 19/w | 75 | .852 | 469.2 | 457.4 | Alloy 6201-T81 |
| Huckleberry | 477.0 | 37/w | 75 | .921 | 550.0 | 537.5 | Hornbeam | 4 | 7/w | 30 | .310 | 62.1 | 60.1 |
| Paw Paw | 556.5 | 37/w | 75 | .982 | 633.0 | 619.4 | Linden | 2 | 7/w | 45 | .406 | 96.1 | 93.3 |
| Breadfruit | 636.0 | 61/w | 95 | 1.080 | 742.6 | 724.7 | Oilnut | 1/0 | 7/w | 60 | .518 | 166.1 | 160.0 |
| Persimmon | 795.0 | 61/w | 95 | 1.187 | 910.0 | 890.0 | Waterash | 2/0 | 7/w | 60 | .567 | 203.3 | 196.4 |
| Grapefruit | 1033.5 | 61/w | 95 | 1.327 | 1156.7 | 1133.8 | Shellbark | 3/0 | 7/w | 60 | .622 | 249.4 | 241.4 |
| Note: | | | | | | | Planetree | 4/0 | 7/w | 60 | .683 | 307.3 | 298.1 |
(1)Ampacity ratings based on 75°C conductor temperature 25°C ambient temperature elevation-sea level.
(2)Emissivity 0.91 coefficient of absorption 0.95. Thermal resistivity of covering -375°C-Cm2/Watt-CM.Wind speed 2ft./sec in sun.
