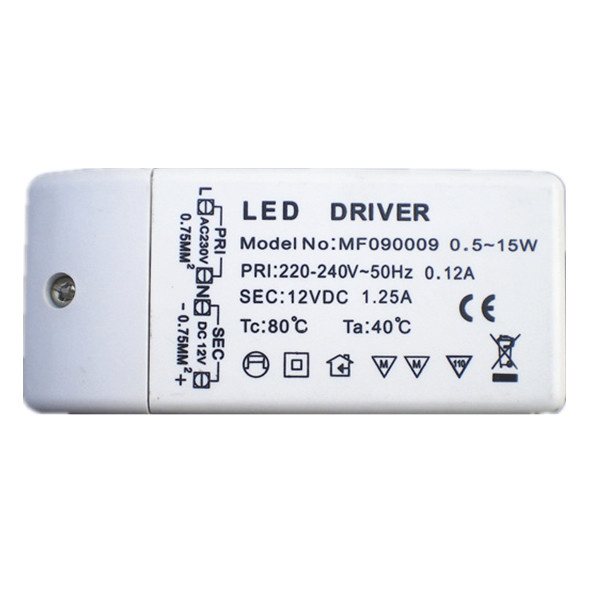

High Quality DC12V LED Power Supply for LED,

Prod Model:	T15W
Dimension:	92 X 42 X 20mm
IP Degree:	IP20
Dimmable:	No
Protection:	Short Circuit
Workspace:	0.5W-15W
Output Voltage:	12V
Usage:	Light
Output Type:	Single
Driving Method:	LED Regulator Voltage
Circuit Structure:	PWM Controlled
Modulation System:	Triac
Brand:	No Brand

Product Description

                   High Quality DC12V LED Power Supply for LED,
 Specifications:

Model No.	MF09009
Input Voltage Range	100-240V/AC
AC Frequency	48-62Hz
Input current	0.2Amax
Output Mode	Constant  voltage
On /Load Voltage	12V/24V
Output Current	1000mA   600mA
No Load/Voltage	12V  24V
Output Power	12W     Max.
Power Factor	>0.95
Efficiency	>80%
Dimensions	91*41*19(mm)
Weight	69g

1,SCOPE
   The purpose of the document is to specify the functional requirements of a 15W LED power.
2,INPUT CHARACTERISTICS:
   2.1 Input Voltage:
    Nominal Voltage:220-240Vac
    Variation Range:180-264Vac
2.2 Input Frequency:
     Nominal Frequency:50-60Hz
     Variation Frequency:47-63Hz
2.3 Input Current:
0.15Arms max At any input voltage and rated, DC output rated load.
2.4  Inrush Current:
30Amps Max. Cold start at 240Vac input, with rated load and 25ºCambient.
2.5  Ac Leakage Current:
25mA Max At 240Vac input.
3,OUTPUT CHARACTERISTICS:
3.1 Power Output;
          Voltage      Min. Load     Max. Load        Output Power
           +12Vdc      0A         1.25A               15W
3.2  Combined Load/Line Regulation:
   Voltage    Min. Voltage    Max. Voltage     Line Regulation   Load Regulation
    +12Vdc     12V            12.6V             ±3%             ±5%
3.3  Ripple And Noise:
    The ripple and noise are as follows when measure with Max. Bandwidth of 20MHz and Parallel 4.7uF/0.1uF,crossed connected at testing point.

               Voltage          Ripple And Noise(Max.)
               +12Vdc            120mVp-p

3.4  Turn On Delay Time:
    2 second Max. At 220Vac input and output Max. Load.
3.5  Rise Time:
      40mS Max. At 220Vac input and output Max. Load.
3.6  Hold Up Time:
     5mS Min. At 220Vac input and output Max. Load.
3.7  Efficiency:
     80%Min.At 220Vac input and output Max. Load.
     75%Min.At 240Vac input and output Max. Load.
3.8  Overshoot:
     15%Max.When power supply at turn on or turn off.

4,PROTECTION REQUIREMENT:
4.1 Short Circuit Protection:
     The power supply will be auto recovered when short circuit faults remove.
4.2  Over current Protection:
     The power supply will be auto recovered when over current faults remove.
4.3  Over Voltage Protection
     The power supply will be auto recovered when faults remove.
5,ENVIRONMENTAL REQUIREMET:
5.1 Operating Temperature:
     0ºCto40ºC,Full load Normal operation.
5.2 Storage Temperature:-20ºCto85ºC,With package.
5.3 Relative Humidity:
      5%(0ºC)~90%(40ºC)RH,72Hrs,Full load Normal operating.
5.4  Vibration:
      1,Operating: IEC 721-3-3 3M3
        9~200Hz,Acceleration 5m/s2                                                                    2,Transportation: IEC 721-3-2 2M2
        5-9Hz,A=3.5mm
        9~200Hz, Acceleration=5m/S2
        200~500HZ, Acceleration=15m/S2
3,Axes,10 cycles per axis.
     No permanent damage may occur during testing.
The product has to restors its original situation after power off/on.)
6,SAFETY REQUIREMENT:
6.1 Declaration of conformity.

7,MECHANICAL REQUIREMENT:
   7.1 Enclosure:
   The power supply size L: L92*W41*H20mm


White box packaging
