High Quality Electronic Minature Circuit Breaker Cobe-63

Name: High Quality Electronic Minature Circuit Breaker Cobe-63
Brand: all-electronics-online.com
SKU: 838394225
Availability: InStock
Rating: 4.9 (101 reviews)

Price:	Negotiable/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	COBE-63
Poles:	1p 2p 3p 4p 1p+N 3p+N
Frequency:	50/60Hz
Rated Current In(a):	6, 10, 16, 20, 25, 32, 40, 50, 63, 80, 100
Rated Insulated Voltage Ui(V):	400
Rated Working Voltage Ue(V):	1p: 20/400 1p+N: 230 2p/3p/3p+N/4p:400
Rated Impulse Withstand Voltage Uimp(V):	4000
Instantaneous Trip Type:	H
Ics(Ka):	7.5
ICU(Ka):	10
Mechanical Life(Times):	20000
Type:	Temperature Fuse
Usaga:	Low Voltage
Breaking Capacity:	10ka
Standard:	IEC60898-1

Product Description

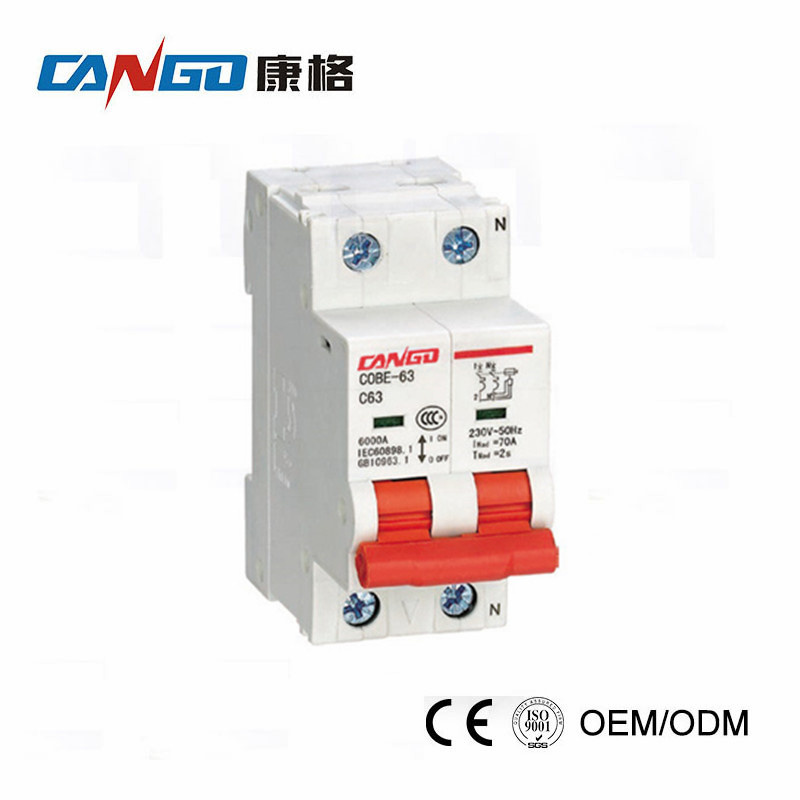

COB-63 Minature Circuit Breaker
1. Beautiful product appearance, flexible operation, good electrical contact, width of 2P is 36mm.
2. Rated Current: In=63A
3. Rated Voltage: Un=AC 400V/230V
4. Breaking Capacity: 7.5kA/10kA Mechanical Life: 20000times
5. Over-current Protection: When the current reaches 70A, the power is off in 2 seconds.
6. Over-temperature Protection: when the swithc main circuit temperature reaches 80 degree, the over-temperature protection can operate reliably within 2 seconds.
7. Working Temperature: -40ºC~+70ºC
8. Dielectric Strength: 2500V(1min)
9. Abnormal heating and fire resistance: V-0 (960±10)ºC

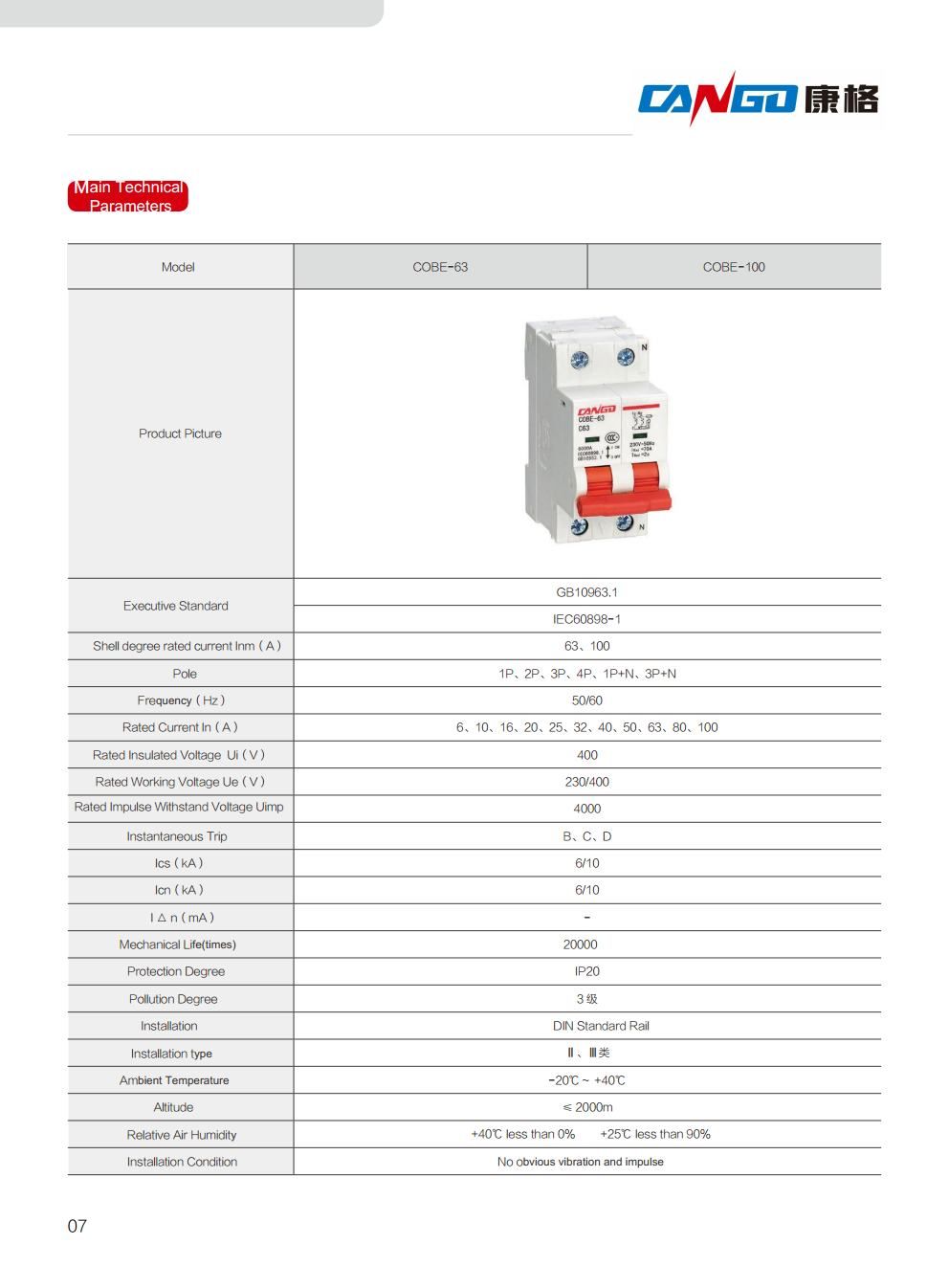

Technical Parameters of COBE series MCB

Application of our COB Series MCB:

Our Factory:

Pls feel free to contact us.
