Residual Current Operated Circuit Breaker (Coincidence Gate) Cocm-250uy

Name: Residual Current Operated Circuit Breaker (Coincidence Gate) Cocm-250uy
Brand: all-electronics-online.com
SKU: 734194072
Availability: InStock
Rating: 4.7 (94 reviews)

Price:	Negotiable/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Poles:	3p+N, 4p
Frequency:	50/60Hz
Rated Current In(a):	100~250
Rated Insulated Voltage Ui(V):	1000
Rated Working Voltage Ue(V):	AC400
Rated Impulse Withstand Voltage Uimp(V):	8000
Test Voltage 1min:	3550V
Flash Over Distance:	Less Than 50mm
Frame Current(a):	125A,225A,250A,400A,630A
Type:	Temperature Fuse
Usaga:	Low Voltage
Breaking Capacity:	10ka
Standard:	IEC

Product Description

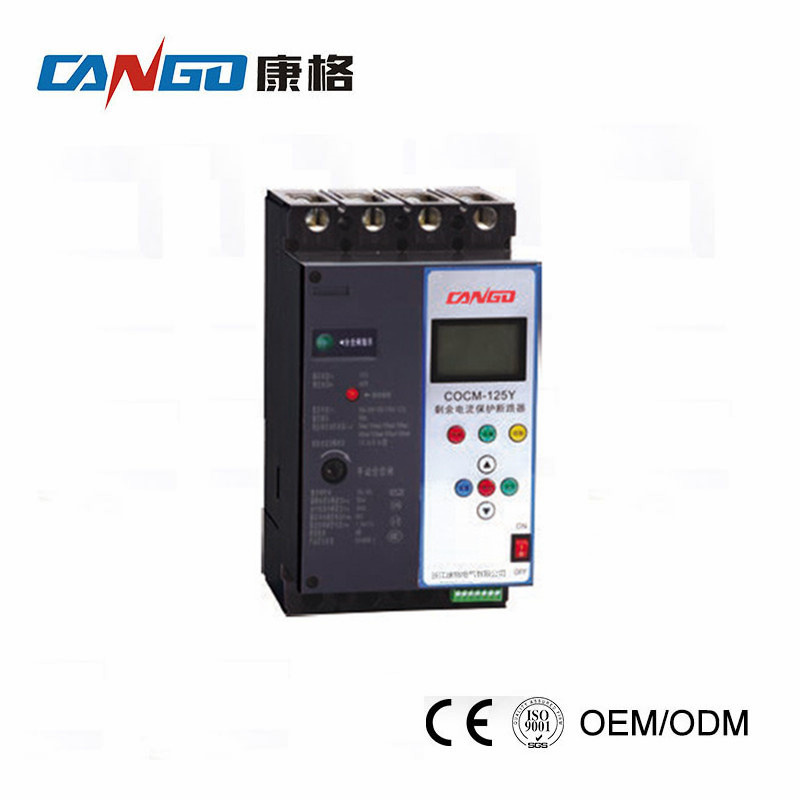

COCM-250UY Residual Current Operated Circuit Breaker(Coincidence Gate)
1. High performance 32 bit ARM microprocessor, real-time signal processing and intelligent control;
2. LCD Chinese display, man-machine interface friendly, easy to opearte,
3. Residual current(leakage) protection, the residual current can be adjusted on line, with the function of reclosing;
4. The real-time monitoring and tracking circuit of residual current, automatic adjusting gear, ensure operation rate and reliability of the product;
5. With high breaking capacity, to ensure the reliability of short circuit protection;
6. Over voltage protection, under voltage protection, phase failure protection;
7. Line residual current, three-phase power supply voltage;
8. Protection function and parameters can be set on line;
9. Trip type (residual current, latch up, overload, under voltage, over voltage, phase missing) identification, display, and storage, query, delete.
10. It has the function of communication, remote control, telemetry, remote control, remote control.

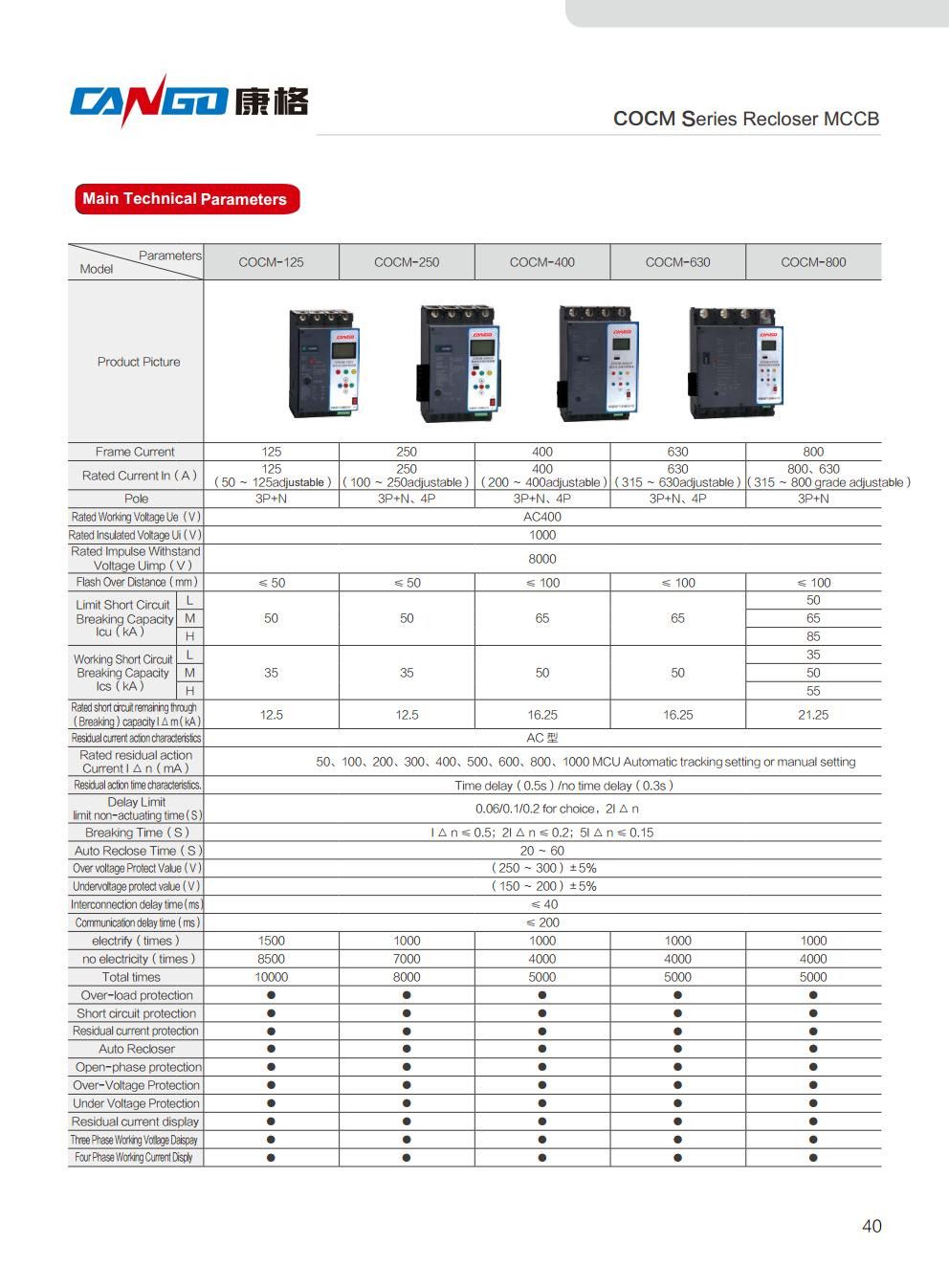

Technical Parameters of COCM-250UY Residual Current Operated Circuit Breaker(Coincidence Gate)

Poles	3P+N 4P
Frequency	50/60Hz
Rated Current in(a)	100~250A
Rated Insulated Voltage Ui(V)	1000
Flash Over Distance	≤50mm
Rated Impulse Withstand Voltage Uimp(V)	8000
Mechanical Life(times)	8000

Application of our COMLE-100 MCCB:

Our Factory:

Pls feel free to contact us.

Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
