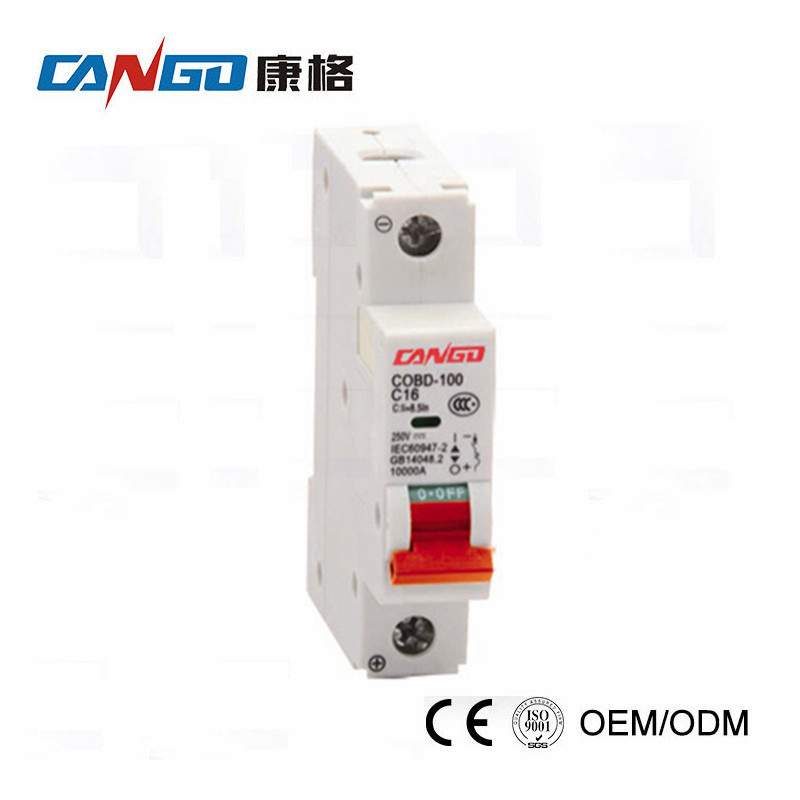

High Quality Miniature DC Circuit Breaker Cobd-100

Name: High Quality Miniature DC Circuit Breaker Cobd-100
Brand: all-electronics-online.com
SKU: 838420895
Availability: InStock
Rating: 4.7 (65 reviews)

Price:	Negotiable/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	COBD-100
Poles:	1p 2p 3p 4p
Rated Voltage U(V):	1p: DC250 2p:DC500 3p:DC750 4p:DC1000
Rated Current In(a):	1A,1.2A,1.5A, 1.6A etc
Rated Insulated Voltage Ui(V):	DC1000
Rated Working Voltage Ue(V):	1p 2p:DC500 3p:DC750 4p:DC1000
Rated Impulse Withstand Voltage Uimp(V):	6
Instantaneous Trip Type:	C:7in±10%
Ics(Ka):	7.5
ICU(Ka):	10
Mechanical Life(Times):	20000
Type:	Temperature Fuse
Usaga:	Low Voltage
Breaking Capacity:	10ka
Standard:	IEC60898-1

Product Description

COBD-100 Minature DC Circuit Breaker
1. Beautiful product appearance, flexible operation, good electrical contact, width of 2P is 36mm.
2. Rated Current: In=Below 100A
3. Rated Voltage: Un=DC 250V-DC1000V
4. Breaking Capacity: 10kA Mechanical Life: 20000times
5. Over-current Protection: When the current reaches 70A, the power is off in 2 seconds.
6. Over-temperature Protection: when the swithc main circuit temperature reaches 80 degree, the over-temperature protection can operate reliably within 2 seconds.
7. Working Temperature: -40ºC~+70ºC
8. Dielectric Strength: DC1000V
9. Abnormal heating and fire resistance: V-0 (960±10)ºC

Technical Parameters of COBD series MCB

Application of our COB Series MCB:

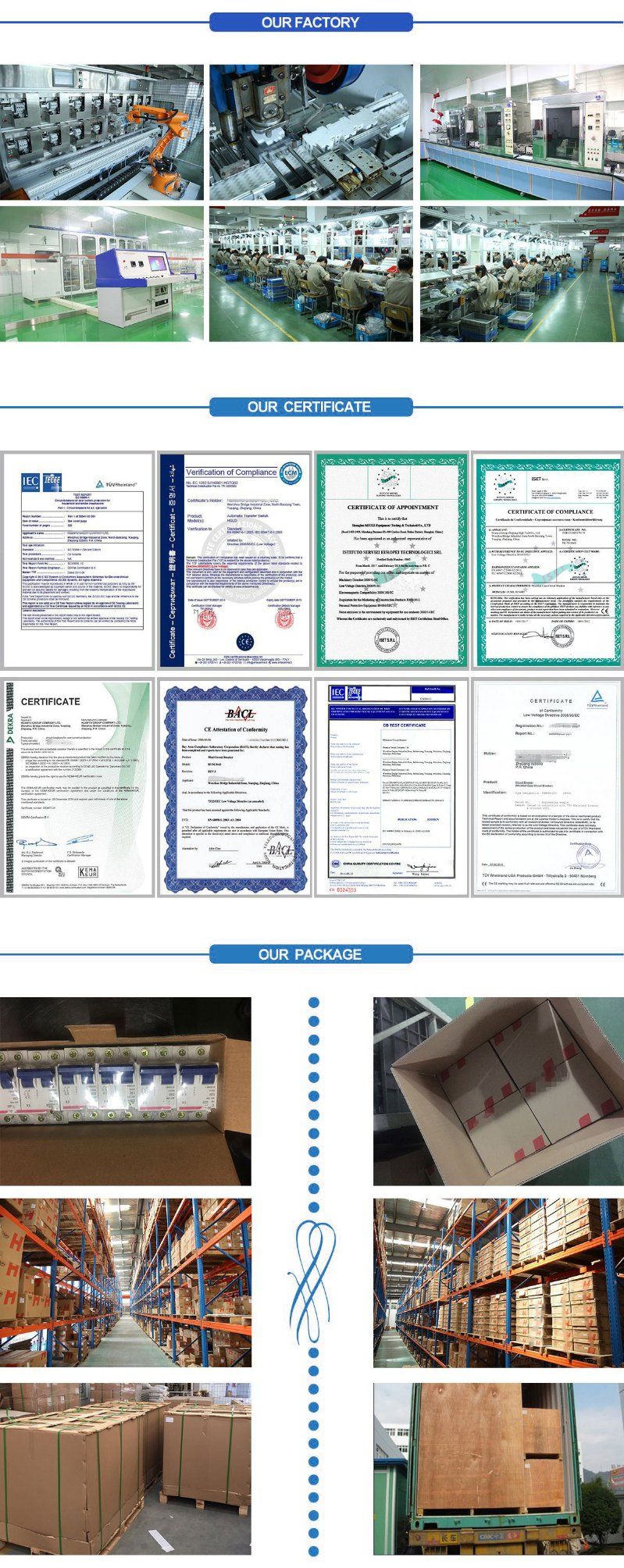

Our Factory:

Pls feel free to contact us.

Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
