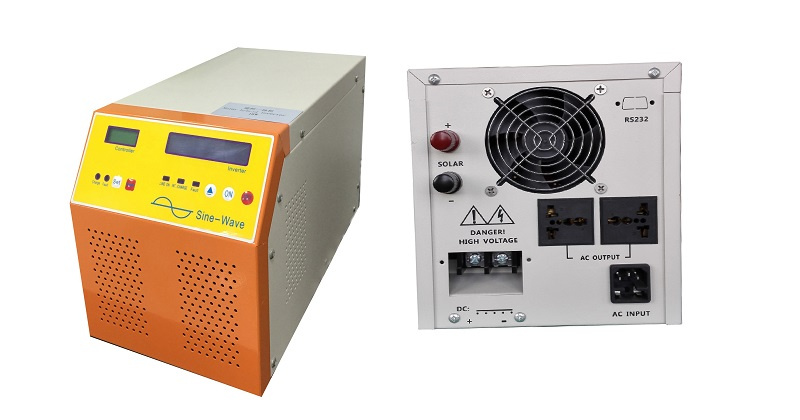

High Quality MPPT Hybrid Inverter 1kw 24V Pure Sine Wave

Name: High Quality MPPT Hybrid Inverter 1kw 24V Pure Sine Wave
Brand: all-electronics-online.com
SKU: 797815965
Availability: InStock
Rating: 4.3 (25 reviews)

Price:	US $ 150-154/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	SC 1KW
Model:	Sc
Product Name:	Hybrid Inverter
Use Type:	for Home
Serive Life:	10years
Warranty:	24years

Product Description

Tanfon Inverter Feature:
1.Combine with solar power controller and inverter hybrid function.
2.Completely controlled by CPU.
3.Inverter use copper transformer, pure sine wave output.
4..LCD displays, clearly to know the status.
5.have bypass function and AC charger (UPS function)
6.Perfect protection. Protect against anti-charge at night, battery over charger/over discharge, output short-circuit, against overload, against over-voltage, over-current protection ,etc.
7.Easy operation,only need connect the panels and batteries directly to the Hybrid solar inverter.

Model		SC300W	SC500W	SC700W	SC1000W
Rated power(W)		300W	500W	700W	1000W
Rated DC voltage(V)		12/24V			24/48V
Line input	Input voltage(V)	145-280V,90-127V
	Charge current(A)	5-15A
Inverter output	Output voltage(V)	220VAC±5% &5V,12V DC
	Output frequency	50Hz/60Hz±1%
	Wave form	Pure Sine Wave, THD<4%(Full Load)
Solar input	Maximum voltage(V)	21V or 42V or 84v
	Rated power(Wp)	300WP	500WP	700WP	1000WP
Solar Controller	Charge current(A)	30Amp	40A 20A	30A 20A	40A 20A
	MPPT range(V)	12v(10-17) or 24v(20-34)
	Charging efficiency	90%-95%, Peak on 97%
Other	Over charge protective voltage of battery(V)	12V(14.3),24V(28.6),48V(57.2)
	Over charge recover-voltage of battery(V)	12V(13.7),24V(27.4),48V(54.8)
	Voltage drop between solar module and battery(V)	≤0.3V
	Voltage drop between loads and battery(V)	≤0.15V
	Start speed of cooling fan	Have
	Environment Humidity	0-90% Maximum,non-condensable
	Protective Functions	Protection against anti-charge at night; Battery over charge;over discharge protection; Joint-reversed of solar modules
	Control method	MPPT
Size :DWH(mm)		390200220mm / 470280300mm
N.W&G.W(KG)		7/8	9/10	10/11	14/15

Model		SC1500W	SC2000W	SC3000W	SC5000W
Rated power(W)		1500W	2000W	3000W	5000W
Rated DC voltage(V)		24Vor48V	48V or 96V
Line input	Input voltage(V)	145-280V, 90-127V
	Charge current(A)	7-25A
Inverter output	Output voltage(V)	220VAC±5% &5V,12V DC
	Output frequency	50Hz/60Hz±1%
	Wave form	Pure Sine Wave, THD<4%(Full Load)
Solar input	Maximum voltage(V)	42V or 88V or 176V
	Rated power(Wp)	1500Wp	2000Wp	3000Wp	5000Wp
Solar Controller	Charge current(A)	50/30	40/30	60/40	80/60
	MPPT range(V)	24v(20-34)48v(40-68),96v(80-136)
	Charging efficiency	90%-95%, Peak on 97%
Other	Over charge protective voltage of battery(V)	24V(28.6),48V(57.2),96V(114)
	Over charge recover-voltage of battery(V)	24V(27.4),48V(54.8),96V(109.6)
	Voltage drop between solar module and battery(V)	≤0.5V
	Voltage drop between loads and battery(V)	≤0.25V
	Start speed of cooling fan	Have
	Environment Humidity	0-90% Maximum,non-condensable
	Protective Functions	Protection against anti-charge at night;Battery over charge/over discharge protection; Joint-reversed of solar modules
	Control method	MPPT
Size :DWH(mm)		465220480MM
N.W&G.W(kg)		26/32	32/38	40/49	44/52
