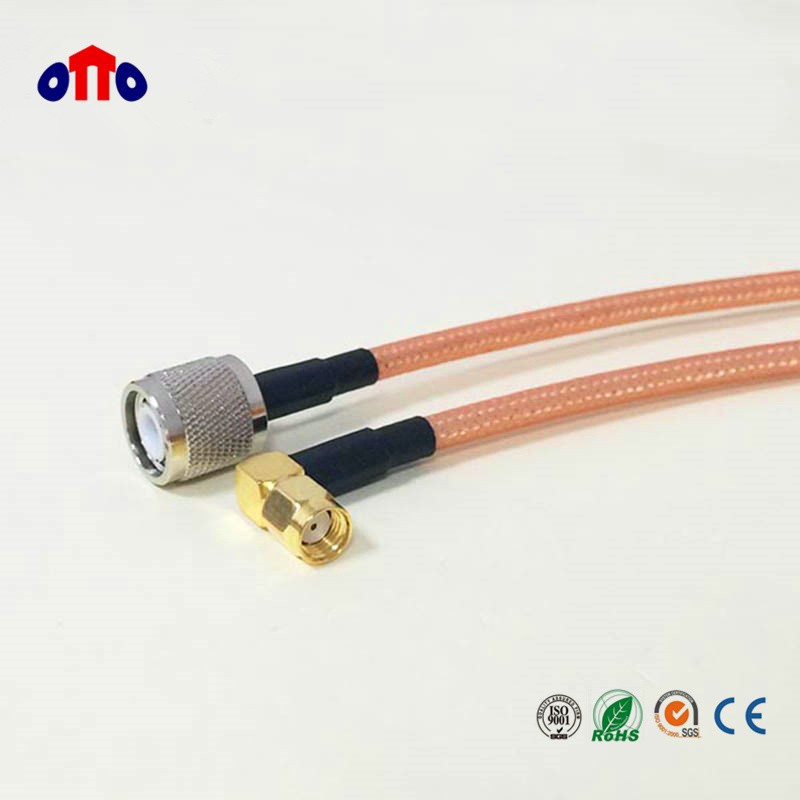

High Quality RF Coaxial Cable Rg142

Name: High Quality RF Coaxial Cable Rg142
Brand: all-electronics-online.com
SKU: 835598185
Availability: InStock
Rating: 4.6 (68 reviews)

Price:	US $ 0.1/Meter
Min Order:	5000/Meter
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	RG142
Inner Conductor:	0.94 Spccs/Spc
Application:	RF Cable
Certification:	UL
Conductor Material:	Spc
Cover Material:	LSZH/FEP
Type:	Coaxial Cable
Wire Core Material:	Spc
Model:	Rg142
Brand:	Otto

Product Description

RG Coaxial Cable(RG142B/U)
Construction
Item	Material	Diameter(Inch/mm)
Inner Conductor	SPCCS/SPC	0.037	0.94
Dielectric	PTFE	0.116	2.95
First Shield	SPC Braid 95% coverage	0.142	3.60
Second Shield	SPC Braid 95% coverage	0.165	4.20
Jacket	FEP/LSZH	0.195	4.95

Electrical Characteristics
Capacitance(pF/m)		96.5
Impedance(Ω)		50.0
Velocity of Propagation(%)		70.0
Conductor DCR(ohm/km)		63.3
Outer Shield DCR(ohm/km)		7.5
Max Operating Frequency(Mhz)		8000.0
Max Operating Voltage(VRMS)		1900.0
Operating Temperature(0C)		-55 to +200

Application
These kind of cables are serving for the data and wireless communication systems where higher sequences and lower attenuation required.

Packaging & Shipping

Our Services

Our company can fabricate coaxial cable assemblies for customer according to the customer's requirement ,like different length,different type connector and so on. We also can provide the detailed quality test report so that the performance is fine.

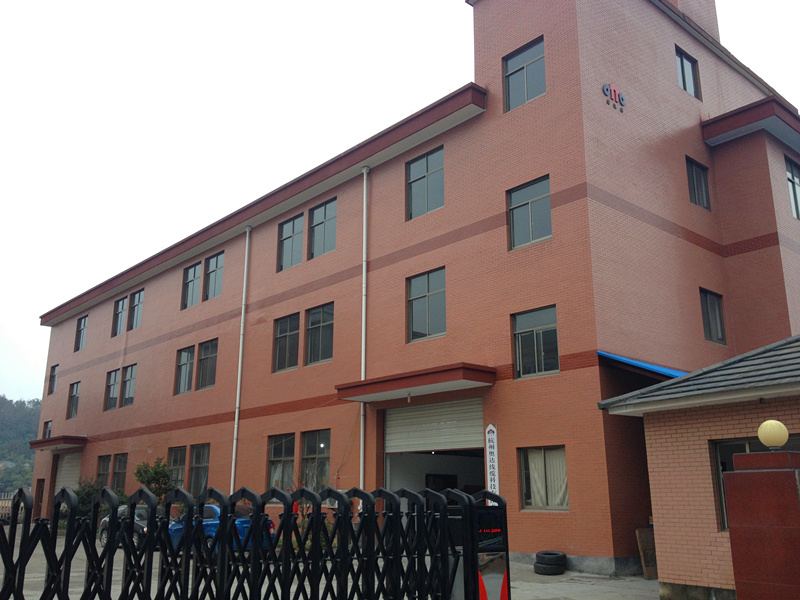

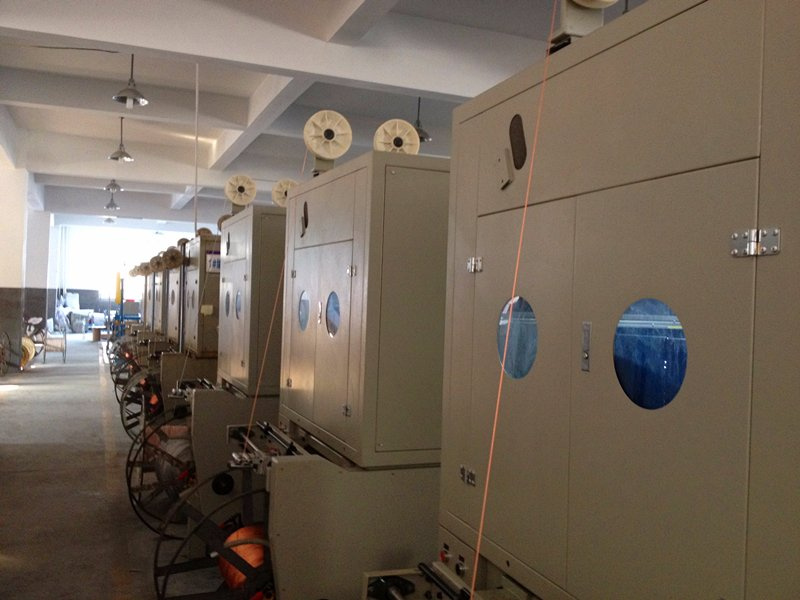

Company Information

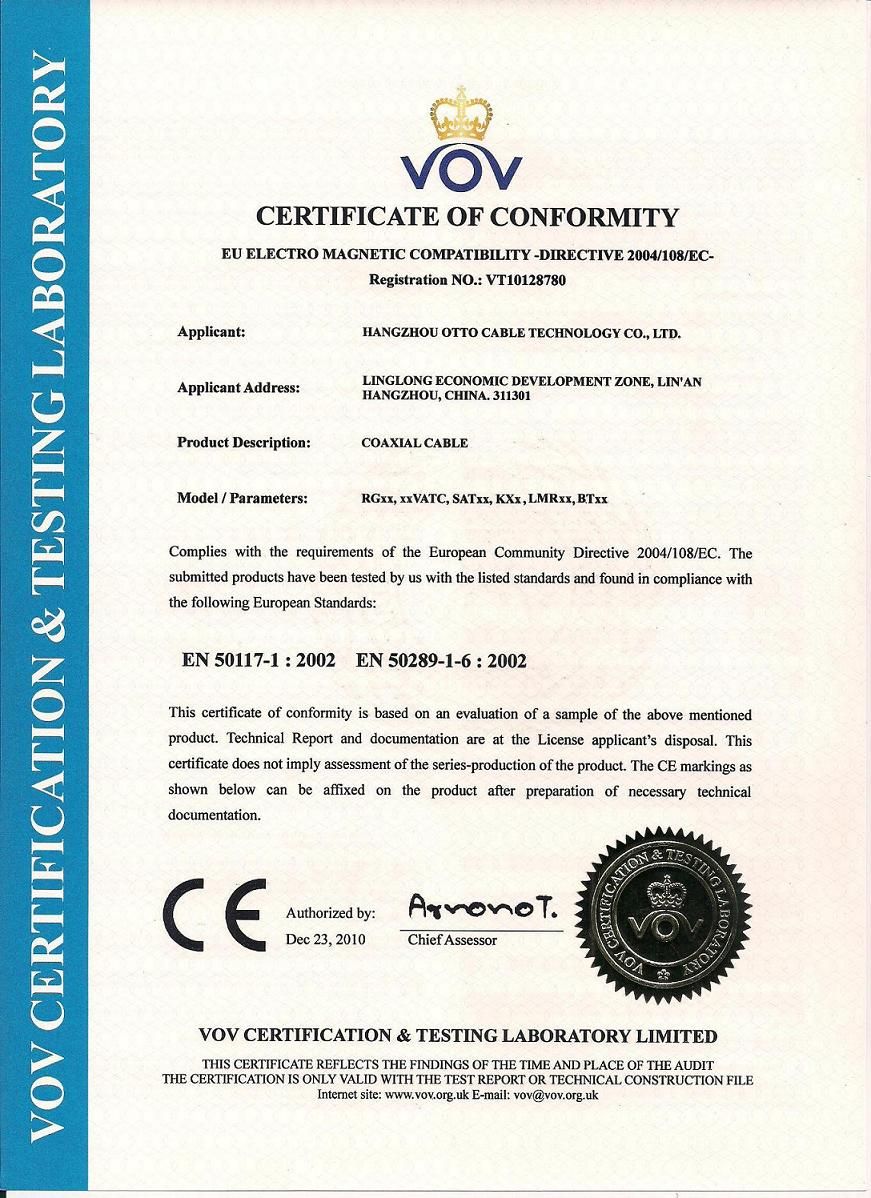

Certifications

Contact us

Otto Cable Technology Co., Ltd. is a Hi-Tech enterprise specializes in researching, manufacturing and selling 50 Ohm & 75 Ohm coaxial cables, cable assemblies and other related products.

After decades of practical experience and technical skills, we have been very professional on these products, which covers:

1). Wireless RF Transmission coaxial cable, 50 Ohms RG MIL-C-17 and JIS Spec coaxial cables, mainly applying to 4G, 3G, GSM, and CDMA telecommunication system, digital microwave communication system, DAS, GPS and other car antenna system.

50 Ohm coaxial cable assemblies/pigtails/jumper cables/pre-made coax cables usually fixed with various connectors, such as N, SMA, SMB, MCX, MMCX, TNC, BNC, UHF...

2). 75 Ohms RG MIL-C-17 Spec coaxial cables, CCTV, CATV-MATV coaxial cable, satellite coaxial cable, video coaxial cable, which are serving for existing and next generation TV network and security monitoring and control systems.

Besides of the standard coaxial cables, customer required cables and value-added services are also available in our company.
