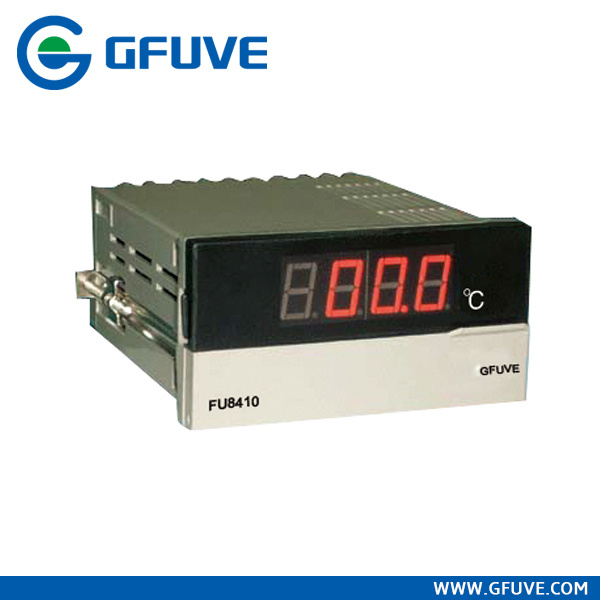

High Quality Temperature and Humidity Controllerst

Name: High Quality Temperature and Humidity Controllerst
Brand: all-electronics-online.com
SKU: 682985082
Availability: InStock
Rating: 4.9 (130 reviews)

Price:	Negotiable/Piece
Trade Terms:	FCA
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	FU8xxx
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Programmable:	Baud Rate and Other Paramete
Display Figures:	4 Bits (4½ Bits for DC)
Rated Input:	Temperature: PT100, J, K, T, E Thermocouple.
Frequency:	50Hz / 60Hz ±10%
Power Supply:	AC220V ± 20% or DC100~300V (Customization)
Power Consumption:	<3va
Insulation Strength:	2kv/Min. 2mA
Insulation Resistance:	100
Mtbf:	≥50000hrs

Product Description

Introduction
FU8000 series of the temperature digital meters is a traditional digital meter of the replacement products. This product has the function of traditional products, also has programmable functions, DC4~20mA analog output, RS-485 communication interface port and the switching signal output function. It has high accuracy, excellent EMC, and pleasing in appearance and so on.

Technical Parameter

Technical Parameters

Name	Measurement type
Programmable	PT, CT ratio, address, baud rate and other parameters.
Accuracy	0.5 class, frequency 0.2 class
Display figures	4 bits (4½ bits for DC)
Rated input	Current: 1A,5A; Voltage: 100V, 220V, 380V;
Rated input	Temperature: PT100,J,K,T,E thermocouple.
Over range	Current: 1.2 times continuous, 10 times/10s ;
Over range	Voltage: 2 times continuous
Frequency	50Hz / 60Hz ±10%
Power supply	AC220V ± 20% or DC100-300V (Customization)
Power consumption	<3VA
Insulation strength	2KV/min. 2mA
Insulation resistance	≥100MΩ
MTBF	≥50000Hrs
Working environment	Temperature: -25 to +55°C
Working environment	Humidity: ≤98% RH, without condensation
Real-time output	DC4-20mA, load capacity: ≤400Ω
Data output	RS485 port (Modbus-RTU protocol)
Switching input	Remote signal input (self power supply): AC or DC 220V
Switching output (self-control)	Normally open contact output: AC 250V / DC 30V, 5A
FU8 - Dimension code- Product code - Function code - Display
Dimension code	0: 48 x 48 x 100mm
	2: 120 x 120 x 81mm
	3: 96 x 96 x 98mm
	4: 96 x 48 x 112mm
Product code	0: Single phase AC current
	1: Single phase AC voltage
	2: One route DC current
	3: One route DC voltage
	4: Frequency
	5: Single phase power factor
	6: Temperature
	8: All of the electric parameters
Function code	0: Display only
	1: RS485
	2: 1DO
	3: 1AO
	4: 1DO + RS485
	5: 1AO + RS485
	6: 1DO + 1AO
	7: 1DO + 1AO + RS485
	8: 2DO + 1AO
	9: 2DO + RS485
	A: 1DI + 1DO + RS485
	B: 2DI + 2DO + RS485
Display	(Nothing): LED
Display	Y: LCD

Beijing GFUVE Electronics Co., Ltd. Was established in 2005. It combined science, industry and trade together as one high-tech enterprise. GFUVE mainly produces split core current transformer, high voltage ammeter recorder, IEC61850 test suite software, meter test equipment, current probe, reference standard meter, phantom load power source, electrical measurement instrument, relay test set, transformer test, handheld terminal and POS terminal, and power meter, power analyzer, intelligent digital meter, transducer, voltage transformer and current transformer models etc.

GFUVE is a leader manufacturer of energy meter test products and high voltage ammeter recorder in China. It is professional in energy meter test system, energy meter portable tester and related accessory of current probe. The product of high voltage ammeter recorder develops very quickly in the market. Our company has achieved certification to ISO9001. The products are sold to over 30 provinces in China and exported to overseas including South America, Middle East, South east and Africa.

We have been contributing ourselves to developing the durable and stable products for the usage of the power system. Contact us now for further business relationship. We are here to provide you the best service.
