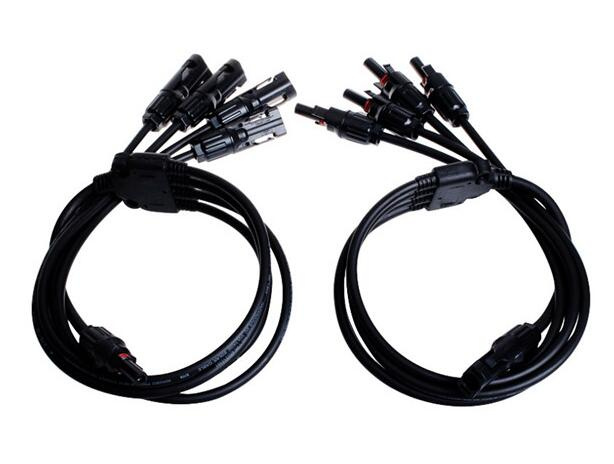

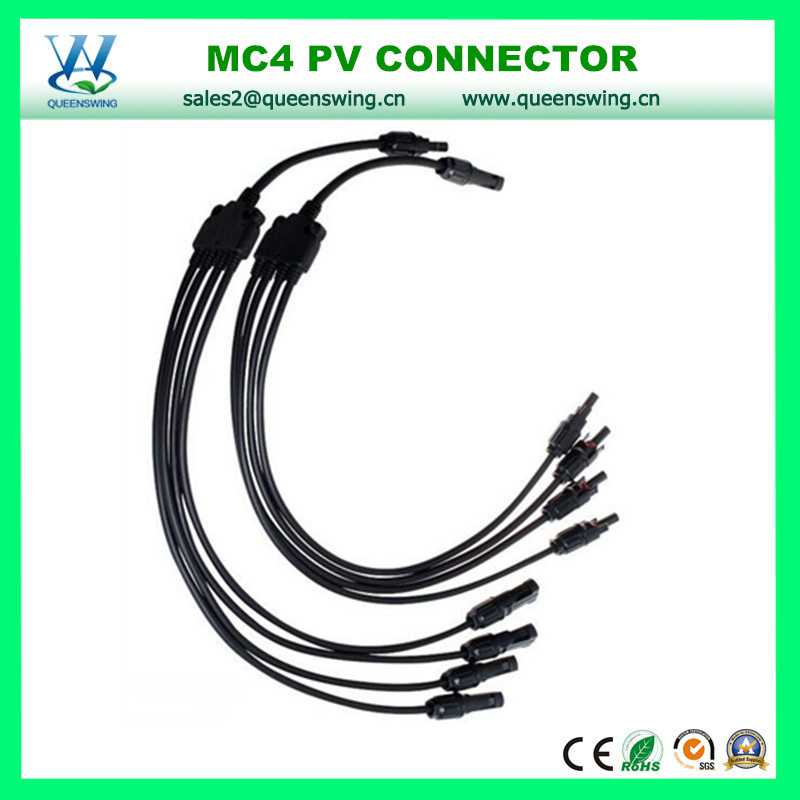

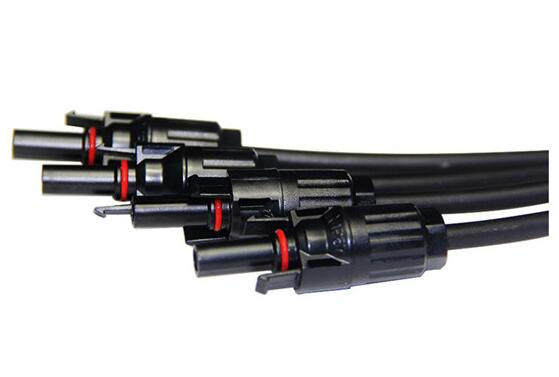

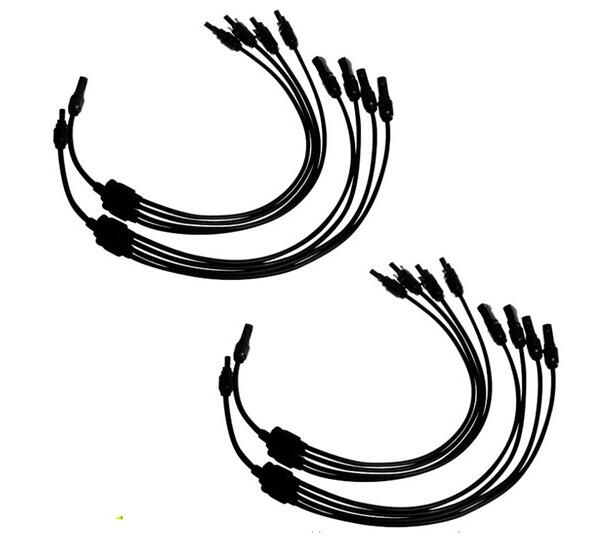

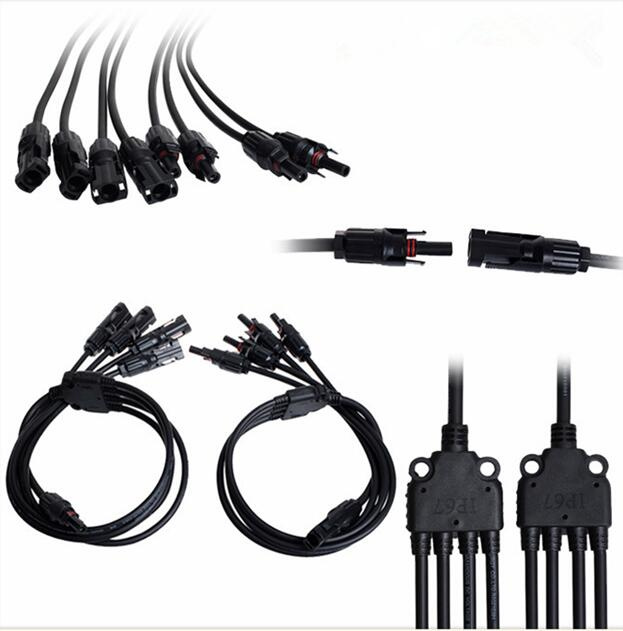

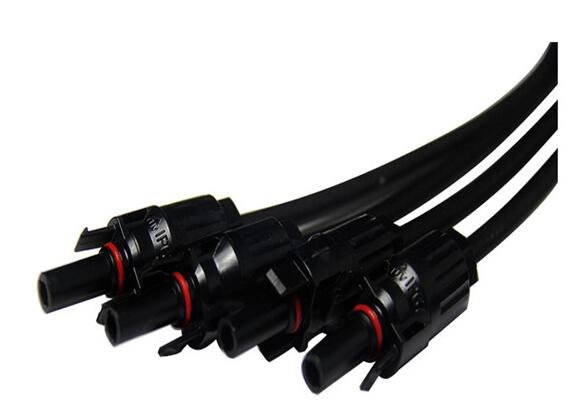

High Quality Y Type 4 in 1 Mc4 Solar PV Connector

Prod Model:	QW-YMC4-4
Conductor Type:	Stranded
Material:	Copper
Character:	IP67
Species:	Plug
Shape:	Mc4 Y Type
Interface Type:	DC/DC
Rated Voltage:	600/ 1000VDC
Contact Resistance:	Less Than 0.5m Ohm
Temperature Range:	-40c ~ + 85c
Gender:	Female
Application:	Power

Product Description

Y-Type 1 to 2 MC4 Solar Panels PV Connector


Description:

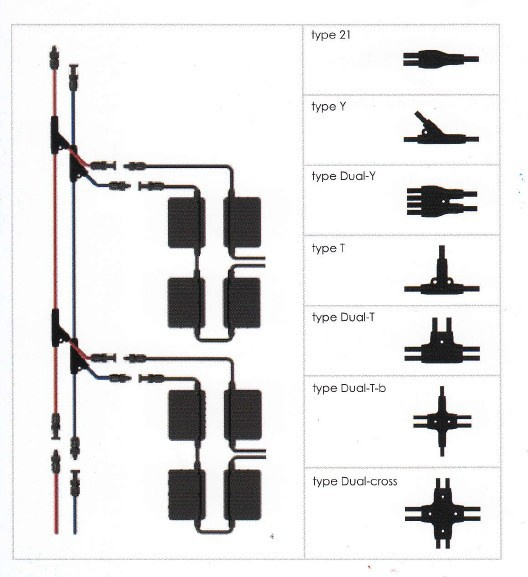

These are MC4 Style Branch Connector Cables. This Y Style MC4 compatible Solar Cable Connector Set is a perfect solution to parallel connect multiple panels together in a solar field, and is typically used in parallel applications.


Feature:
-1 Pair of Y Type MC4 Solar Panel Cable Connectors: One female to double male (F/M/M) and one male to double female (M/F/F)
-It can be used in harsh environment
-Compatible Mc4
-Double seal rings for better waterproof effect
-Compatible with PV cables with different insulation diameters
-It can be used in harsh environment
-With excellent aging resistance and UV endurance
-Created seal, design of dust proof
-Load capability with big current and high voltage
-Quick & simple assembly processing and simple removal of plugs without the aid of any extra instrument
-Strong pulling force capability
-Resistance of extra high & low temperature and fireproof
-Lower contact resistance

Characteristics:

Insulation material:	PPO
Rated Voltage	TUV 1000 DC/ UL 600V DC
Test voltage	6KV(50Hz,1Min)
Contact material	copper, tin plated
Contact resistance	less than 0.5 m ohm
Degree of protection	IP67
Pollution Degree	2
Protection class	Class II
Flame calss	UL94-V0
Plug Force	less than 50N
Withdrawal force	more than 50N
Ambient temperature range	-40  ~ +  90.
Compatible cable cross sections  Solar cable	4.0 mm²
Pin dimention	4.0mm

Package Includes
-1 Pair of Y Type MC4 Solar Panel cable Connectors(one Male & one female)

FAQ:

Q: Is sample available and free?
A: Sample is avaible, but the sample cost should be pay by you.
The cost of sample will be refund after further order.

Q:Do you accept customized order?
A:Yes, we do.

Q: What's the delievery time?
A: It usually takes 4-27 days after confirming payment, but specific time should be based on the order quantity.
