Y-Type 1 to 2 Mc4 Solar Panels PV Connector

Prod Model:	QW-Y-MC4
Conductor Type:	Stranded
Material:	Copper
Character:	IP67
Species:	Plug
Shape:	Mc4 Y Type
Interface Type:	DC/DC
Rated Voltage:	600/ 1000VDC
Contact Resistance:	Less Than 0.5m Ohm
Temperature Range:	-40c ~ + 85c
Gender:	Female
Application:	Power

Product Description

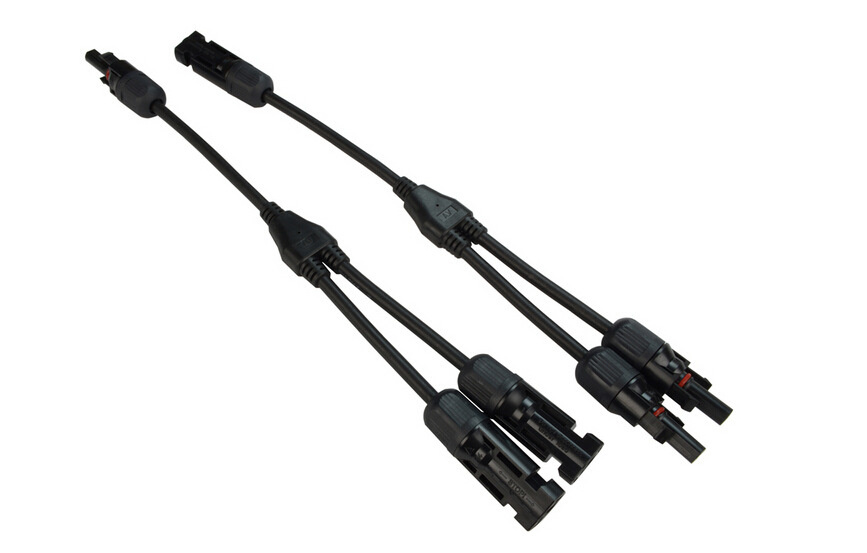

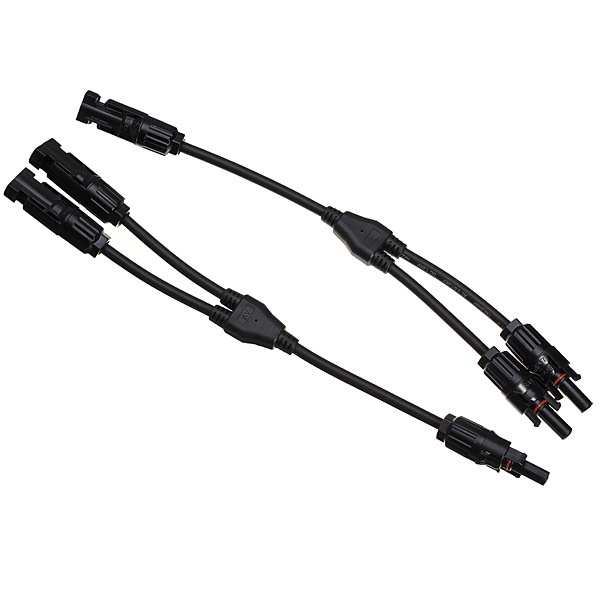

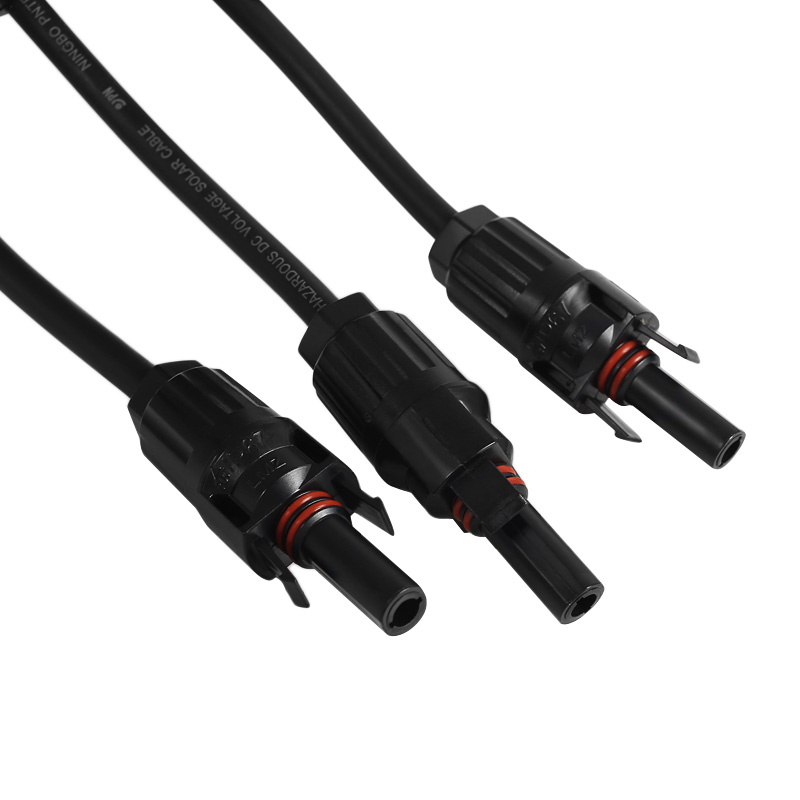

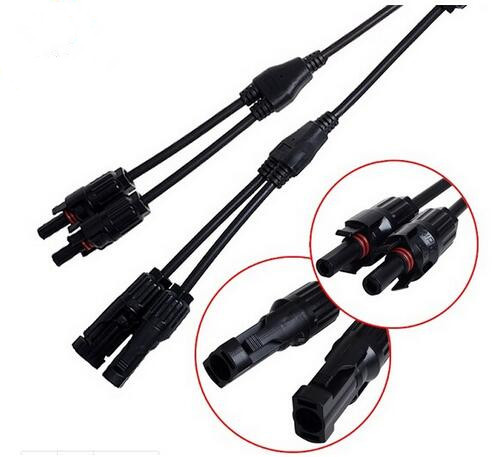

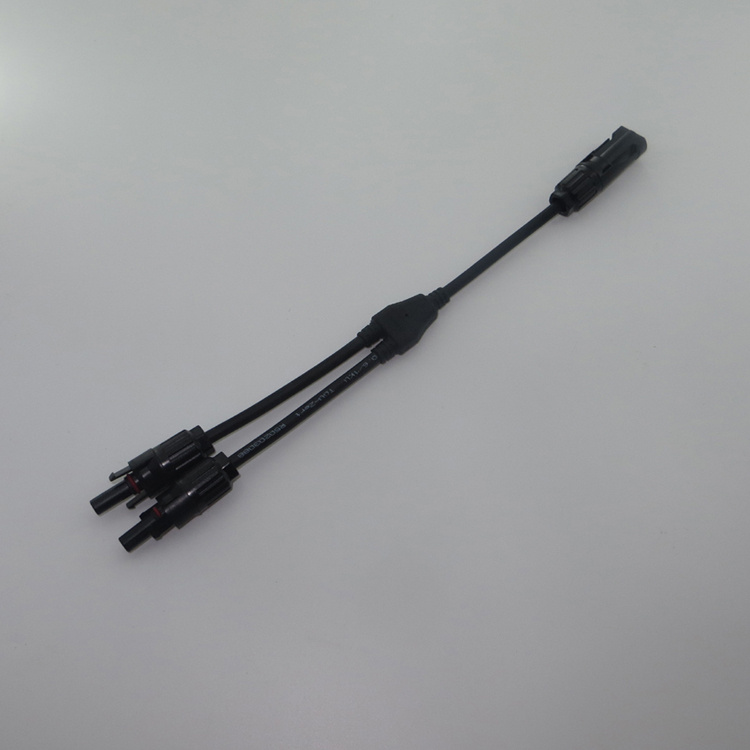

Y-Type 1 to 2 MC4 Solar Panels PV Connector

Description:
These are MC4 Style Branch Connector Cables. This Y Style MC4 compatible Solar Cable Connector Set is a perfect solution to parallel connect multiple panels together in a solar field, and is typically used in parallel applications.


Feature:
-1 Pair of Y Type MC4 Solar Panel Cable Connectors: One female to double male (F/M/M) and one male to double female (M/F/F)
-It can be used in harsh environment
-Compatible Mc4
-Double seal rings for better waterproof effect
-Compatible with PV cables with different insulation diameters
-It can be used in harsh environment
-With excellent aging resistance and UV endurance
-Created seal, design of dust proof
-Load capability with big current and high voltage
-Quick & simple assembly processing and simple removal of plugs without the aid of any extra instrument
-Strong pulling force capability
-Resistance of extra high & low temperature and fireproof
-Lower contact resistance


Specification:
-Cable specification: 4mm2(AWG12)
-Rated Current: 30A
-Rated voltage: 1000VDC
-Contact resistance: ≤ 0.2mmΩ
-Waterproof degree: IP67
-Flame class: UL94-VO
-Safety Class: II
-Withdrawal force: ≥ 50N
-Insertion force: ≤ 50N
-Insulation material: PPO + PA
-Connecting system: Crimping connection
-Temperature range: -40 ~ +90 Celsius degree
-Cable length: 31cm

Package Includes
-1 Pair of Y Type MC4 Solar Panel cable Connectors(one Male & one female)


Application
The connector is part of the circuit is connected to a plurality of solar cell modules into a system, it can be said that more formal terminals, or called fast connections, you can always plug connection.

Y - type three - way connector (with line) is the most commonly used in the solar photovoltaic power generation system, and with the international PV connector, with the following advantages:
1. Due to the 1 way connector with wire, with good flexibility, easy to install the system;
2. Easy to repair, if one of the joints is broken, at any time can be replaced, without the full replacement, save costs;
3. With connected quickly and reliably, waterproof and dustproof, use is convenient wait for a characteristic, the case is a strong anti-aging, anti ultraviolet ability, high and low temperature resistance.
Y type three way connector


Technical Data

Insertion Force	≤60N
Extraction force	≥60N
Rated voltage	600~1000VDC
Current Rating	30A
Protection	IP67
Contact resistance	≤0.5mΩ
Cable specification	2.5mm²~6 mm²
Temperature range	-40 ° C ~ + 85 ° C
Flammability rating	UL94V-0


Key Commercial Data


Packing unit	1000pc
Minimum order quantity	1000 pc
Weight per Piece (excluding packing)	120 g
Custom tariff number	8536909000
Country of origin	China
