Mc4 Connector (MCH201)

Prod Model:	MCH201
Conductor Type:	Stranded
Conductor Material:	Copper
Sheath Material:	PVC
Insulation Material:	PVC
Gender:	Female
Application:	Power

Product Description

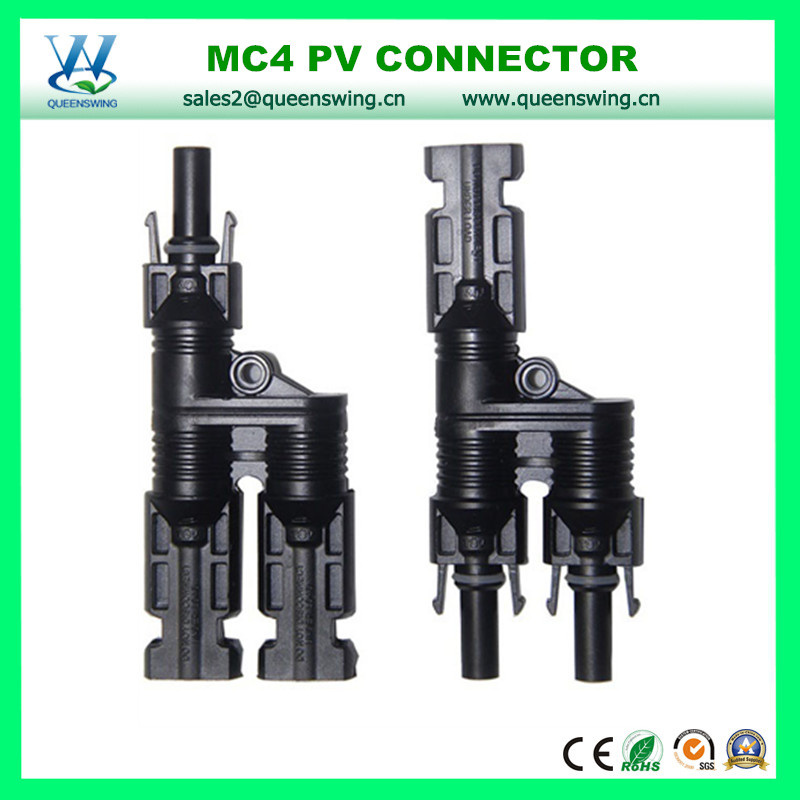

MC4 Connector (MCH201)

Description:
These are H Type MC4 Style Branch Connectors. They are used to connect multiple solar panels or groups of solar panels together in a solar field, and typically used in parallel applications.

Application:
MC4 Connector Systems used to connect Renogy Solar Panels consist of male and female MC4 connectors and branch connectors. This type of connector system is easy to install and uses "snap-in" safety locking tabs to lock two mating connectors, thereby avoiding unintentional disconnection. Also, the mating contacts are sealed against ingress of dust and water.

Feature:
-1 Pair of H Type MC4 Male/Female Solar Panel Cable Connectors(one female to double male (F/M/M) and one male to double female (M/F/F)
-Compatible Mc4
-Compatible with PV cables with different insulation diameters
-It can be used in harsh environment
-With excellent aging resistance and UV endurance
-Created seal, design of dust proof
-Load capability with big current and high voltage
-Quick & simple assembly processing and simple removal of plugs without the aid of any extra instrument
-Strong pulling force capability
-Resistance of extra high & low temperature and fireproof
-Lower contact resistance

Specification:

Type And meaning
Rated current					30A
Rated voltage					1000V DC
Test voltage					6000v(50Hz,I min)
Overvoltage Category/pollution degree					CAT II/2
Contact resistance of plug connector					Im Ω
Contact material					copper,Tin-plated
Insulation material					PA/PRO
Degree of protection					IP2*/IP65
Flame class					UL94-VO
Safety class					II
Insertion force					≤50N
withdrawal force					≥50N
Temperature range					-40ºC~+110ºC

Package includes:
1 Pair of H Type MC4 Solar Panel cable Connectors(Male & Female)
