High Rate AGM Battery

Name: High Rate AGM Battery
Brand: all-electronics-online.com
SKU: 835294645
Availability: InStock
Rating: 4.4 (132 reviews)

Price:	US $ 10-20/Piece
Min Order:	10/Piece
Pay Type:	T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Weight:	1.81kg
Capacity:	21ah
Terminal:	17
Usage:	Electric Bicycle/Tricycle
Nominal Voltage:	12V
Discharge Rate:	High Discharge Rate
Shape:	Square Battery
Rechargeable:	Chargeable
Type:	Lead Carbon

Product Description

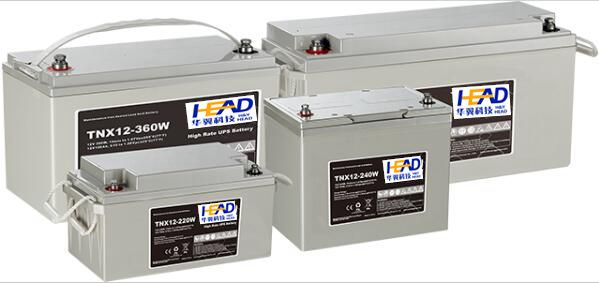

High Rate AGM Battery - TNX

Industry Reserve Battery
High Rate UPS Battery)
Positive plate - Patent rare earth alloy grid with special paste for corrosion resistance
Negative p

Construction:
Positive plate - Patent rare earth alloy grid with special paste for corrosion resistance
Negative plate - Balanced Pb-Ca grid for improved recombination efficiency
Separator - Advanced AGM separator for high pressure cell design, The electrolyte is completely absorbed into the separator
Electrolyte - Dilute high purity sulfuric acid
Battery container and cover - ABS UL94-HB (Flame-resistant ABS UL94-V0 is optional)

Features:
10 year Design Life @ 25°C
Absorbent Glass Mat (AGM) technology for efficient gas recombination of over 99%
Patented rare earth alloy having the lowest calcium levels in the industry minimizing grid growth, reducing gassing, and extending battery life.
Flame retardant ABS case and covers

Application
Data Centers
Network Operations Centers
Industrial Process Control Facilities
Internet Housing Sites
Semiconductor Manufacture
Banks & Financial Markets

Model	Nominal Voltage (V)	Rated Voltage (15min rate)	Nominal Capacity C10 (AH) 1.80Vpc/25°C	Dimension (mm)				Weight (kg)	Dimension (Inch)				Weight (lbs)	Terminal
Model	Nominal Voltage (V)	Rated Voltage (15min rate)	Nominal Capacity C10 (AH) 1.80Vpc/25°C	L	W	H	TH	Weight (kg)	L	W	H	TH	Weight (lbs)	Terminal
TNX12-21W	12	21	5.5	90	70	101	107	1.80	3.54	2.76	3.98	4.21	3.98	T1/T2
TNX12-25W	12	26	7.2	151	65	93.5	99	2.18	5.94	2.56	3.68	3.90	4.82	T2
TN12-28W	12	28	7.3	151	65	93.5	99	2.25	5.94	2.56	3.68	3.90	4.97	T2
TNX12-29W	12	29	7.8	151	65	93.5	99	2.50	5.94	2.56	3.68	3.90	5.53	T2
TNX12-32W	12	32	8.1	151	65	93.5	99	2.45	5.94	2.56	3.68	3.90	5.42	T2
TNX12-35W	12	35	8.5	151	65	93.5	99	2.66	5.94	2.56	3.68	3.90	5.88	T2
TNX12-50W	12	50	12.5	151	98	95	101	4.05	5.94	3.86	3.74	3.98	8.95	T2
TNX12-60W	12	63	18.8	181.5	77	167.5	167.5	5.78	7.15	3.03	6.59	6.59	12.78	I1
TNX12-70W	12	67	19.5	181.5	77	167.5	167.5	6.00	7.15	3.03	6.59	6.59	13.27	L1
TNX12-80W	12	81	20.0	181.5	77	166.5	166.5	6.90	7.15	3.03	6.56	6.56	15.26	I1
TNX12-100W	12	100	28.0	166	175	125	125	8.60	6.54	6.89	4.92	4.92	19.01	L1
TNX12-120W	12	120	34.5	195	130	164	180	10.50	7.68	5.12	6.46	7.09	23.21	B2
TNX12-125W	12	126	41.8	197	165	170	170	13.20	7.76	6.50	6.69	6.69	29.18	I3
TNX12-220W	12	221	70.0	348	167	178	178	21.00	13.70	6.57	7.01	7.01	46.43	I3
TNX12-240W	12	240	75.0	260	168	208	214	22.30	10.24	6.61	8.19	8.43	49.30	I3
TNX12-360W	12	360	108.0	330	173	212	220	30.40	12.99	6.81	8.35	8.66	67.21	I7
TNX12-480W	12	484	128.0	408	177	225	225	37.60	16.06	6.97	8.86	8.86	83.13	I7
TNX12-490W	12	490	150.0	483	170	238.5	238.5	43.50	19.02	6.69	9.39	9.39	96.18	I7
TNX12-650W	12	650	210	520	239	220	225	64.20	20.47	9.41	8.66	8.86	141.94	I7
TNX12-690W	12	690	200	520	239	220	225	62.00	20.47	9.41	8.66	8.86	137.08	I7
TNX12-790W	12	790	250.0	522	268	220	226	73.00	20.55	10.55	8.66	8.90	161.40	I7
TNX12-800W	12	800	240	521	240	218.5	223.5	67.10	20.51	9.45	8.60	8.80	148.35	I7
TNX12-1000W	12	1000	250	520	268	220	225	72.50	20.47	10.55	8.66	8.86	160.29	I7
