Product Description

Product Details

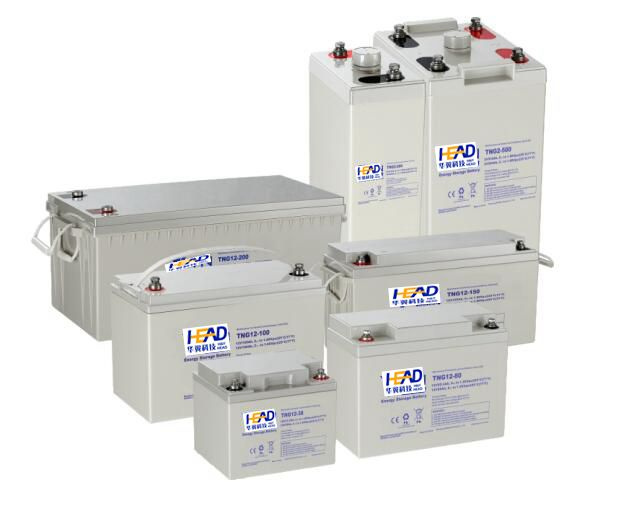

Industry Energy Storage Battery (Deep Cycle GEL / Solar Battery)
The TNG Series integrate patent nano gel electrolyte with up-to-date AGM structure. The range offers over 12 years design life with very high deep cycling capabilities. This range is highly suited to telecom outdoor application, renewable energy system and other harsh environment applications.

Construction:
Positive plate - Thick patent rare earth alloy grid with special paste for corrosion resistance
Negative plate - Balanced Pb-Ca grid for improved recombination efficiency
 Separator - Advanced AGM separator for high pressure cell design
 Electrolyte - Dilute high purity sulphuric acid with nano gel for longer cycle life
  Battery container and cover - ABS UL94-HB (Flame-resistant ABS UL94-V0 is optional)

Features:
 12 years design life at floating condition
 Wide operating temperature range from -20°C to +50°C
 Nano gel electrolyte eliminate the acid stratication and prolong cycle life
 Can be used at vertical or horizontal orientation
 Float current decreased 30% lead to excellent high temperature resistance
 Thicker plate with patent rare earth alloy grid with special paste for corrosion resistance
 Low self-discharge rate and long shelf life
 Excellent deep discharge recovery capability

Application
 Renewable energy system
 Hybrid solar power system
 Uninterrupted Power Supply (UPS)
 Communications and electric equipment
 Emergency lighting equipment
 Fire alarm and security systems
 Robots, control equipment, and other factory automation equipment
 Emergency power supply (EPS)
 Various power toys and hobby equipment
 Lighting equipment
