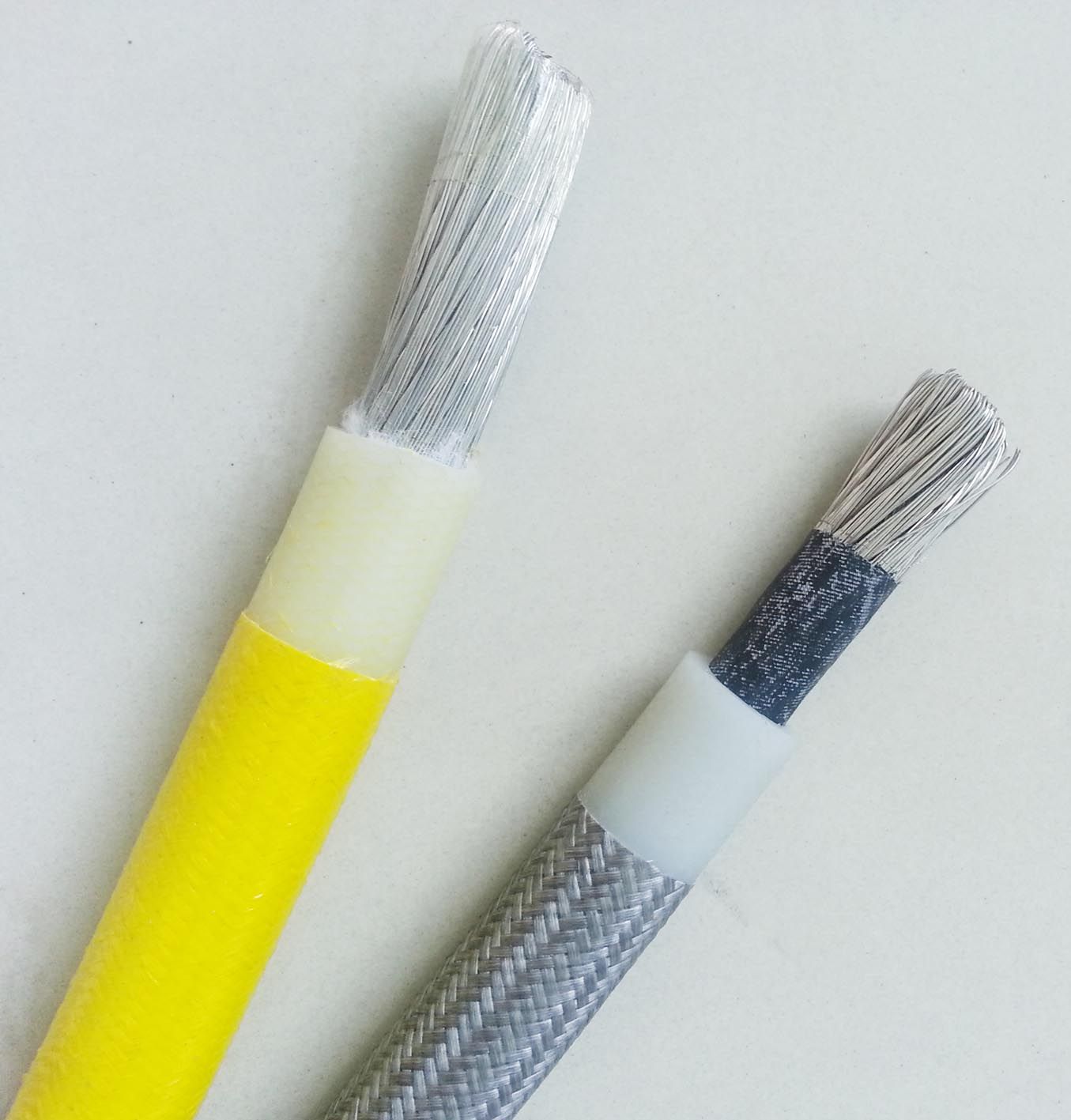

High Temperature Resist Silicone Rubber Flexible Cable

Name: High Temperature Resist Silicone Rubber Flexible Cable
Brand: all-electronics-online.com
SKU: 667212225
Availability: InStock
Rating: 4.8 (133 reviews)

Price:	Negotiable/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	1000/Meter
Pay Type:	L/C,T/T,D/P,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	SIF/ SIAF/AGRP
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Insulated
Conductor Type:	Stranded
Application:	Wire Harness
Conductor Material:	Copper
Insulation Material:	Silicone Rubber
Certification:	VDE
Sheath Material:	Glass Fiber Yarn
Brand:	Hoochan

Product Description

Competitive price, Fast Delivery
Good quality and after sales services
UL/cUL approved wire, file No.: E206992
Strong supply capability

Rated Voltage: 300V
Rated temperature: -60+180C DEGREE
Conductor: Tin-coated, nickel-coated or silver-coated copper wire
Insulator: Silicone rubber

Applicable for high temperature environment such as electron, electrical household appliance internal leading wire, wire harness

Different packing ways for safe sea freight or air shipment.

Mechanical properties

Tensile strength: ≥5N/mm²

Elongation at break of insulation: ≥150%

Min.Bending radius: 6×OD
Characteristics:
The braided synthetic yarn covering, which is applied directly over the insulation, gives the cable, because of its short braiding pitch and high compactness, an excellent mechnical protection by maintaining good flexibility.

The varnishing of the braiding results in good antifriction properties, high abrasion resistance and excellent chemical resistance against transformer oil, light fuel oil and most types of cleaning agents.
In the event of fire, no corrosive and toxic gases will be given off.
Hence, damage caused by fire can be kept to minimum.

Size	Conductor		Insulate Thickness		Braiding thickness	Wire OD		Resist.
	Structure	OD	Nominal	OD		Nominal	Toler.	Ω/KM
mm²	No./mm	mm	mm	mm	mm	mm	mm	Max.
0.25	14/0.15	0.65	0.6	1.85	0.20	2.25	±0.15	80.9
	8/0.20
0.35	20/0.15	0.75	0.6	1.95	0.20	2.35	±0.15	55.0
	11/0.20
0.5	28/0.15	0.95	0.6	2.15	0.20	2.55	±0.15	40.1
	16/0.20
0.75	24/0.20	1.15	0.6	2.35	0.20	2.75	±0.15	26.7

1.0	32/0.20	1.34	0.6	2.55	0.20	2.95	+0.20	20.0
							-0.15
1.5	30/0.25	1.6	0.7	3.00	0.20	3.40	+0.20	13.7
							-0.15
2.5	49/0.25	2.0	0.8	3.60	0.25	4.10	+0.30	8.21
							-0.15
4.0	56/0.30	2.7	0.8	4.30	0.25	4.80	+0.30	5.09
							-0.15
6.0	84/0.30	3.3	0.8	4.90	0.25	5.40	+0.30	3.39
							-0.15
10	84/0.40	4.6	1.0	6.60	0.25	7.10	+0.30	1.95
							-0.15
16	126/0.40	5.8	1.0	7.80	0.25	8.30	+0.30	1.24
							-0.15
25	196/0.40	7.3	1.2	9.70	0.25	10.2	+0.40	0.795
							-0.20
35	276/0.40	8.6	1.2	11.0	0.30	11.6	+0.40	0.565
							-0.20
50	396/0.40	10.7	1.4	13.5	0.30	14.1	+0.40	0.393
							-0.20
70	360/0.50	12.4	1.4	15.2	0.35	15.9	+0.40	0.277
							-0.20
95	475/0.50	14.5	1.6	17.7	0.35	18.4	+0.50	0.210
							-0.25
120	608/0.50	16.0	1.8	19.6	0.35	20.3	+0.50	0.164
							-0.25
150	756/0.50	18.0	2.0	22.0	0.35	22.7	+0.50	0.132
							-0.25
185	925/0.50	20.0	2.2	24.4	0.40	25.2	+0.60	0.108
							-0.30
240	1221/0.50	23.0	2.4	27.8	0.40	28.6	+0.60	0.0817
							-0.30
300	1517/0.50	26.0	2.8	31.6	0.40	32.4	+0.60	0.0654
							-0.30

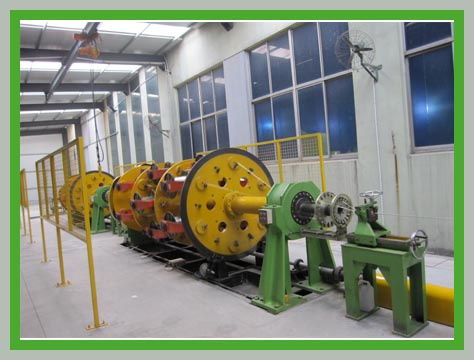

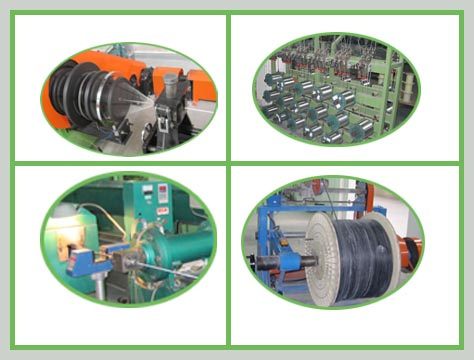

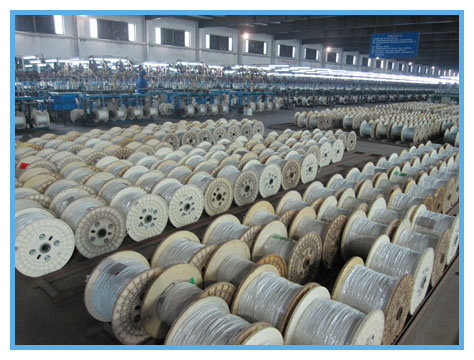

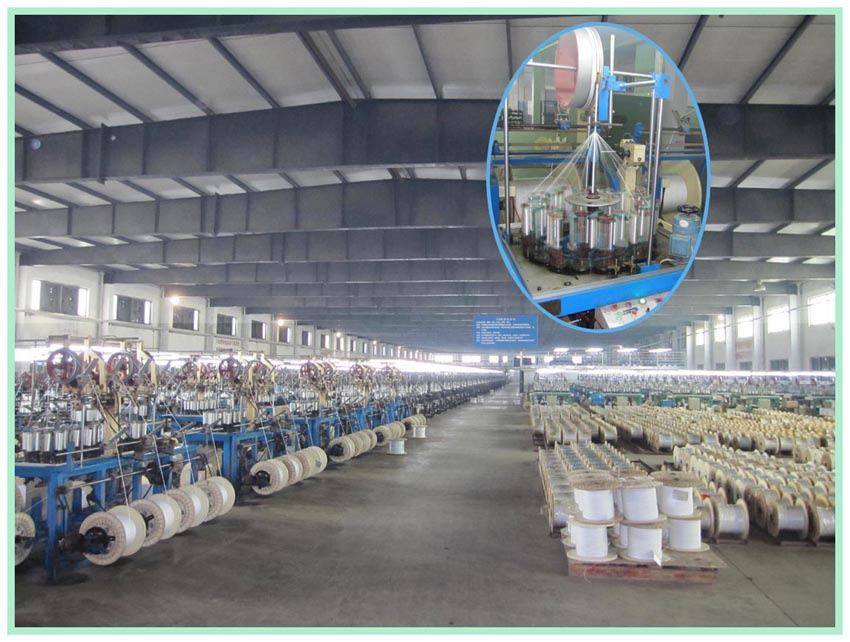

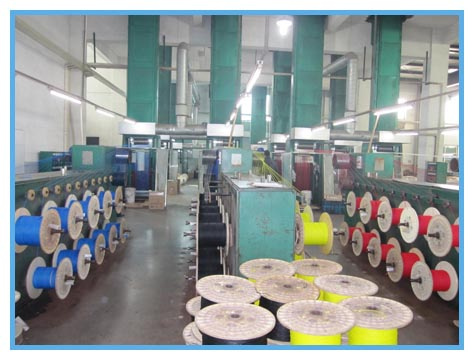

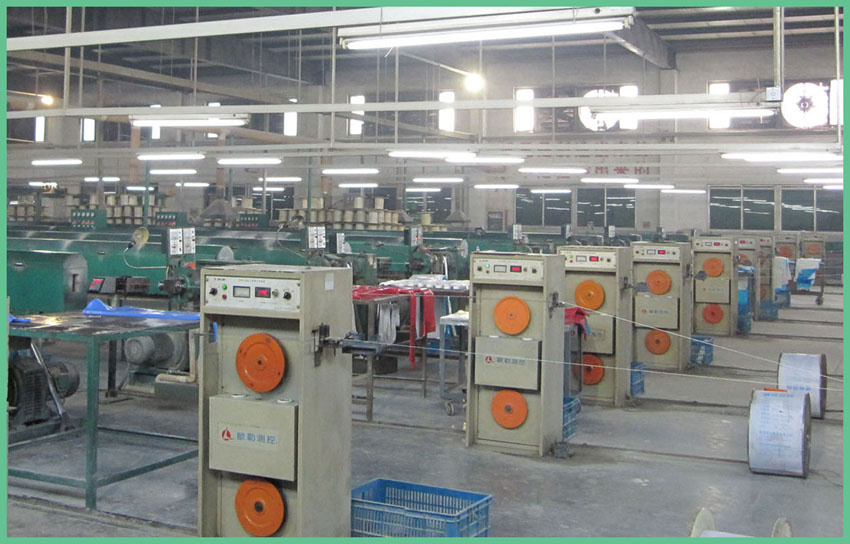

Wuxi Huacheng Cable Co., Ltd. is specialized in production of heat resistant silicone rubber wire & cable, also engaging in its R & D field, total building covers about 20000 square meters, with kinds of advanced Rubber extruding machines, Coating equipment lines, Braiding machines 1500 sets etc. After tens of year constant development, our annual output is more than 250, 000 KMS and became the famous leader and production base in domestic market.

Most of the products have passed USA UL/cUL, Germany VDE, China CCC, Japan F-MARK and ROHS Certification, completely meet with EU environment protect policy requirement, acquired ISO9001: 2000 International Quality Management & ISO14001 Environment Management Certification. All the staff exalt the tenet "Pursue truth, Honor fact, Keep Innovation", insisting on the quality policy of "Customer's wishes oriented, adopting PDCA circulation, continuously improve product and service, fully satisfying customers", based on above, our products sell well everywhere, applying to famous corporations, and even sell far to Occident, Mid-east, Southeast Asia countries and area, acquire good reputation and approval of customers.

More than hundreds of series of products are optional for customer's choice, mainly used for new energy, wind power motor, metallurgy, power, railway, home electrical appliance, lighting relative fields.
