High Temperature Resistant Silicone Rubber Install Wire

Name: High Temperature Resistant Silicone Rubber Install Wire
Brand: all-electronics-online.com
SKU: 667216765
Availability: InStock
Rating: 4.3 (103 reviews)

Price:	US $ 0.002-9.9/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	3000/Meter
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	AWM3122
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Insulated
Conductor Type:	Stranded
Application:	Wire Harness
Conductor Material:	Copper
Insulation Material:	Silicone Rubber
Certification:	VDE
Sheath Material:	Fiber Glass
Brand:	Hoochan

Product Description

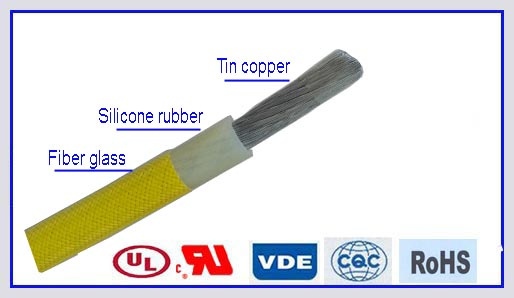

Conductor: bare copper, tinned copper
Insulator: silicone rubber
Jacket: Fiber glass braiding with silicone resin coating

Rated temp:200ºC
Rated volt:300V
Test Voltage: 2000V. 1Min
Flame test: FT 2

Mechanical properties:

Tensile strength: ≥3.45N/mm²

Elongation at break of insulation: ≥100%

Min.Bending radius: 6×OD
Standard: UL758, UL62, UL1581

Applicable for high temperature environment such as electron, electrical household appliance, lamps and lanterns, combustion equipment, wire harness etc.

AWG	Conductor			Insulation		Brading thickness	Wire OD		Resist.
	Size	Structure	OD	Nominal	OD		Nominal	Toler.	Ω/KM
NO.	mm²	No./mm	mm	mm	mm	mm	mm	mm	Max.
26	0.128	7/0.16	0.48	0.38	1.25	0.15	1.55	±0.10	148

24	0.205	7/0.20	0.60	0.38	1.40	0.15	1.70	+0.20	93
								-0.10
22	0.324	7/0.25	0.75	0.38	1.55	0.15	1.85	+0.20	55
		13/0.18						-0.10
20	0.519	7/0.31	0.93	0.38	1.7	0.15	2.00	+0.20	34.6
								-0.10
18	0.823	7/0.39	1.20	0.38	2.00	0.15	2.30	+0.20	23.2
		33/0.18
		16/0.254						-0.10
16	1.31	7/0.49	1.50	0.38	2.30	0.15	2.60	+0.20	14.6
		52/0.18						-0.10
20	0.519	10/0.254	0.96	0.38	1.75	0.15	2.05	+0.20	34.6
		21/0.18						-0.10
18	0.823	33/0.18	1.20	0.38	2.00	0.15	2.30	+0.20	23.2
								-0.10
16	1.31	26/0.254	1.55	0.38	2.35	0.15	2.65	+0.20	14.6
								-0.10
26	0.128	1/0.42	0.42	0.38	1.20	0.15	1.50	±0.10	142

24	0.205	1/0.52	0.52	0.38	1.30	0.15	1.60	+0.20	89
								-0.10
22	0.324	1/0.65	0.65	0.38	1.45	0.15	1.75	+0.20	54.3
								-0.10
20	0.519	1/0.82	0.82	0.38	1.60	0.15	1.90	+0.20	33.9
								-0.10
18	0.823	1/1.05	1.05	0.38	1.85	0.15	2.15	+0.20	21.4
								-0.10
16	1.31	1/1.30	1.30	0.38	2.10	0.15	2.40	+0.20	13.5
								-0.10

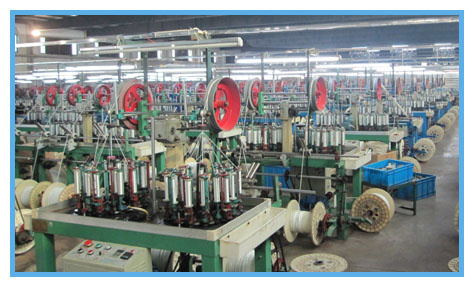

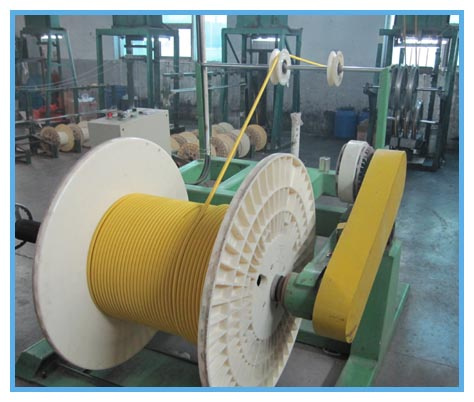

Wuxi Huacheng Cable Co., Ltd. is specialized in production of heat resistant silicone rubber wire & cable, also engaging in its R & D field, total building covers about 20000 square meters, with kinds of advanced Rubber extruding machines, Coating equipment lines, Braiding machines 1500 sets etc. After tens of year constant development, our annual output is more than 250, 000 KMS and became the famous leader and production base in domestic market.

Most of the products have passed USA UL/cUL, Germany VDE, China CCC, Japan F-MARK and ROHS Certification, completely meet with EU environment protect policy requirement, acquired ISO9001: 2000 International Quality Management & ISO14001 Environment Management Certification. All the staff exalt the tenet "Pursue truth, Honor fact, Keep Innovation", insisting on the quality policy of "Customer's wishes oriented, adopting PDCA circulation, continuously improve product and service, fully satisfying customers", based on above, our products sell well everywhere, applying to famous corporations, and even sell far to Occident, Mid-east, Southeast Asia countries and area, acquire good reputation and approval of customers.

More than hundreds of series of products are optional for customer's choice, mainly used for new energy, wind power motor, metallurgy, power, railway, home electrical appliance, lighting relative fields.
