High Temperature Resistant Silicone Rubber Wire

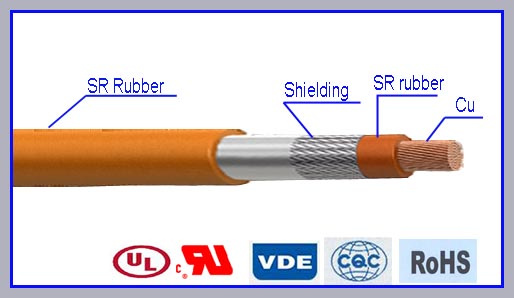

Name: High Temperature Resistant Silicone Rubber Wire
Brand: all-electronics-online.com
SKU: 672819215
Availability: InStock
Rating: 4.7 (81 reviews)

Price:	Negotiable/Meter
Min Order:	1000/Meter
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Type:	Insulated
Conductor Type:	Stranded
Application:	Underground
Conductor Material:	Copper
Insulation Material:	Silicone Rubber
Certification:	VDE
Brand:	Hoochan

Product Description

Multi-Core PVC Insulated Electric Cable

Conductor:bare copper, tinned copper
Insulator: PVC
Jacket: PVC
Rated Volt.:300/500V
Test Voltage: 2000V. 5Min
Rated Temp.:-60ºC~+105ºC

Mechnical properties

Tensile strength: ≥10.3N/mm2

Elongation at break of insulation: ≥150%

Min.Bending radius: 7×OD

Application:
Used where high flexibility is required and frequently winding and unwinding with torsional strain conditions. It is therefore a suitable connection cable for transport and conveyor systems, hoists, mining and railtrack motors. The Outer sheath makes the cable resistant to ozone and UV radiation as well as to oil, acid, and solvents. The cable may be used in dry, damp and wet rooms as well as outdoors.

Core×Size	Construction	Insulation		Jacket thickness	Cable OD		Resistance Ω/KM
Core×Size	Construction	Thickness	OD	Jacket thickness	Nominal	Toler.	Resistance Ω/KM
mm²	No./Dia (mm)	mm	mm	mm	mm	mm	Max.
2×0.5	16/0.20	0.6	2.15	0.8	5.9	±0.20	40.1
3×0.5	16/0.20	0.6	2.15	0.8	6.2	±0.20	40.1
4×0.5	16/0.20	0.6	2.15	0.8	6.8	±0.25	40.1
5×0.5	16/0.20	0.6	2.15	0.8	7.4	±0.30	40.1
6×0.5	16/0.20	0.6	2.15	0.8	7.6	±0.30	40.1
7×0.5	16/0.20	0.6	2.15	0.8	8.1	±0.30	40.1
2×0.75	24/0.20	0.6	2.35	0.8	6.3	±0.20	26.7
3×0.75	24/0.20	0.6	2.35	1.0	7.1	±0.25	26.7
4×0.75	24/0.20	0.6	2.35	1.0	7.7	±0.30	26.7
5×0.75	24/0.20	0.6	2.35	1.0	8.4	±0.30	26.7
6×0.75	24/0.20	0.6	2.35	1.0	8.6	±0.30	26.7
7×0.75	24/0.20	0.6	2.35	1.0	9.1	±0.30	26.7
2×1.0	32/0.20	0.6	2.55	1.0	7.1	±0.25	20.0
3×1.0	32/0.20	0.6	2.55	1.0	7.5	±0.30	20.0
4×1.0	32/0.20	0.6	2.55	1.0	8.2	±0.30	20.0
5×1.0	32/0.20	0.6	2.55	1.0	8.9	±0.30	20.0
6×1.0	32/0.20	0.6	2.55	1.0	9.2	±0.30	20.0
2×1.5	30/0.25	0.6	2.90	1.0	7.8	±0.30	13.7
3×1.5	30/0.25	0.6	2.90	1.0	8.3	±0.30	13.7
4×1.5	30/0.25	0.6	2.90	1.0	9.0	±0.30	13.7
5×1.5	30/0.25	0.6	2.90	1.1	10.0	±0.30	13.7
6×1.5	30/0.25	0.6	2.90	1.1	10.4	±0.30	13.7

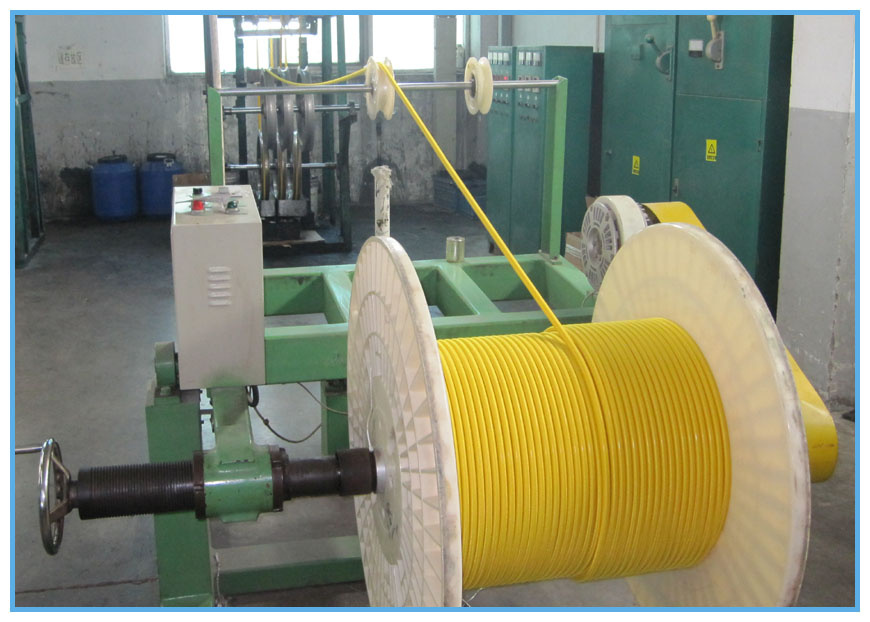

Wuxi Huacheng Cable Co., Ltd. is specialized in production of heat resistant silicone rubber wire & cable, also engaging in its R & D field, total building covers about 20000 square meters, with kinds of advanced Rubber extruding machines, Coating equipment lines, Braiding machines 1500 sets etc. After tens of year constant development, our annual output is more than 250, 000 KMS and became the famous leader and production base in domestic market.

Most of the products have passed USA UL/cUL, Germany VDE, China CCC, Japan F-MARK and ROHS Certification, completely meet with EU environment protect policy requirement, acquired ISO9001: 2000 International Quality Management & ISO14001 Environment Management Certification. All the staff exalt the tenet "Pursue truth, Honor fact, Keep Innovation", insisting on the quality policy of "Customer's wishes oriented, adopting PDCA circulation, continuously improve product and service, fully satisfying customers", based on above, our products sell well everywhere, applying to famous corporations, and even sell far to Occident, Mid-east, Southeast Asia countries and area, acquire good reputation and approval of customers.

More than hundreds of series of products are optional for customer's choice, mainly used for new energy, wind power motor, metallurgy, power, railway, home electrical appliance, lighting relative fields.
