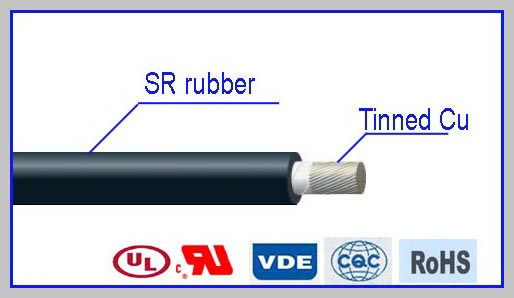

High Voltage High Temperature Resistant Silicone Rubber Cable

High Voltage High Temperature Resistant Silicone Rubber Cable
Price: Negotiablemtrs
Trade Terms: Sea, Air Shipment
Min Order: 3000mtrs
Pay Type: L/C,T/T,D/P
Prod Model: JGG3-6-10KV
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type: Insulated
Conductor Type: Stranded
Application: Underground
Conductor Material: Copper
Insulation Material: Silicone Rubber
Certification: VDE
Brand: Hoochan

Product Description

Rated Temperature: -60 C to +180 C
Voltage: 5kv-30kv
Conductors: Tin-coated copper wire
Insulator: Silicone Rubber
Used for high voltage motor leading cable, Power transmission etc.
sectionconductorinsulationwire ODconductor resistance
structureDiameternominal thickmin. thicknominalallowance20 C degree
mm²No./mmmmmmmmmmmmΩ/KM
0.7524/0.201.152.31.975.75±0.25   26.7
1.032/0.201.342.31.975.95±0.25   20
1.530/0.251.602.52.156.60±0.30  13.7
2.041/0.251.902.52.156.90±0.30  9.9
2.549/0.252.02.82.427.60±0.30  8.21
456/0.302.702.82.428.30±0.30  5.09
684/0.303.303.02.69.30±0.30  3.39
1084/0.404.603.02.610.60±0.30  1.95
16126/0.405.803.22.7812.20±0.30  1.24
25196/0.407.303.22.7813.70+0.400.795
-0.30
35276/0.408.603.42.9615.40+0.400.565
-0.30
50396/0.4010.703.42.9617.50+0.400.393
-0.30
70360/0.5012.403.63.1419.60+0.500.277
-0.30
95475/0.5014.503.63.1421.70+0.500.21
-0.30
120608/0.5016.004.03.524.00+0.500.164
-0.30
150756/0.5018.004.23.6826.40+0.600.132
-0.30
185925/0.5020.004.53.9529.00+0.600.108
-0.30
2401221/0.5023.004.84.2232.60+0.600.0817
-0.30

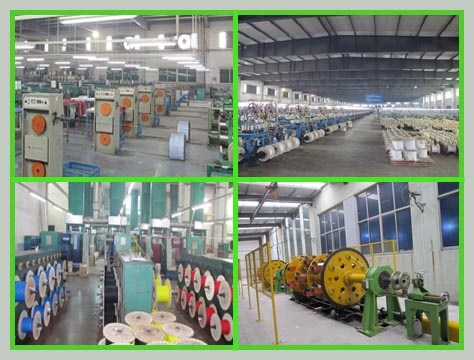

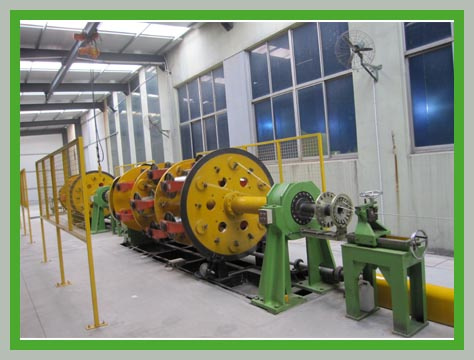

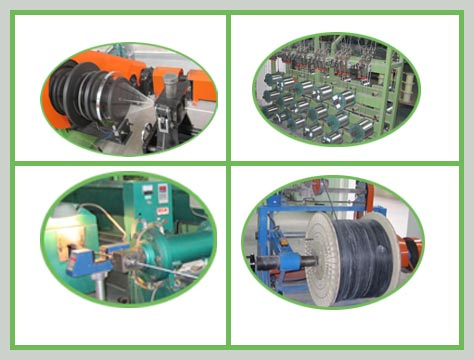

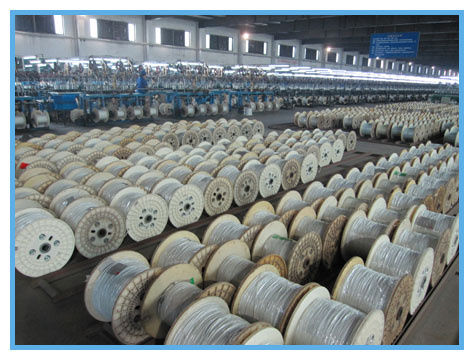

Wuxi Huacheng Cable Co., Ltd. is specialized in production of heat resistant silicone rubber wire & cable, also engaging in its R & D field, total building covers about 20000 square meters, with kinds of advanced Rubber extruding machines, Coating equipment lines, Braiding machines 1500 sets etc. After tens of year constant development, our annual output is more than 250, 000 KMS and became the famous leader and production base in domestic market.

Most of the products have passed USA UL/cUL, Germany VDE, China CCC, Japan F-MARK and ROHS Certification, completely meet with EU environment protect policy requirement, acquired ISO9001: 2000 International Quality Management & ISO14001 Environment Management Certification. All the staff exalt the tenet "Pursue truth, Honor fact, Keep Innovation", insisting on the quality policy of "Customer's wishes oriented, adopting PDCA circulation, continuously improve product and service, fully satisfying customers", based on above, our products sell well everywhere, applying to famous corporations, and even sell far to Occident, Mid-east, Southeast Asia countries and area, acquire good reputation and approval of customers.

More than hundreds of series of products are optional for customer's choice, mainly used for new energy, wind power motor, metallurgy, power, railway, home electrical appliance, lighting relative fields.
